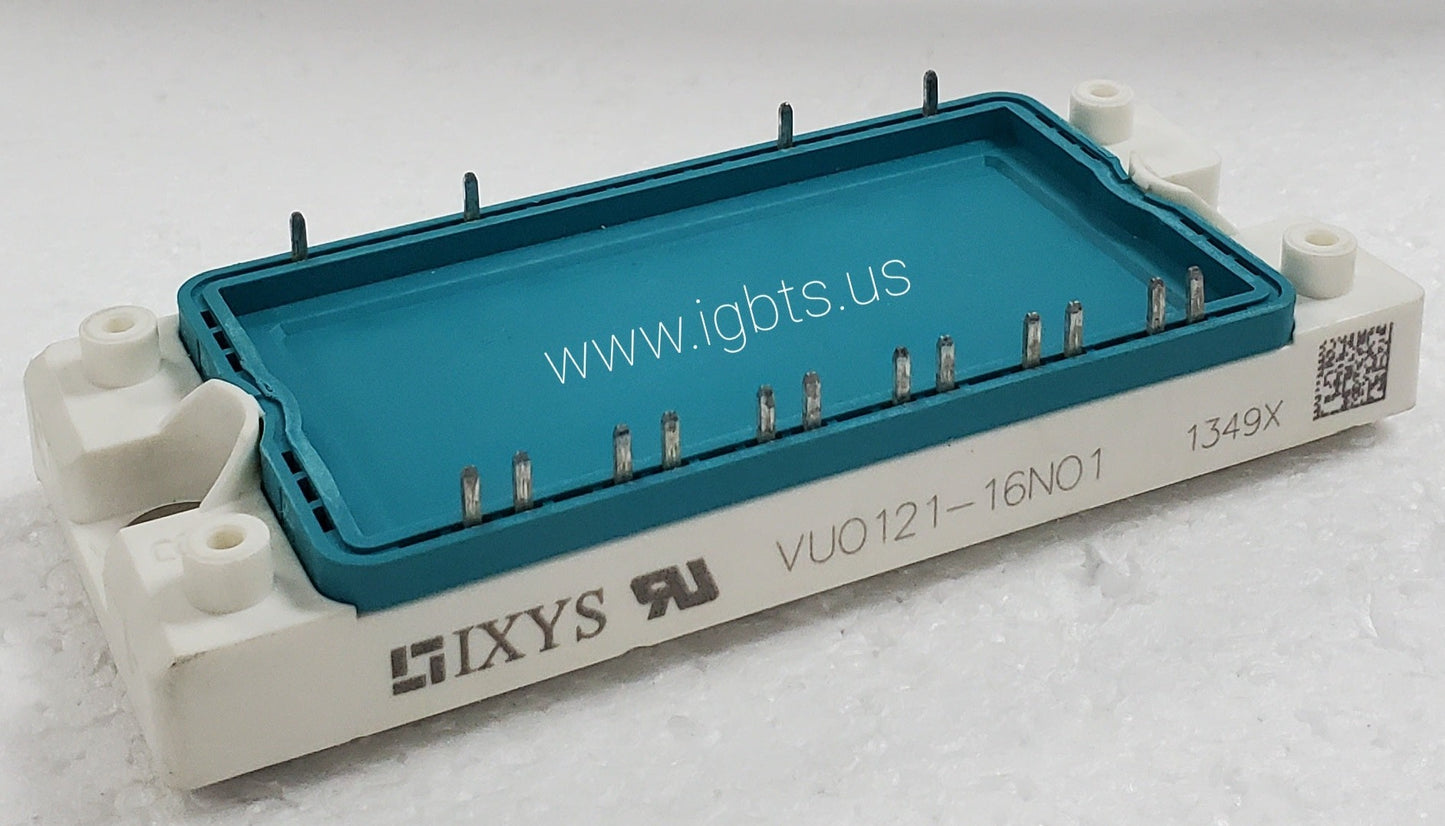

The IXYS VUO121-16NO1 is a three-phase bridge rectifier module delivering 120A average rectified output current with a 1600V repetitive peak reverse voltage (VRRM) rating. Built on IXYS's proven low-profile module platform, the VUO121-16NO1 features an electrically isolated baseplate for straightforward heatsink mounting, low forward voltage drop for minimized conduction losses, and robust thermal performance suited to continuous-duty industrial operation. This module provides a complete six-pulse bridge topology in a single package, simplifying PCB layout and mechanical integration in high-current rectifier assemblies.

The VUO121-16NO1 is widely deployed in industrial variable-speed AC drives, servo drive front-end rectifiers, uninterruptible power supplies, welding equipment, and DC bus power supplies where reliable, efficient three-phase rectification is critical. Its 1600V blocking voltage class provides the headroom required in 690VAC distribution systems and applications where line transients demand conservative voltage derating. The module also sees use in renewable energy converters, battery charging systems, and regenerative braking front ends where thermal cycling and high ambient temperatures are routine operating conditions.

Quick Reference: VUO121-16NO1

Key Features of the VUO121-16NO1:

• 120A average rectified output current (IFAV) with 1600V VRRM — suited for 690VAC three-phase mains with conservative voltage derating
• Complete six-pulse three-phase bridge rectifier topology integrated in a single isolated-base module, reducing component count and assembly complexity
• Electrically isolated copper baseplate enables direct heatsink mounting without additional isolation hardware, simplifying thermal stack design
• Low forward voltage drop (VF) minimizes conduction losses and reduces heatsink sizing requirements in continuous-duty applications
• Characterized for high repetitive peak surge current (IFSM) to withstand capacitive load inrush at startup without device degradation
• Compatible with standard IXYS VUO-series footprints, enabling drop-in replacement in existing drive and rectifier designs without PCB rework

With a factory lead time of 27 weeks for new production, procurement teams relying solely on the manufacturer's standard delivery schedule face significant exposure to line stoppages, drive repair delays, and project schedule risk. The VUO121-16NO1 is an active but long-lead part, and IXYS module families frequently appear on allocation during periods of high industrial demand. Maintenance and MRO buyers supporting installed drive fleets or managing critical spare inventories cannot afford to wait out a six-month production queue when a field failure occurs. ATI Accurate Technology maintains verified stock of the VUO121-16NO1 precisely to bridge this gap.

ATI Accurate Technology is a power semiconductor specialist stocking IGBTs, rectifier modules, thyristors, and diodes from Palmetto, Florida. Orders placed before 5PM EST ship same day. Whether you need a single module for emergency maintenance or a volume order for a scheduled build, ATI offers competitive pricing and responsive support. Contact our team at 239-734-7566 or sales@igbts.us for availability confirmation, volume pricing, and lead time details.
