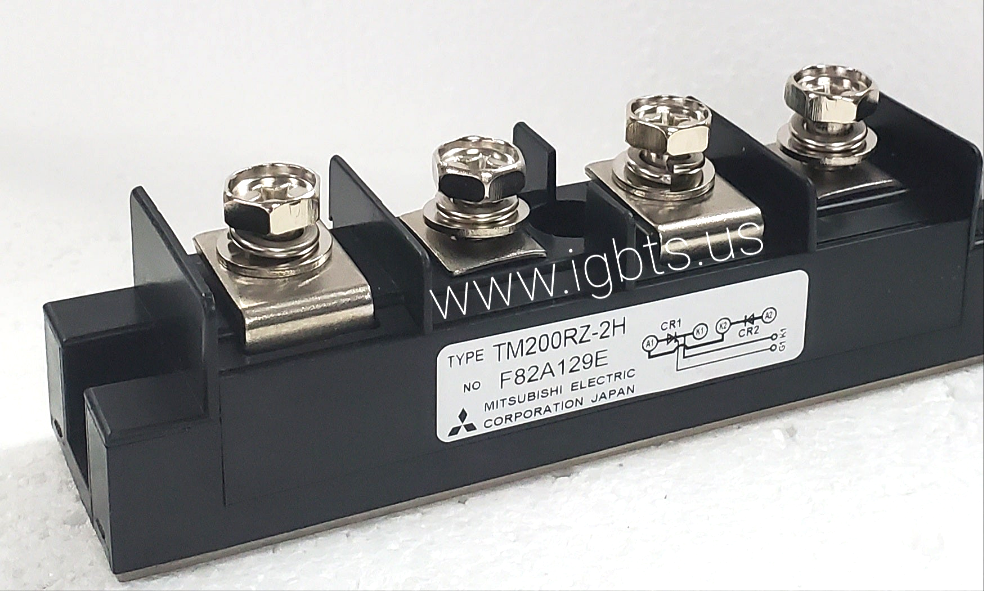

The Mitsubishi TM200RZ-2H is a robust thyristor (SCR) module engineered for high-current phase control and power switching in demanding industrial environments. As part of Mitsubishi's proven TM-series power module lineup, the TM200RZ-2H offers stable on-state characteristics, low thermal resistance, and a rugged isolated base construction that simplifies heatsink integration. This module is well-suited for engineers who require consistent gate triggering sensitivity, predictable forward voltage drop, and long-term reliability under continuous load cycling conditions common in industrial power electronics.

The TM200RZ-2H sees broad deployment across industrial AC and DC motor drive systems, soft-start controllers, power regulators, and three-phase rectifier bridges. It is commonly specified in steel mill auxiliary drives, crane and hoist control panels, plastic extrusion equipment, and large HVAC variable speed systems. Its thermal and electrical characteristics also make it appropriate for uninterruptible power supplies, battery chargers, and electrochemical process rectifiers where consistent thyristor performance over extended duty cycles is non-negotiable for uptime and process quality.

Quick Reference: TM200RZ-2H

Key Features of the TM200RZ-2H:

• 200A average on-state current rating supporting high-power continuous and pulsed load applications
• 1200V repetitive peak off-state voltage (VDRM) providing sufficient blocking margin for 480V and 600V AC line environments
• Low thermal resistance junction-to-case (Rth j-c) enabling efficient heat transfer to external heatsinks and reducing derating requirements
• Isolated copper base plate construction allowing direct mounting to common heatsink assemblies without additional electrical isolation hardware
• Gate trigger characteristics optimized for compatibility with standard SCR firing boards and industrial gate drive circuits
• Compact TM-series module footprint offering a drop-in replacement path for aging or failed thyristors in legacy drive and rectifier cabinets

With a factory lead time of 99 weeks for new production, the Mitsubishi TM200RZ-2H presents a serious procurement challenge for facilities managing unplanned outages or building MRO inventory against future failures. Mitsubishi's industrial thyristor modules are increasingly difficult to source through standard distribution channels as production runs consolidate around newer platforms. Procurement teams supporting legacy drive systems, older rectifier cabinets, or long-lifecycle capital equipment cannot afford to wait nearly two years for factory fulfillment — making pre-stocked specialty distributors the only practical sourcing solution for maintaining continuity of operations.

ATI Accurate Technology is a power semiconductor specialist based in Palmetto, Florida, stocking hard-to-find and long-lead-time devices including the TM200RZ-2H. Orders placed before 5PM EST ship same day. Contact our team directly for real-time availability, datasheets, and volume pricing: call 239-734-7566 or email sales@igbts.us. ATI serves MRO, OEM, and repair depot customers across North America with verified new OEM product and responsive technical support.
