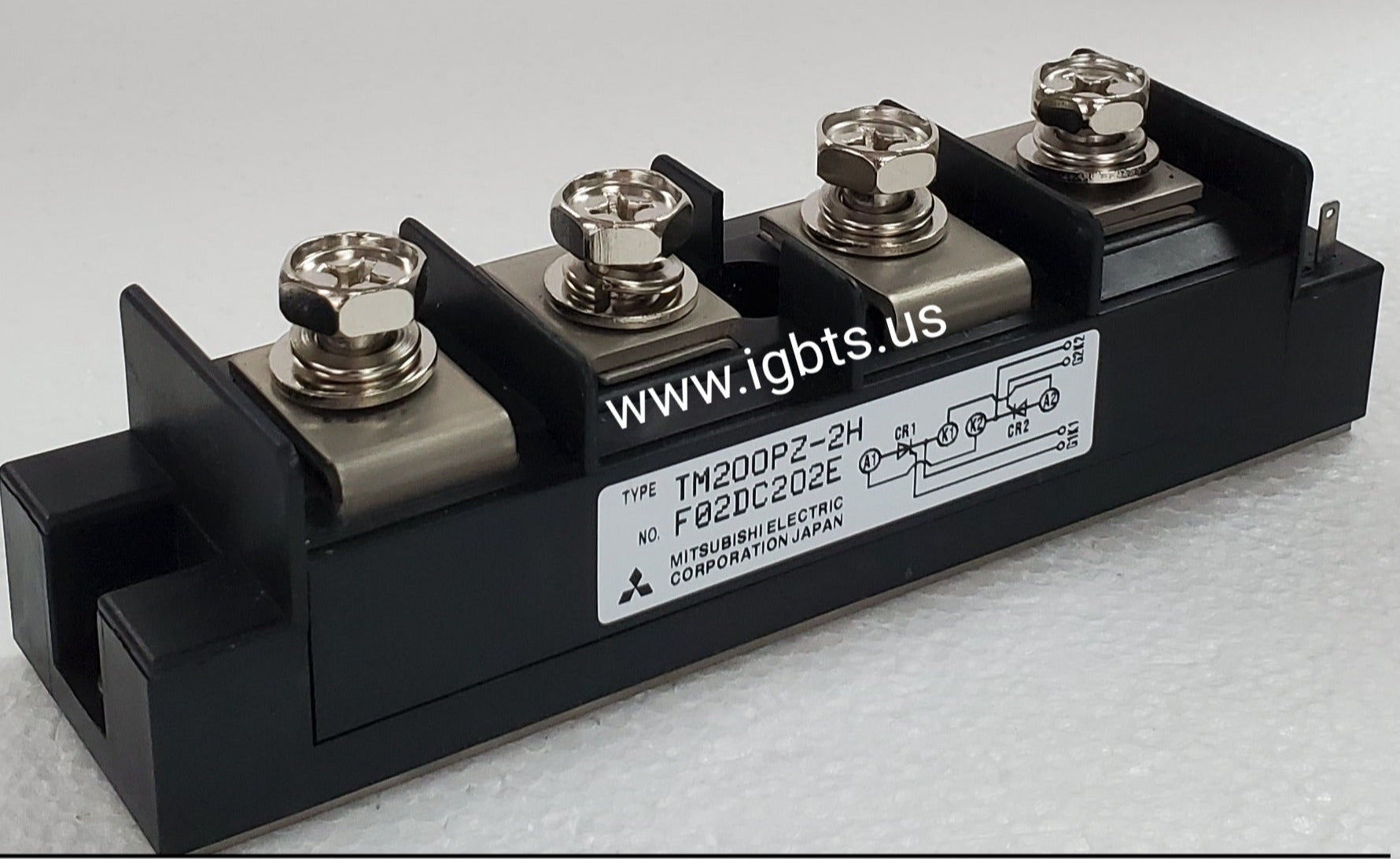

The Mitsubishi TM200PZ-2H is a robust thyristor module engineered for demanding power control applications where reliable gate-triggered switching and high current handling are essential. Built to Mitsubishi's established power semiconductor standards, this module delivers stable forward conduction characteristics, low on-state voltage drop, and consistent triggering sensitivity across a wide operating temperature range. Its compact module packaging simplifies heat sink mounting and system integration, making it a dependable solution for designers and maintenance teams working with industrial-grade power conversion equipment.

The TM200PZ-2H is well-suited for AC power controllers, soft starters, DC motor drives, resistance heating systems, and phase-angle firing circuits found throughout manufacturing, metals processing, oil and gas, and heavy industrial automation. Its thyristor configuration supports controlled rectification and AC switching in both single-phase and three-phase converter topologies. Engineers specifying replacements for legacy drive cabinets or retrofitting aging power stages will find the electrical and mechanical characteristics of this module directly applicable to a wide range of installed base equipment.

Quick Reference: TM200PZ-2H

Key Features of the TM200PZ-2H:

• 200A average on-state current rating suitable for high-power phase control and rectifier circuits
• 1200V repetitive peak off-state voltage (VDRM) providing ample margin in 480V and 600V AC line applications
• Low gate trigger current and voltage requirements for compatibility with standard firing card interfaces
• Low thermal resistance junction-to-case for efficient heat dissipation with standard flat-base heat sinks
• Isolated base plate construction enabling multiple modules to share a common heat sink without additional insulation hardware
• Mitsubishi OEM construction ensuring dimensional and electrical interchangeability with original equipment specifications

With a factory lead time of 33 weeks for new production, the TM200PZ-2H presents a genuine procurement risk for facilities that cannot afford extended downtime or protracted project delays. OEM availability for Mitsubishi thyristor modules in this class has tightened significantly, and many end-users are finding authorized distribution channels unable to fulfill urgent requests without long waits. ATI Accurate Technology maintains independent stock of hard-to-find and long-lead-time power semiconductors specifically to bridge this gap, supplying verified new OEM parts when standard channels fall short.

ATI Accurate Technology is located in Palmetto, Florida, and stocks the TM200PZ-2H for immediate fulfillment. Orders placed before 5PM EST ship same day. Whether you need a single unit for emergency maintenance or a larger quantity for a scheduled overhaul or OEM build, ATI offers competitive volume pricing and responsive service. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss application requirements.
