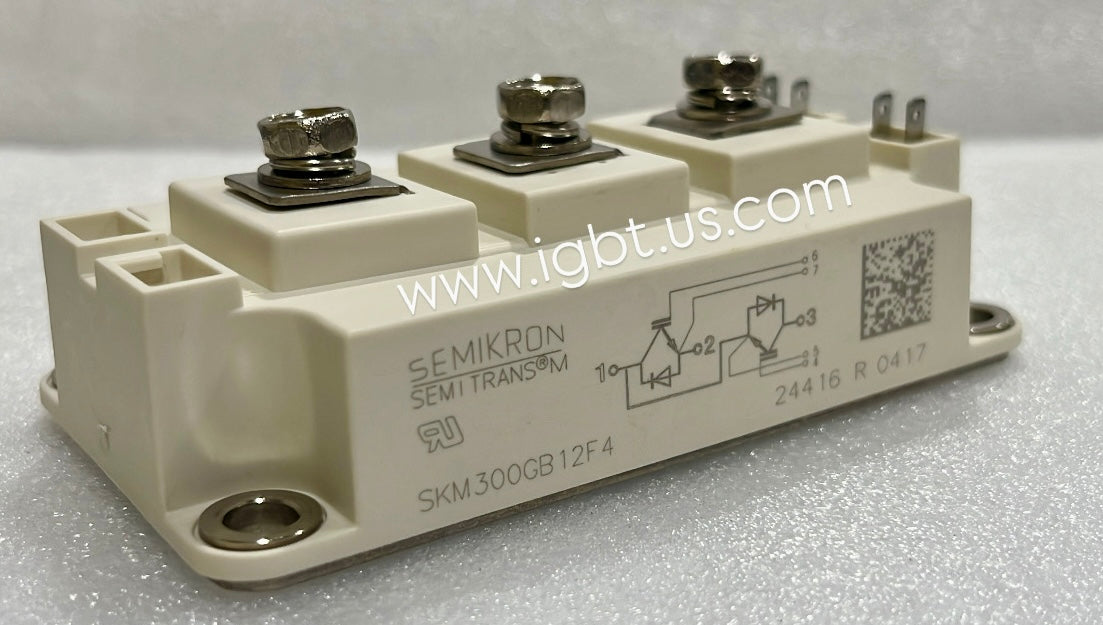

The SKM300GB12F4-SEMIKRON is a 300A, 1200V IGBT power module built on Semikron's proven F4 platform, offering a dual (half-bridge) topology with integrated fast-recovery freewheeling diodes. This module is engineered for high-efficiency, high-frequency switching in hard-switching and soft-switching inverter topologies. The F4 package provides an industry-standard footprint with optimized thermal resistance and low-inductance internal bussing, making it a dependable choice for engineers who require predictable performance under continuous and peak load conditions in thermally demanding environments.

The SKM300GB12F4-SEMIKRON is widely deployed in AC motor drives, servo amplifiers, industrial UPS and energy storage inverters, induction heating generators, welding power supplies, and rail traction auxiliaries. Its 1200V blocking voltage provides the necessary headroom for 480V and 690V AC bus applications, while the 300A current rating supports high-power spindle drives and crane hoists. The integrated freewheeling diodes reduce BOM complexity and improve switching symmetry, which is critical in three-phase inverter legs where diode recovery characteristics directly impact EMI and efficiency.

Quick Reference: SKM300GB12F4-SEMIKRON

Key Features of the SKM300GB12F4-SEMIKRON:

• 1200V VCES blocking voltage with 300A continuous collector current rating, suitable for 480V and 690V three-phase drive architectures
• Dual IGBT half-bridge topology with co-packaged fast-recovery freewheeling diodes for simplified inverter leg design
• Low VCEsat characteristics reduce conduction losses at high duty cycles, improving thermal efficiency in continuous-duty industrial drive applications
• Industry-standard F4 package footprint with isolated baseplate for direct heatsink mounting and compatibility with legacy drive platforms
• High short-circuit withstand capability (SCSOA) supports robust gate drive protection schemes in fault-prone industrial environments
• Optimized for switching frequencies from 2kHz to 20kHz, covering the full range of industrial PWM inverter and resonant converter requirements

The SKM300GB12F4-SEMIKRON is frequently classified as a long-lead-time or allocation-constrained component, particularly during periods of elevated demand for industrial drive and renewable energy equipment. OEM production line shutdowns and aftermarket repair programs are especially vulnerable to these supply gaps. ATI Accurate Technology maintains independent distributor inventory of this and comparable Semikron IGBT modules, enabling procurement teams to source verified new OEM parts without being subject to manufacturer lead times that can stretch from 26 to 52 weeks.

ATI Accurate Technology is headquartered in Palmetto, Florida and specializes in power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Orders placed before 5PM EST ship same day. For pricing, availability, or volume purchasing inquiries on the SKM300GB12F4-SEMIKRON, contact our team directly at 239-734-7566 or sales@igbts.us. Volume pricing is available for qualified OEM and MRO accounts.
