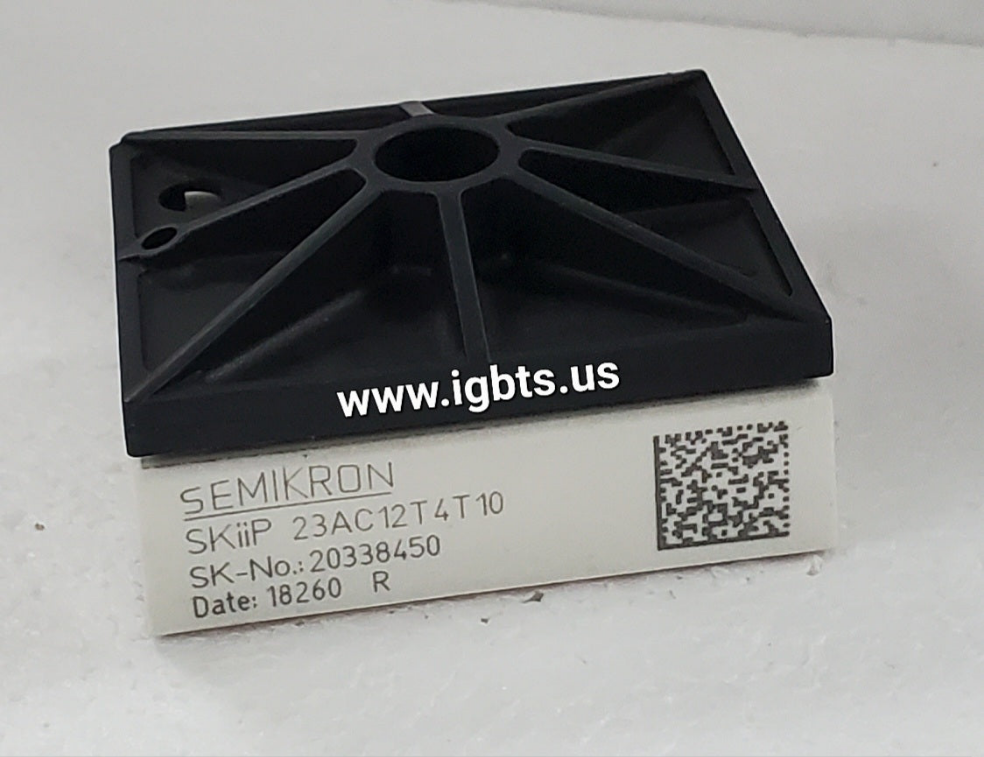

The SKIIP23AC12T4T10 is a SEMIKRON SKIIP-series intelligent IGBT power module combining a 23A, 1200V IGBT switch with integrated gate drive electronics, current sensing, and comprehensive protection circuitry in a single package. This level of integration reduces external component count, simplifies PCB layout, and improves system reliability. The SKIIP topology is well-proven in demanding industrial environments where thermal performance, switching precision, and protection response time are non-negotiable design requirements.

This module is widely specified in industrial variable-frequency drives (VFDs), servo amplifiers, UPS systems, solar inverters, and welding power supplies. Its on-board protection — including overcurrent, short-circuit, overtemperature, and undervoltage lockout — makes it a preferred choice for OEM equipment designers and field replacement in legacy drive platforms. The compact SKIIP form factor supports high power density designs across a broad range of industrial automation and energy conversion applications.

Quick Reference: SKIIP23AC12T4T10

Key Features of the SKIIP23AC12T4T10:

• 1200V collector-emitter voltage (V_CE) with 23A continuous collector current rating for medium-power inverter stages
• Integrated gate driver eliminates the need for external isolated drive circuitry, reducing BOM complexity and layout risk
• On-board short-circuit protection with fast fault response — critical for protecting drive hardware in fault conditions
• Integrated NTC temperature sensor and overtemperature shutdown for real-time thermal monitoring and system protection
• Undervoltage lockout (UVLO) on the gate drive supply prevents destructive partial-saturation switching events
• Optimized IGBT chip technology delivers low V_CE(sat) and controlled switching losses for high-efficiency operation across the load range

New production of the SKIIP23AC12T4T10 carries a factory lead time of approximately 99 weeks — nearly two years — making open-market procurement essential for any project that cannot wait on standard factory scheduling. For OEMs managing EOL transitions, maintenance teams supporting installed legacy equipment, or procurement professionals building safety stock, sourcing from a specialized distributor with access to available inventory is often the only viable path to keeping critical systems operational on schedule.

ATI Accurate Technology is headquartered in Palmetto, Florida and specializes in exactly these situations. We stock hard-to-find, long-lead-time, and obsolete SEMIKRON IGBT modules and power semiconductors. Orders received before 5PM EST ship same day. For volume pricing, availability confirmation, or technical questions, call us at 239-734-7566 or email sales@igbts.us — our team is ready to help you source the SKIIP23AC12T4T10 fast.
