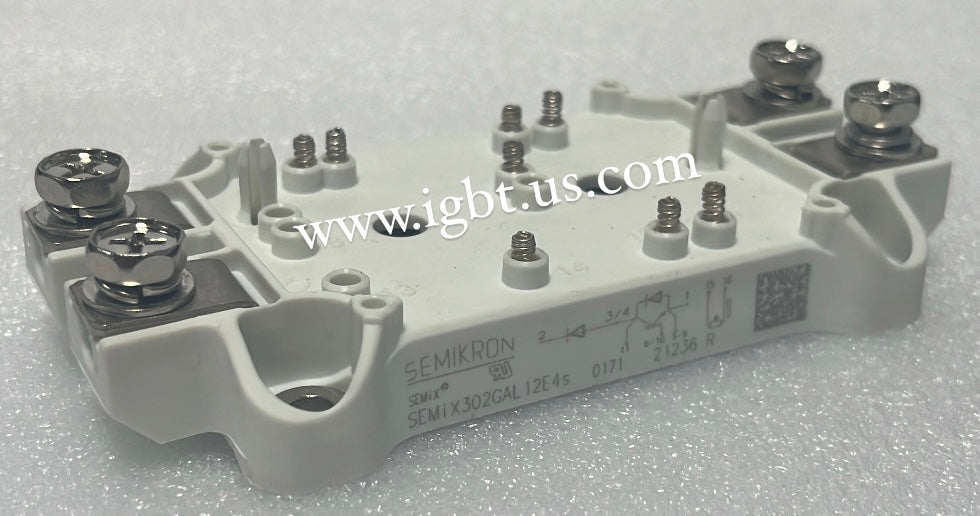

The SEMIX302GAL12E4S-SEMIKRON is a SEMIKRON SEMiX platform IGBT power module rated for approximately 300A collector current and 1200V blocking voltage. Built on SEMIKRON's well-established SEMiX package format, this module integrates a half-bridge IGBT configuration with optimized chip technology for low saturation voltage, reduced switching losses, and high power density. The robust baseplate design and low thermal resistance make it well suited for continuous high-power operation in thermally demanding environments. This is a new OEM component available through ATI Accurate Technology with same-day shipping capability.

The SEMIX302GAL12E4S-SEMIKRON is widely deployed in industrial variable frequency drives, servo amplifiers, UPS systems, solar inverters, and induction heating equipment. Its 1200V voltage class and 300A current rating address mid-to-high power converter stages where switching efficiency and thermal management are critical design parameters. The SEMiX package format simplifies mechanical integration into standard heatsink assemblies and is compatible with SEMIKRON SKYPER and third-party gate drive solutions, making this module a practical choice for both OEM builds and field replacement maintenance scenarios.

Quick Reference: SEMIX302GAL12E4S-SEMIKRON

Key Features of the SEMIX302GAL12E4S-SEMIKRON:

• 1200V VCES blocking voltage with approximately 300A continuous DC collector current rating for high-power converter stages
• SEMiX platform half-bridge topology enabling compact, high-density inverter leg design with standardized mechanical footprint
• Low VCEsat and optimized switching characteristics reduce conduction and switching losses across the full operating range
• Low junction-to-case thermal resistance supports high continuous power dissipation with proper heatsink mounting
• Integrated freewheeling diodes with fast recovery characteristics minimize reverse recovery losses in hard-switching PWM applications
• Compatible with standard SEMIKRON SKYPER gate drive units and isolated third-party drivers for flexible system integration

SEMIKRON SEMiX series modules are subject to long lead times and periodic product lifecycle transitions, making open-market inventory critical for maintenance teams and system integrators who cannot wait on factory allocation. Whether you are replacing a failed module in a production drive, building safety stock for a critical process line, or sourcing components for a legacy system that has passed its OEM support window, having a reliable distributor with verified new OEM inventory is essential. ATI Accurate Technology maintains stock of hard-to-find SEMIKRON modules specifically to support these procurement challenges without compromising on part authenticity or condition.

ATI Accurate Technology is a power semiconductor specialist based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules for industrial and commercial customers nationwide. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference support, or application questions: call 239-734-7566 or email sales@igbts.us. We are ready to help you keep your equipment running.
