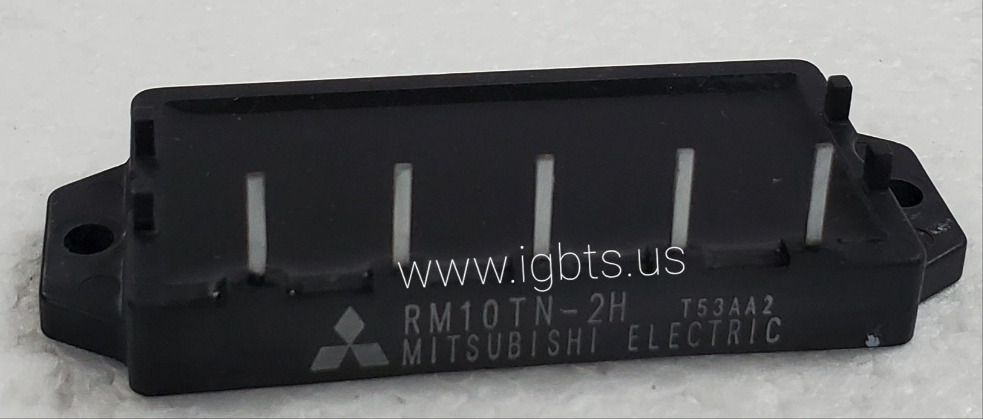

The Mitsubishi RM10TN-2H is a diode/thyristor (SCR) combination power module engineered for high-reliability operation in industrial AC-DC conversion, motor control, and power regulation circuits. As a hybrid module integrating both diode and thyristor elements, it simplifies PCB layout and thermal management while maintaining the robust electrical characteristics expected of Mitsubishi's RM-series semiconductor modules. For engineers replacing failed components or building new drive systems, the RM10TN-2H represents a proven, manufacturer-grade solution with well-documented performance parameters suitable for demanding operational environments.

The RM10TN-2H sees broad deployment across industrial and commercial power electronics platforms. Typical applications include AC motor soft starters, DC motor drives, uninterruptible power supplies (UPS), battery chargers, welding power supplies, and phase-controlled rectifier assemblies. Its diode/thyristor topology makes it especially well-suited for half-controlled bridge rectifier stages where precise gating control over a portion of the bridge is required. Process automation equipment, crane and hoist controls, and industrial heating systems are among the end-use environments where this module consistently performs under continuous-duty load cycling.

Quick Reference: RM10TN-2H

Key Features of the RM10TN-2H:

• Hybrid diode/thyristor topology supports half-controlled bridge rectifier configurations without discrete component assembly
• Mitsubishi RM-series construction provides low thermal resistance junction-to-case for efficient heat dissipation under continuous load
• Isolated base plate design allows direct heatsink mounting, simplifying thermal interface in standard drive enclosures
• SCR element supports gate-triggered phase control for precise output voltage regulation in rectifier and soft-start circuits
• Compact module form factor reduces PCB real estate and interconnect inductance compared to discrete diode and SCR assemblies
• New OEM parts sourced through ATI ensure full parametric compliance — no remarked or counterfeit risk

With a current factory lead time of 41 weeks from Mitsubishi, procurement teams supporting active production lines or urgent field repairs cannot afford to wait on new factory orders. The RM10TN-2H has also aged into a long-lead and increasingly hard-to-find status as drive platforms it supports move through extended service lifecycles. Whether you are maintaining legacy equipment, building safety stock, or kitting a repair job, sourcing from a stocking distributor eliminates schedule risk and keeps equipment uptime on track. ATI Accurate Technology maintains verified inventory of the RM10TN-2H ready to ship today.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and long-lead-time parts. Same-day shipping is available on orders placed before 5PM EST. Contact our team for volume pricing, cross-reference support, or application questions. Call 239-734-7566 or email sales@igbts.us.
