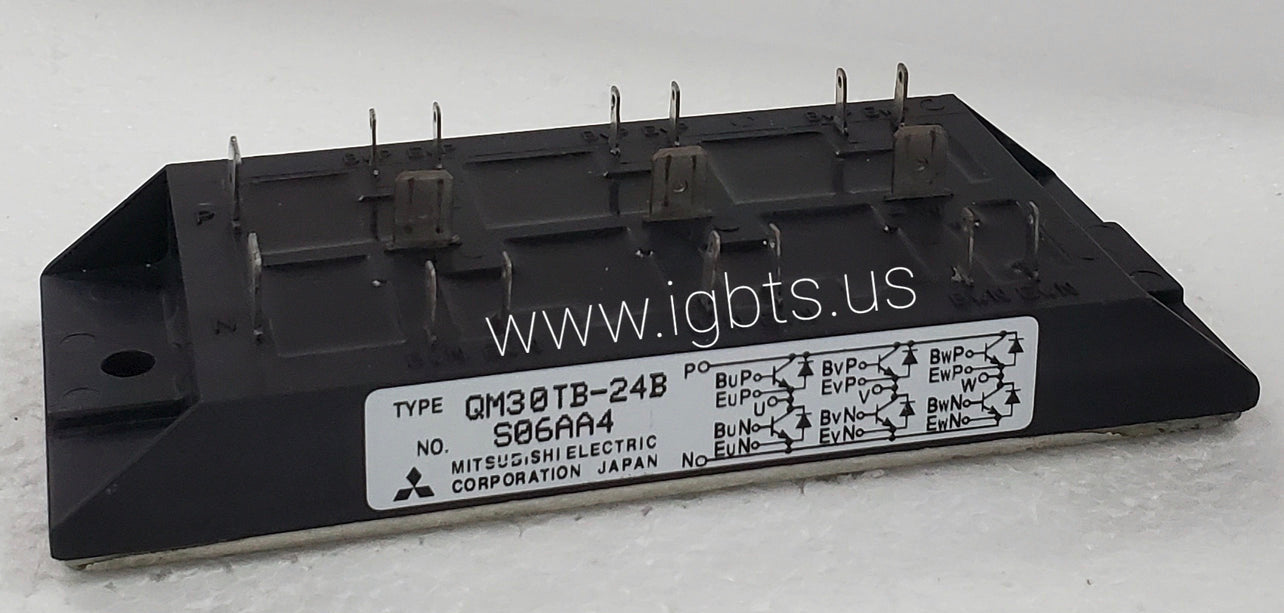

The Mitsubishi QM30TB-24B is a 1200V, 30A IGBT module engineered for precision switching performance in medium-power industrial applications. Built to Mitsubishi's established power module standards, this device integrates insulated gate bipolar transistor technology to deliver a low on-state voltage drop, reduced switching losses, and stable operation across a wide temperature range. The QM30TB-24B is a proven choice for design engineers and maintenance teams who require dependable performance in high-frequency switching environments without compromising thermal management or efficiency.

The QM30TB-24B is widely deployed in industrial AC and DC motor drive systems, variable frequency drives (VFDs), uninterruptible power supplies (UPS), induction heating equipment, and general-purpose inverter platforms. Its 1200V blocking voltage and 30A continuous collector current make it well-suited for three-phase inverter stages in factory automation, HVAC drive systems, welding equipment, and elevator drive controls. Maintenance engineers replacing failed modules in legacy drive platforms rely on the QM30TB-24B as a direct, drop-in compatible solution within the Mitsubishi power module lineup.

Quick Reference: QM30TB-24B

Key Features of the QM30TB-24B:

• 1200V collector-emitter voltage (VCES) suitable for 480V and 600V AC line-powered inverter topologies
• 30A continuous collector current rating with high peak current capability for demanding load transients
• Low saturation voltage (VCE(sat)) minimizes conduction losses and reduces heat sink thermal requirements
• Integrated freewheeling diodes provide commutation protection without requiring external anti-parallel diodes
• Isolated baseplate construction rated for high-voltage isolation, simplifying mounting on grounded heat sinks
• Compatible with standard Mitsubishi QB/QM-series gate drive circuits, easing replacement in existing designs

The QM30TB-24B carries a current factory production lead time of approximately 33 weeks — a significant challenge for facilities facing unplanned downtime or project timelines that cannot accommodate a multi-month wait. Obsolescence risk is a real concern with legacy Mitsubishi module series, and when production allocations tighten, distributor stock becomes the only viable path to a fast repair. Procurement professionals sourcing replacement units for MRO inventory programs or OEM service depots benefit from working with a stocking distributor rather than relying solely on factory order pipelines that offer no flexibility in schedule.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules — including hard-to-find and long-lead-time parts like the QM30TB-24B. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or expedited sourcing. Call 239-734-7566 or email sales@igbts.us.
