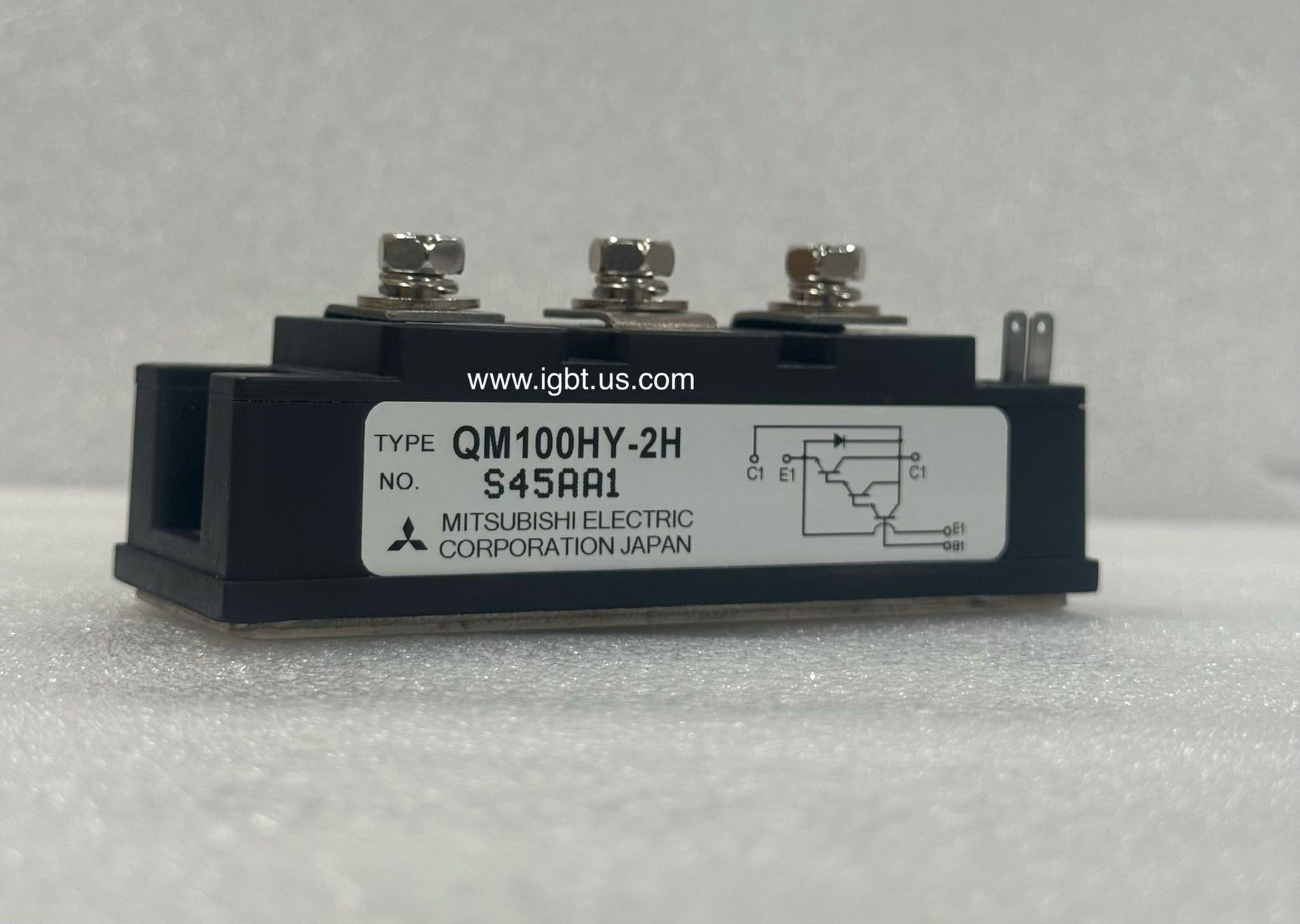

The Mitsubishi QM100HY-2H is a power IGBT module engineered for high-efficiency switching in industrial inverter and motor drive systems. Built to Mitsubishi's established power module standards, this device delivers consistent gate control characteristics, low saturation voltage, and stable thermal cycling performance under continuous load conditions. Its compact module form factor simplifies integration into existing drive platforms, making it a trusted replacement or upgrade component for OEM and MRO applications where performance consistency and long-term reliability are non-negotiable requirements.

The QM100HY-2H sees broad deployment across AC and DC motor drive systems, industrial servo amplifiers, uninterruptible power supplies, induction heating equipment, and general-purpose inverter platforms. Maintenance engineers across manufacturing, oil and gas, HVAC, and process automation sectors rely on this module as a proven switching element in both new equipment designs and legacy system repairs. Its standardized pinout and module dimensions facilitate straightforward drop-in replacement in existing power stage assemblies, reducing downtime during critical maintenance windows.

Quick Reference: QM100HY-2H

Key Features of the QM100HY-2H:

• 100A continuous collector current rating suitable for mid-to-high power industrial drive stages
• 600V blocking voltage providing adequate margin for 380–480VAC three-phase input applications
• Low V_CE(sat) characteristic minimizing conduction losses and reducing module junction temperatures under full load
• Integrated free-wheeling diodes optimized for fast recovery, reducing switching losses in PWM inverter topologies
• Isolated baseplate construction enabling direct mounting to heatsink with standard thermal interface materials
• Gate drive compatible with standard IGBT driver ICs, simplifying retrofit and replacement in existing control architectures

With a current factory lead time of 35 weeks on new production, procurement teams sourcing the QM100HY-2H for production schedules or urgent MRO needs face significant risk of line-down exposure when relying solely on the factory pipeline. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time IGBT modules specifically to bridge this gap. Whether you are managing a planned maintenance outage, an emergency equipment failure, or building safety stock for a critical drive system, having a stocked distributor in your supply chain eliminates the lead time variable entirely.

ATI Accurate Technology is located in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules for industrial power applications. Orders placed before 5PM EST ship same day. Contact our team directly for real-time availability, volume pricing, and application support: call 239-734-7566 or email sales@igbts.us. We serve OEMs, MRO buyers, and independent service organizations nationwide.
