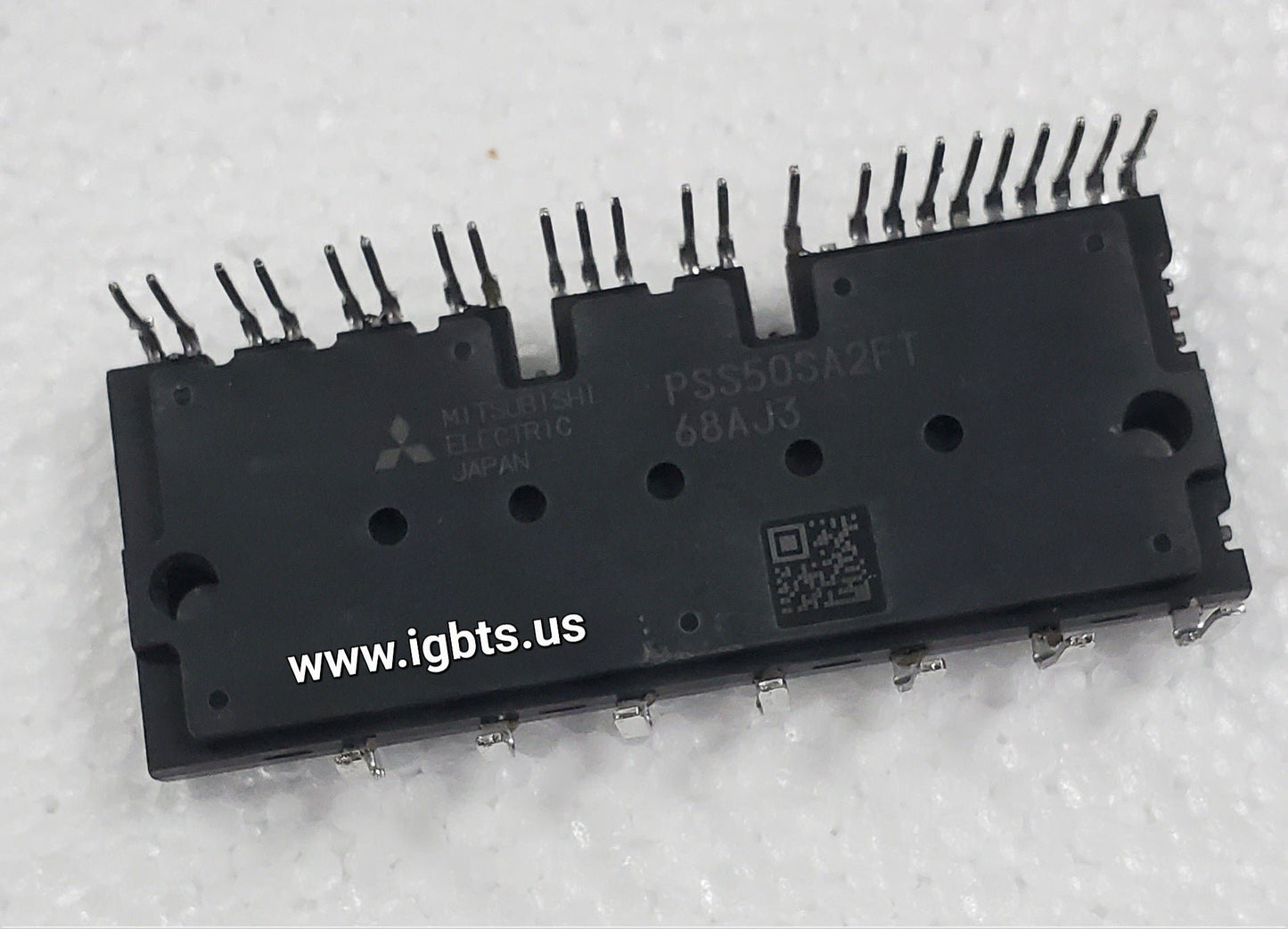

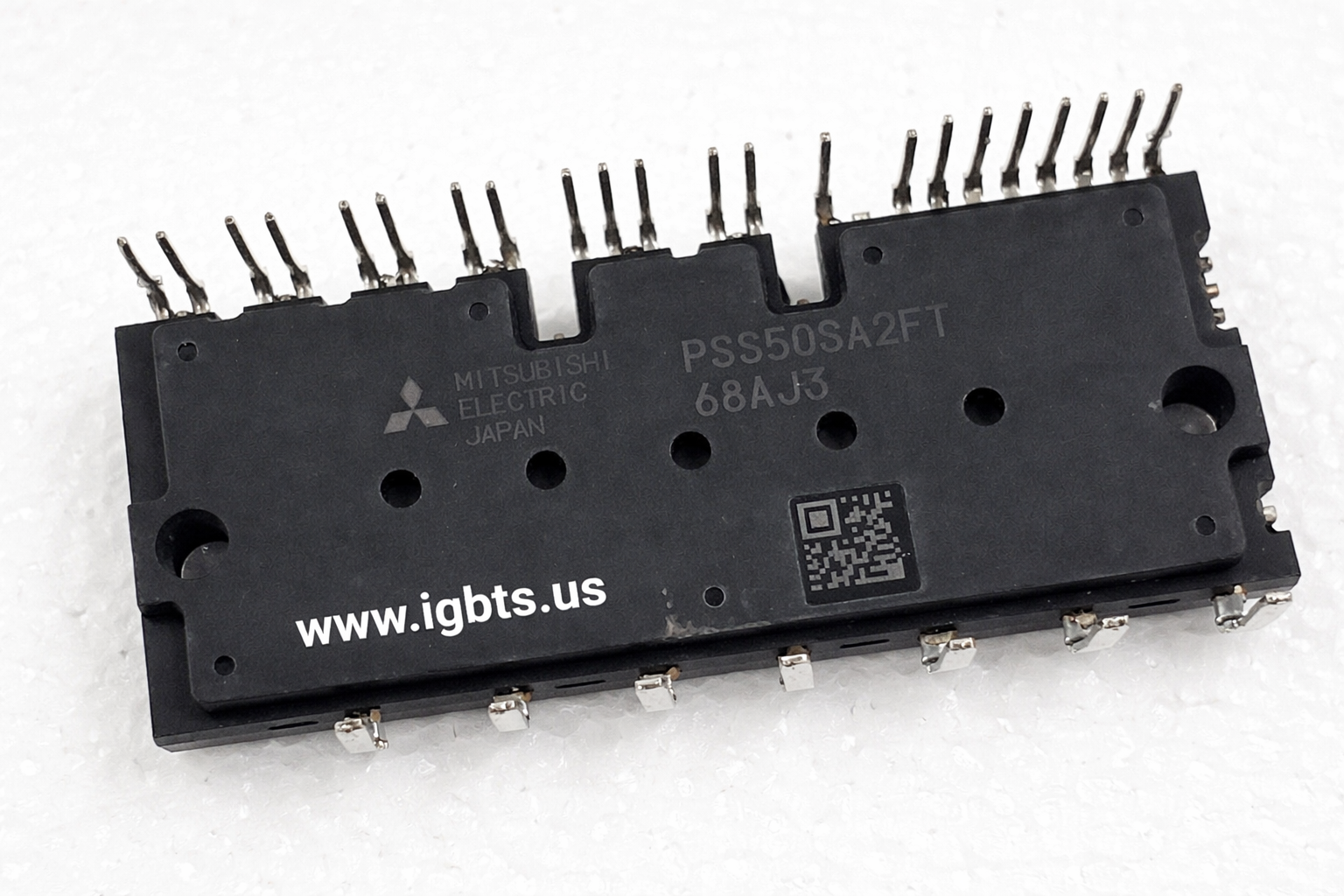

The Mitsubishi PSS50SA2FT is a fully integrated Intelligent Power Module combining high-speed IGBT switching elements with onboard gate drive circuitry and comprehensive protection functions in a single, compact package. Rated at 50A, this IPM is engineered to reduce system-level complexity, minimize external component count, and improve overall converter reliability. Its integrated protection logic responds to fault conditions in microseconds, making it well-suited for demanding industrial power conversion environments where uptime and thermal management are critical design priorities.

The PSS50SA2FT sees widespread deployment in AC variable-frequency drives (VFDs), servo motor amplifiers, uninterruptible power supplies (UPS), and industrial inverter platforms. Its integrated architecture is particularly valued in OEM equipment designs where board space is constrained and fault-response time directly impacts machinery protection. Industries including CNC machining, HVAC, robotics, material handling, and renewable energy inverter systems routinely specify Mitsubishi IPMs of this class for their combination of switching performance, protection depth, and long-term field reliability.

Quick Reference: PSS50SA2FT

Key Features of the PSS50SA2FT:

• Integrated gate drive circuitry eliminates the need for external isolated gate drivers, reducing BOM complexity and PCB footprint
• Built-in protection functions including overcurrent (OC), short-circuit (SC), undervoltage lockout (UVLO), and overtemperature (OT) with fault output signaling
• High-speed IGBT switching elements optimized for low switching losses and reduced EMI in PWM inverter topologies
• Compact, industry-standard IPM package designed for straightforward heatsink mounting and thermal management integration
• Bootstrap power supply compatible — simplifies auxiliary power design in cost-sensitive inverter applications
• Fault output pin provides real-time protection status to the system controller, enabling rapid fault logging and safe shutdown sequencing

With a factory lead time of 99 weeks on new production, the PSS50SA2FT presents a serious procurement risk for repair operations, spare parts programs, and production line continuity. Mitsubishi IPMs in the PSS-series are heavily embedded in legacy VFD and servo drive platforms that remain in active service worldwide, making field availability essential. Whether you're maintaining aging industrial equipment, building a strategic spare parts inventory, or supporting a legacy OEM platform, sourcing from distributor stock is the only reliable path to avoiding extended downtime.

ATI Accurate Technology stocks the PSS50SA2FT as new OEM product, shipped same-day on orders placed before 5PM EST from our Palmetto, Florida facility. We specialize in hard-to-find, long-lead-time, and obsolete power semiconductors including IGBTs, thyristors, diodes, and intelligent power modules. Volume pricing is available — contact our team at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss your ongoing procurement requirements.
