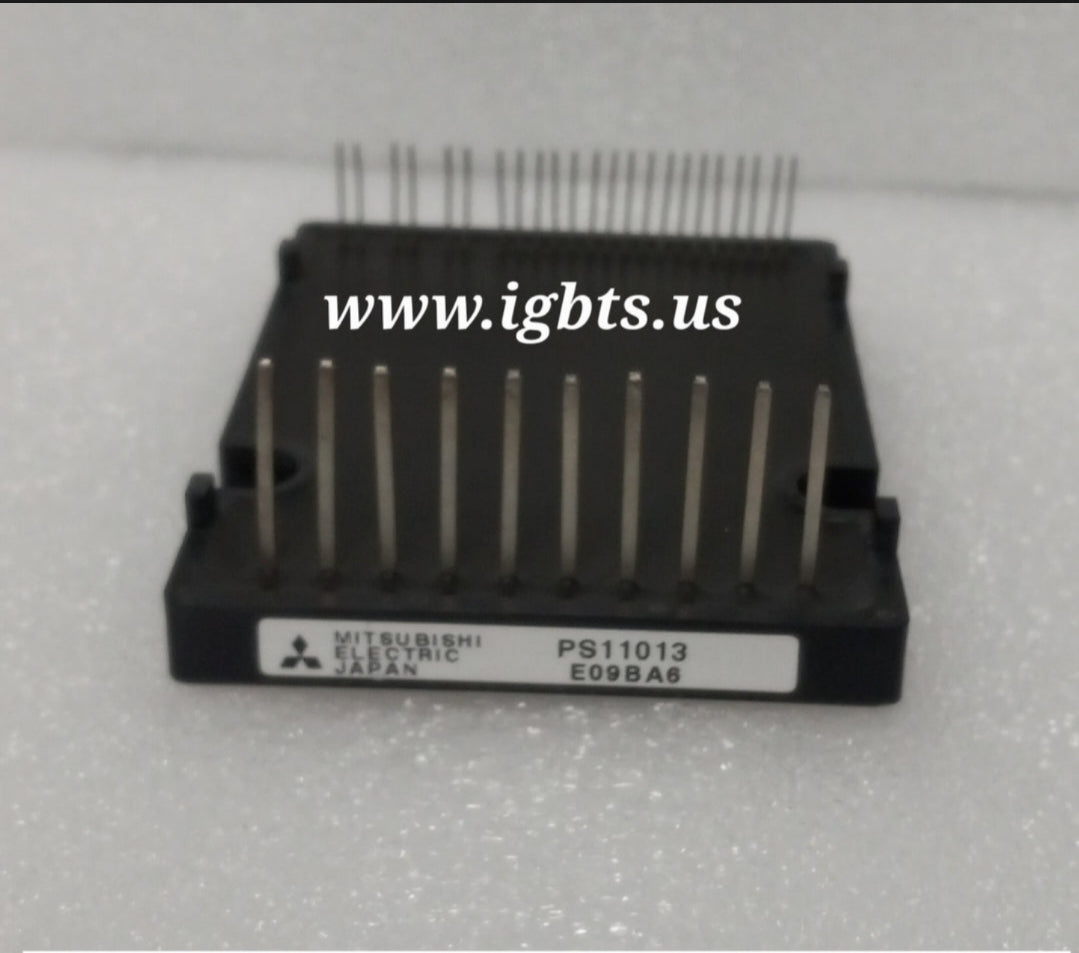

The Mitsubishi PS11013 is an Intelligent Power Module (IPM) that integrates IGBT switching devices with onboard gate drive, fault protection, and bootstrap power supply circuits into a single, application-ready package. This level of integration reduces external component count, simplifies PCB layout, and shortens design cycles for engineers working on compact power conversion systems. The PS11013 is engineered to deliver consistent switching performance, low thermal resistance, and robust protection against overcurrent, overtemperature, and undervoltage lockout conditions — making it a dependable choice for demanding industrial and commercial power electronics designs.

The PS11013 is well suited for three-phase AC motor drives, variable frequency drives (VFDs), servo amplifiers, and general-purpose inverter platforms found in industrial automation, HVAC systems, pumps, compressors, and conveyor equipment. Its integrated protection logic reduces the risk of catastrophic failure during fault events, a critical advantage in continuous-duty industrial environments where unplanned downtime carries significant operational cost. OEMs and field service teams maintaining legacy drive platforms rely on this module to restore equipment to service quickly without redesigning the power stage.

Quick Reference: PS11013

Key Features of the PS11013:

• Integrated IGBT power stage with built-in gate drive circuitry, eliminating the need for discrete gate resistors and isolated driver ICs
• Onboard overcurrent protection (OCP) with fault output signal for system-level fault management
• Undervoltage lockout (UVLO) on both high- and low-side gate drives to prevent shoot-through during supply transients
• Overtemperature protection (OTP) via internal NTC or thermal shutdown circuit to safeguard the module during thermal stress events
• Bootstrap power supply circuit integrated for simplified high-side drive without an isolated DC-DC converter
• Compact, application-optimized package designed for direct mounting to heatsink with low thermal resistance junction-to-case

With a factory lead time of 35 weeks on new production, procurement teams sourcing the PS11013 for active production lines or emergency field repairs cannot afford to wait. Drive boards utilizing this IPM are often found in equipment that has been in service for years, and Mitsubishi's IPM product generations have undergone transitions that make finding stock a real challenge. Whether you are a maintenance team replacing a failed module in a running facility or a contract manufacturer building against a BOM, availability gaps on parts like the PS11013 can stall entire projects. ATI specializes in exactly these scenarios — stocking hard-to-find, long-lead-time, and legacy power semiconductors so you don't have to wait months for factory production.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, IPMs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time devices. The PS11013 ships same day on orders placed before 5PM EST. Contact our team for volume pricing, cross-reference assistance, or application support. Call 239-734-7566 or email sales@igbts.us.
