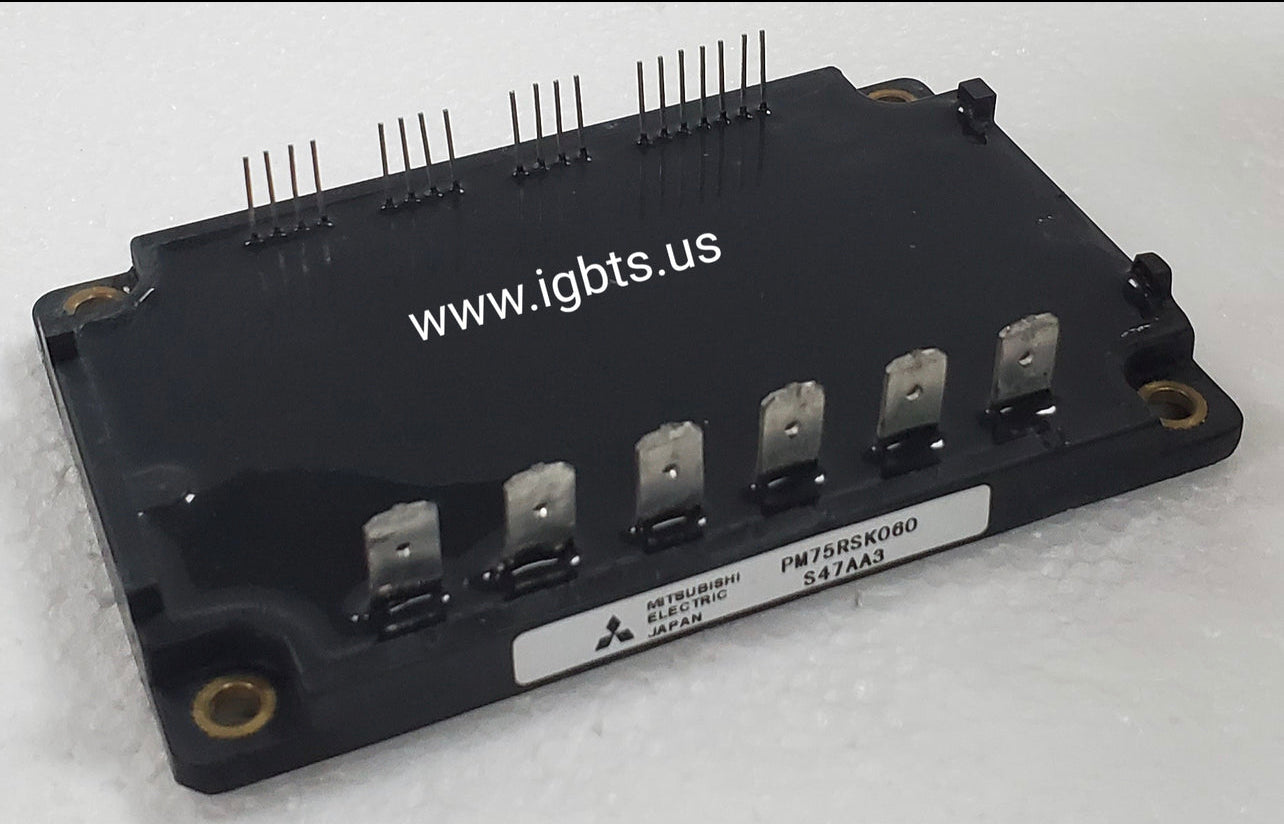

The Mitsubishi PM75RSK060 is a 75A, 600V Intelligent Power Module (IPM) that integrates IGBT chips with onboard gate drive circuits, protection logic, and fault output signaling into a single compact package. This level of integration reduces external component count, simplifies PCB layout, and improves system reliability compared to discrete IGBT implementations. The PM75RSK060 is engineered for demanding industrial environments where thermal performance, switching efficiency, and protection response time are non-negotiable design parameters.

The PM75RSK060 sees widespread deployment in AC motor drives, CNC servo amplifiers, elevator inverters, industrial HVAC systems, and general-purpose variable frequency drives operating on 400V-class bus systems. Its onboard protection features — including overcurrent, short-circuit, undervoltage lockout, and over-temperature shutdown — make it a preferred choice for OEM equipment designers and field engineers replacing modules in legacy drive platforms where downtime carries significant operational cost.

Quick Reference: PM75RSK060

Key Features of the PM75RSK060:

• 75A continuous collector current with 600V VCES rating suitable for 400V-class three-phase inverter topologies
• Integrated gate drive circuitry eliminates the need for external isolated gate drivers, reducing BOM complexity
• Built-in overcurrent and short-circuit protection with fault signal output for system-level fault management
• Undervoltage lockout (UVLO) on all gate drive power supplies prevents shoot-through under low-supply conditions
• Over-temperature protection via internal NTC thermistor output enables real-time thermal monitoring by the control system
• Compact transfer-molded package with industry-standard footprint simplifies drop-in replacement in existing drive hardware

With a factory lead time of 39 weeks on new production orders, the PM75RSK060 presents a serious procurement challenge for maintenance teams managing unplanned failures and OEM manufacturers under production pressure. Mitsubishi IPMs in this current and voltage class are frequently found in legacy drive platforms that are no longer in active production themselves, compounding the difficulty of sourcing through standard distribution channels. Having a stocked supplier who can ship immediately is the difference between hours of downtime and weeks of equipment standstill.

ATI Accurate Technology, based in Palmetto, Florida, maintains inventory of the PM75RSK060 and ships same-day on orders received before 5PM EST. We specialize in hard-to-find, long-lead-time, and obsolete power semiconductors including IGBTs, thyristors, diodes, and intelligent power modules. Volume pricing is available for OEM builders and MRO stocking programs. Contact our team today at 239-734-7566 or sales@igbts.us to confirm availability and request a quote.
