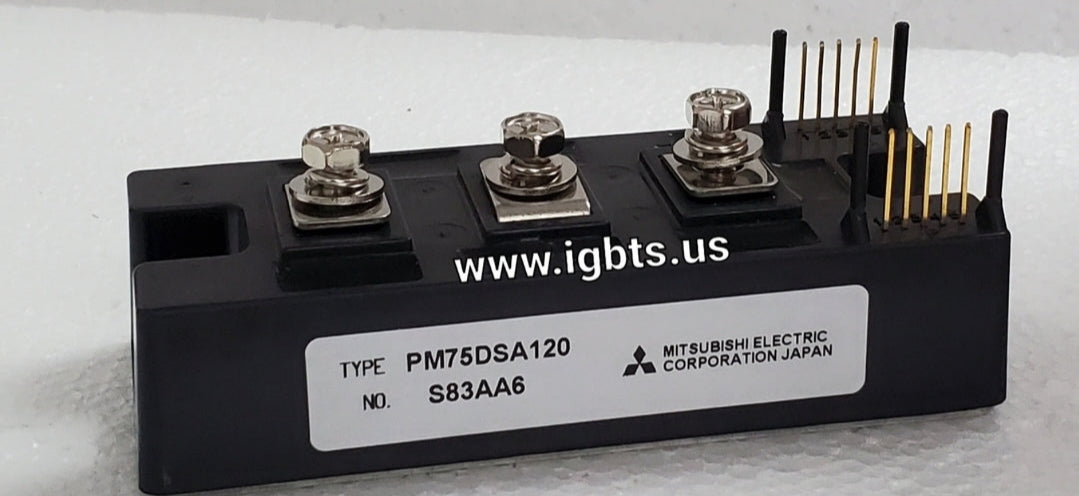

The Mitsubishi PM75DSA120 is a 75A, 1200V Intelligent Power Module (IPM) combining high-voltage IGBT chips with onboard gate drive, fault protection, and isolation circuitry in a single sealed package. This level of integration reduces external component count, simplifies PCB layout, and delivers consistent switching performance critical to precision motor control and high-frequency power conversion designs. The PM75DSA120 is engineered for reliability under continuous industrial duty cycles, making it a trusted solution for engineers who require repeatable performance without extensive external protection architecture.

The PM75DSA120 sees widespread deployment in AC variable frequency drives (VFDs), servo amplifiers, UPS systems, industrial welding inverters, and elevator traction control equipment. Its 1200V blocking capability provides the necessary voltage margin for 480V three-phase input systems, while the 75A current rating accommodates mid-range motor drive applications. The integrated protection functions—including over-current trip, short-circuit shutdown, and thermal fault output—make it well-suited for OEM equipment builders and field retrofit applications where system-level protection simplicity is a priority.

Quick Reference: PM75DSA120

Key Features of the PM75DSA120:

• 75A continuous collector current with 1200V VCES rating, providing robust margin for 480V three-phase industrial drive topologies
• Integrated gate drive circuitry eliminates the need for discrete gate resistors and isolated driver power supplies at the module level
• Built-in over-current and short-circuit protection with dedicated fault output signal for system-level supervisory control
• On-chip temperature monitoring with thermal shutdown to protect the module during thermal runaway conditions or cooling failures
• Isolated baseplate construction with low thermal resistance for effective heat transfer to standard power module heatsinks
• CMOS/TTL-compatible control inputs enabling direct interfacing with DSP-based and microcontroller-based PWM drive controllers

With a factory lead time of 99 weeks, sourcing the PM75DSA120 through standard distribution channels is not a viable option for most maintenance or production timelines. This module is classified as long-lead-time and is increasingly difficult to obtain as Mitsubishi transitions product lines. Engineers maintaining legacy VFDs, servo systems, or industrial inverters that depend on this IPM cannot afford multi-month procurement delays. ATI specializes in exactly these situations—maintaining inventory of hard-to-find, long-lead-time, and obsolete power semiconductors so that critical equipment can be repaired and returned to service without extended downtime.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, IPMs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts like the PM75DSA120. Orders placed before 5PM EST ship same-day. Volume pricing is available for MRO stockers, OEM builders, and service centers. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and request a quote.
