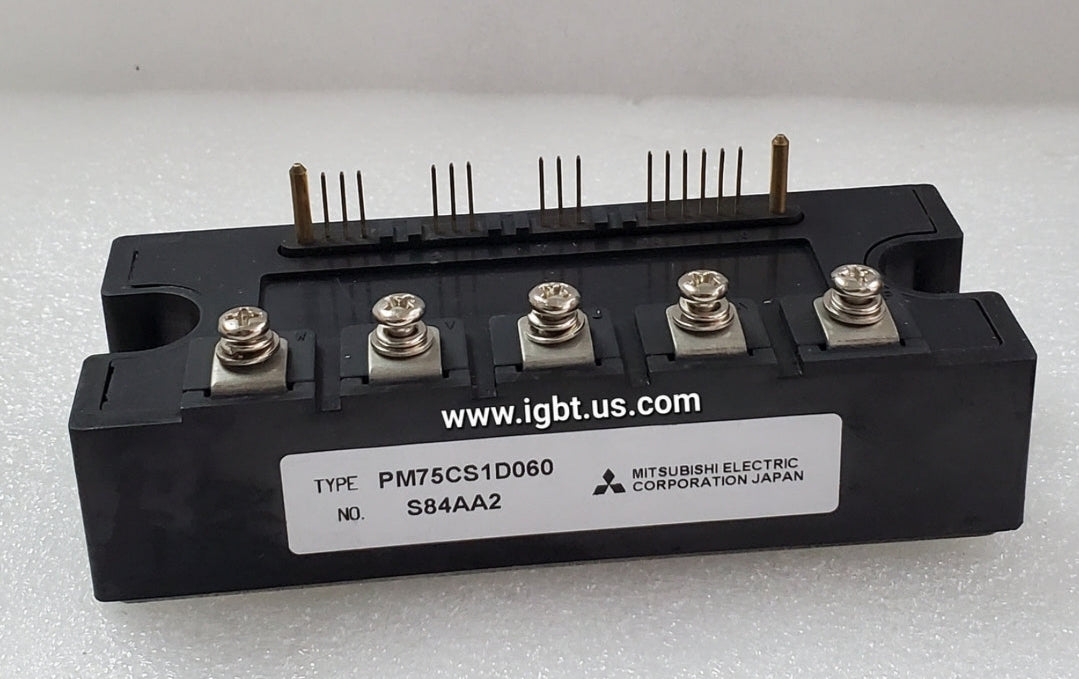

The Mitsubishi PM75CS1D060 is a 75A, 600V Intelligent Power Module (IPM) combining IGBT power devices with integrated gate drive circuitry, fault protection logic, and thermal sensing into a single, application-ready package. This level of integration reduces external component count, simplifies PCB layout, and accelerates time-to-deployment in inverter and drive designs. Built to Mitsubishi's proven IPM standards, the PM75CS1D060 delivers consistent switching performance, robust short-circuit protection, and undervoltage lockout — making it a dependable choice for engineers who need reliability and design simplicity in one solution.

The PM75CS1D060 is well suited for three-phase AC variable frequency drives (VFDs), servo motor control systems, industrial inverters, UPS systems, and HVAC compressor drives operating at 600V bus levels. Its integrated protection features — including overcurrent, short-circuit, and overtemperature shutdown — reduce the design burden on system engineers and help safeguard connected motor loads in harsh industrial environments. Elevator drives, CNC machine tool spindle drives, and regenerative braking systems also benefit from the module's efficient switching characteristics and compact power density.

Quick Reference: PM75CS1D060

Key Features of the PM75CS1D060:

• 75A continuous collector current with 600V collector-emitter voltage rating suitable for 400V-class AC drive topologies
• Integrated gate drive circuitry eliminates the need for external isolated gate drivers per switch, reducing BOM complexity
• Built-in protection functions including overcurrent/short-circuit shutdown, undervoltage lockout (UVLO), and overtemperature fault output
• Fault output signal pin simplifies system-level fault detection and microcontroller interface without additional signal conditioning
• Optimized IGBT switching characteristics balance low conduction losses with controlled switching speeds to minimize EMI in industrial inverter environments
• Compact, industry-standard IPM package footprint supports direct replacement and retrofit into existing drive platforms designed around Mitsubishi CS-series modules

With a factory lead time of 33 weeks for new production, the PM75CS1D060 presents a real procurement challenge for maintenance teams managing unplanned downtime or engineers in active production builds. Mitsubishi IPMs of this specification are frequently found in legacy VFD platforms and industrial machinery that may no longer have stable supply chain support. Waiting on factory allocation is not always an option when a production line or critical system is offline. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power modules specifically to bridge this gap for procurement professionals and MRO buyers who need parts now.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, IPMs, thyristors, diodes, and rectifier modules from leading manufacturers. The PM75CS1D060 ships same-day on orders placed before 5PM EST. Volume pricing is available for OEMs, contract manufacturers, and stocking orders. Contact our team directly at 239-734-7566 or sales@igbts.us for availability confirmation, lead time updates, or a quote on single or multiple units.
