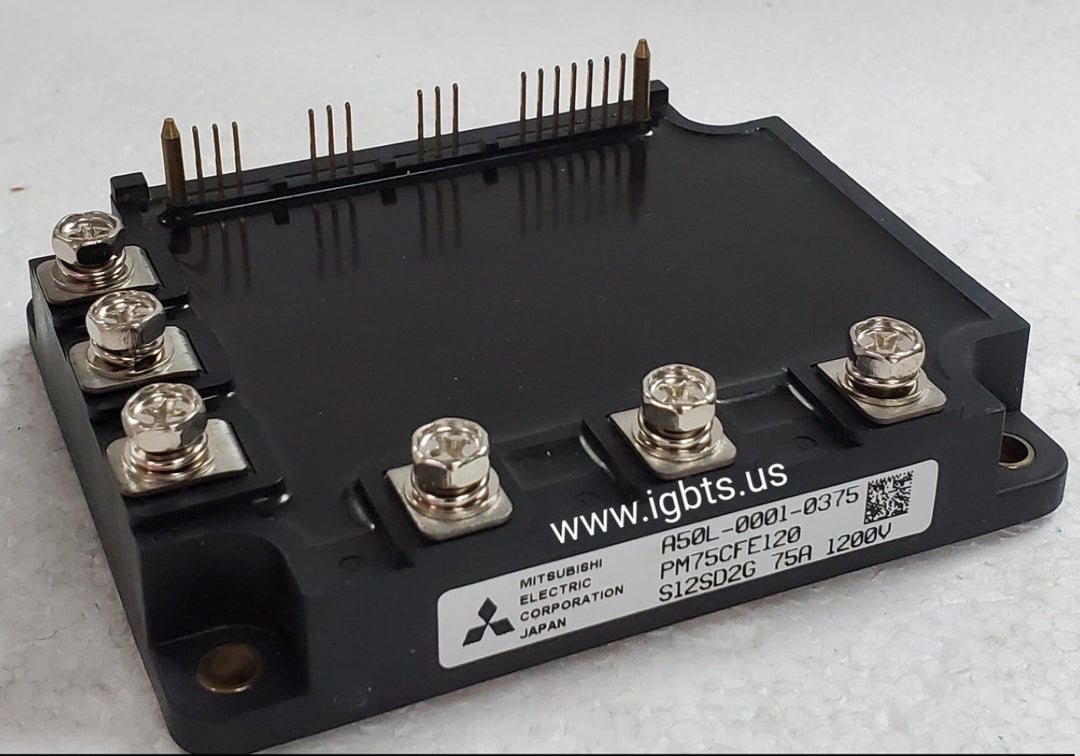

The Mitsubishi PM75CFE120 is a 75A, 1200V Intelligent Power Module combining high-voltage IGBTs with integrated gate drive, overcurrent protection, short-circuit protection, undervoltage lockout, and temperature monitoring in a single substrate package. This level of integration reduces external component count, simplifies PCB layout, and accelerates time-to-market for power conversion system designers. The PM75CFE120 is engineered for high switching frequency performance with low conduction losses, making it a reliable building block for modern industrial drive and inverter topologies.

The PM75CFE120 is well suited for three-phase AC motor drives, servo amplifiers, uninterruptible power supplies, solar inverters, and general-purpose industrial converters operating at medium power levels. Its integrated protection functions — including fault output signaling — make it particularly valuable in automation and process control environments where uptime is critical and nuisance tripping must be minimized. OEMs producing variable frequency drives, CNC spindle drives, and elevator controls have widely adopted this module family for its balance of performance, protection, and packaging efficiency.

Quick Reference: PM75CFE120

Key Features of the PM75CFE120:

• 75A continuous collector current with 1200V VCES blocking voltage for robust margin in 690V AC drive applications
• Integrated gate drive circuitry eliminates discrete bootstrap and isolated supply design, reducing BOM complexity
• Built-in overcurrent and short-circuit protection with dedicated fault output (FO) pin for system-level fault management
• Undervoltage lockout (UVLO) on all gate drive channels prevents mis-firing during power sequencing or supply dips
• On-chip NTC thermistor enables real-time junction temperature monitoring and thermal protection integration
• Isolated control interface compatible with standard 3.3V and 5V logic, simplifying interface to DSP and microcontroller-based control boards

With a factory lead time of 42 weeks for new production, procurement teams relying solely on the manufacturer's delivery schedule face significant exposure to production downtime, especially when replacing failed modules in fielded equipment. The PM75CFE120 has appeared in a wide range of drive platforms that are no longer in active production, making spot availability increasingly constrained through standard distribution channels. ATI Accurate Technology specializes in exactly this scenario — maintaining verified new OEM stock of modules like the PM75CFE120 to support both emergency replacement and planned maintenance programs.

ATI Accurate Technology is a power semiconductor specialist located in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and intelligent power modules for industrial and commercial applications worldwide. Orders placed before 5PM EST ship same day. Whether you need a single replacement module or volume pricing for a scheduled maintenance build, our team is ready to assist. Contact us at 239-734-7566 or sales@igbts.us for real-time availability, lead time, and quantity pricing on the PM75CFE120.
