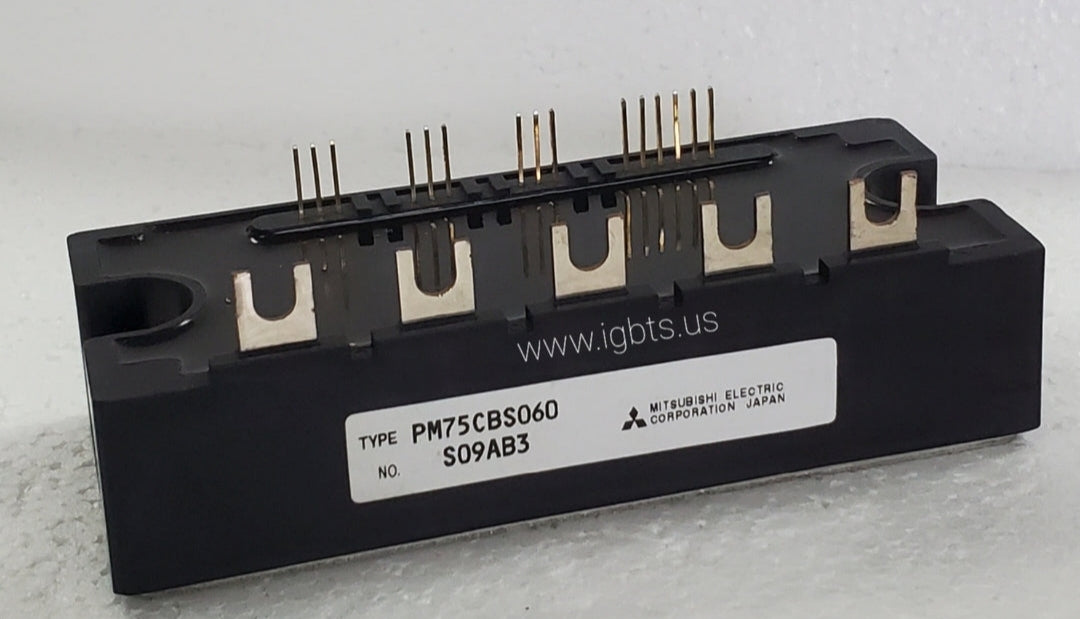

The Mitsubishi PM75CBS060 is a 75A, 600V Intelligent Power Module designed to simplify high-performance inverter and motor drive design. As an IPM, it integrates IGBT chips alongside gate drive circuitry and on-chip protection functions — including overcurrent, short-circuit, undervoltage lockout, and overtemperature shutdown — into a single isolated package. This level of integration reduces external component count, shrinks PCB footprint, and significantly accelerates design validation cycles for engineers working under tight development schedules in demanding industrial environments.

The PM75CBS060 is a proven solution in three-phase AC motor drive systems, CNC servo amplifiers, UPS inverters, industrial robotics, and general-purpose variable frequency drives. Its 600V blocking voltage and 75A continuous current rating make it a reliable fit for medium-power drive applications in automation, HVAC, pump and fan control, and factory machinery. The integrated protection architecture helps reduce system-level failure modes that plague discrete IGBT implementations, making it a preferred choice for engineers designing for long operational life in harsh industrial conditions.

Quick Reference: PM75CBS060

Key Features of the PM75CBS060:

• 75A / 600V ratings suited for medium-power three-phase inverter and motor drive topologies
• Integrated gate drive circuitry eliminates need for external gate resistors and isolated drive power supplies per switch
• Built-in protection: overcurrent (OC), short-circuit (SC), undervoltage lockout (UVLO), and overtemperature (OT) fault output
• Isolated substrate package construction provides high thermal conductivity and dielectric isolation to heatsink mounting surface
• Fault signal output pin enables system-level fault management and rapid shutdown coordination with DSP or MCU control stages
• Compatible with Mitsubishi's IPM application reference designs, simplifying drop-in replacement in existing drive platforms

With a current factory lead time of 40 weeks for new production, engineers and procurement teams sourcing the PM75CBS060 for production runs, field repairs, or equipment refurbishment face a significant wait through standard distribution channels. This module also appears in legacy drive platforms where Mitsubishi has transitioned to successor products, making in-stock availability increasingly scarce. Whether you're maintaining industrial equipment, sustaining a production line, or managing MRO inventory, waiting on factory lead times is rarely an option. ATI specializes in sourcing exactly these types of long-lead and hard-to-find power semiconductor components.

ATI Accurate Technology is located in Palmetto, Florida and stocks IGBTs, IPMs, thyristors, diodes, and rectifier modules from leading manufacturers including Mitsubishi. Orders placed before 5PM EST ship same day. For volume pricing, cross-reference support, or urgent procurement needs, contact our team directly at 239-734-7566 or sales@igbts.us. We work with maintenance engineers and procurement professionals to keep your operations running without costly downtime.
