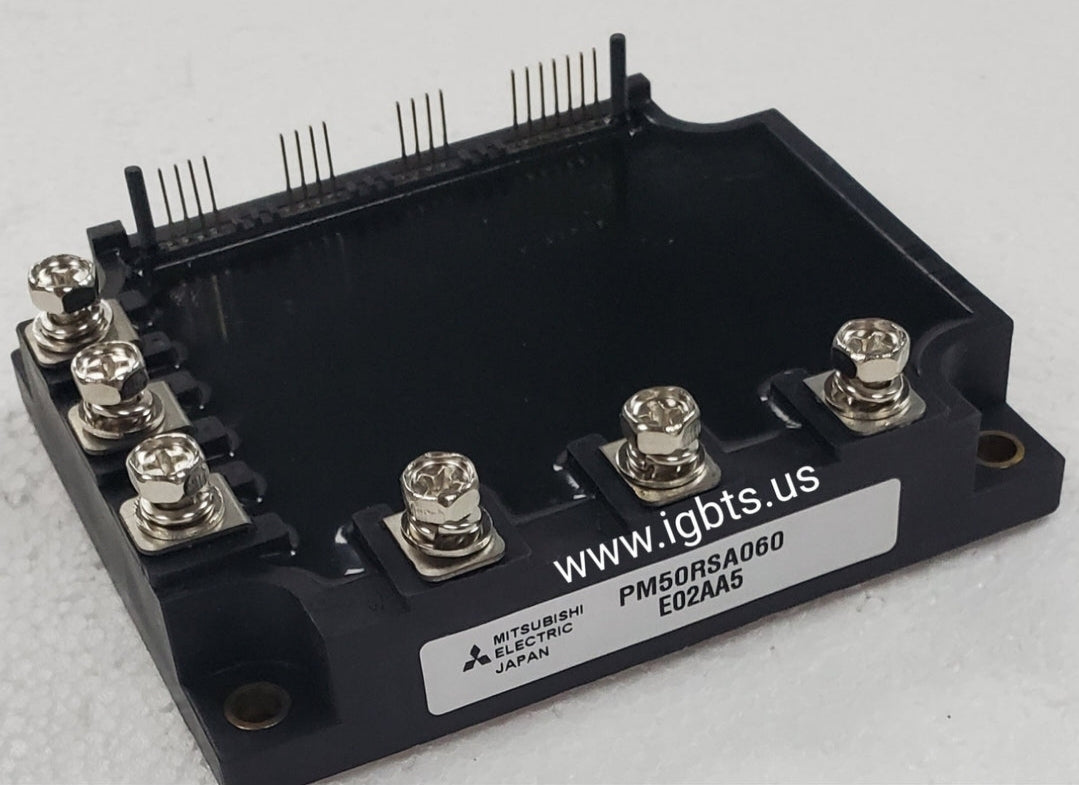

The Mitsubishi PM50RSA060 is a 50A, 600V Intelligent Power Module (IPM) that integrates IGBT chips with onboard gate drive circuitry, fault protection logic, and thermal sensing into a single sealed package. This level of integration reduces external component count and design complexity while delivering fast, low-loss switching performance critical to high-efficiency power conversion. The PM50RSA060 is built to Mitsubishi's established IPM standards, offering consistent switching characteristics, short-circuit protection, and under-voltage lockout — all within a thermally optimized package suited for demanding environments.

The PM50RSA060 is well suited for variable frequency drives (VFDs), AC servo amplifiers, uninterruptible power supplies (UPS), and industrial inverter platforms operating in the 600V bus range. Its integrated protection features reduce system-level fault response time, making it a preferred choice for motion control and process automation equipment where unexpected downtime carries significant operational cost. OEMs and field service engineers maintaining legacy drive systems frequently specify this module for direct board-level replacement without requiring redesign.

Quick Reference: PM50RSA060

Key Features of the PM50RSA060:

• Integrated IGBT switching elements with onboard gate drive circuitry, eliminating the need for external gate resistor networks in most designs
• Built-in short-circuit protection with fault output signal for rapid system-level fault detection and shutdown
• Under-voltage lockout (UVLO) on gate drive supply rails prevents shoot-through under low-supply conditions
• Integrated thermistor or thermal protection circuit enables real-time junction temperature monitoring and over-temperature fault triggering
• 600V blocking voltage rating with 50A continuous current capacity suitable for three-phase inverter topologies in industrial drive applications
• Compact, industry-standard IPM package with isolated baseplate for direct heatsink mounting and simplified thermal management

The PM50RSA060 carries a factory lead time of approximately 35 weeks on new production orders, a reality that continues to disrupt maintenance schedules and OEM production lines across the power electronics supply chain. For engineers managing aging VFD platforms or procurement teams under schedule pressure, waiting nine months for a critical module is not an option. ATI specializes in exactly this scenario — maintaining ready inventory of hard-to-find, long-lead-time, and obsolete power semiconductor modules so that downtime is measured in hours, not quarters. Sourcing from ATI eliminates the lead time risk entirely.

ATI Accurate Technology is located in Palmetto, Florida and stocks the PM50RSA060 as new OEM inventory available for same-day shipment on orders received before 5PM EST. Whether you need a single replacement module or volume quantities for a production run or MRO program, ATI offers competitive pricing and responsive service from a team that knows power semiconductors. Contact us today at 239-734-7566 or sales@igbts.us to confirm availability and request a quote.
