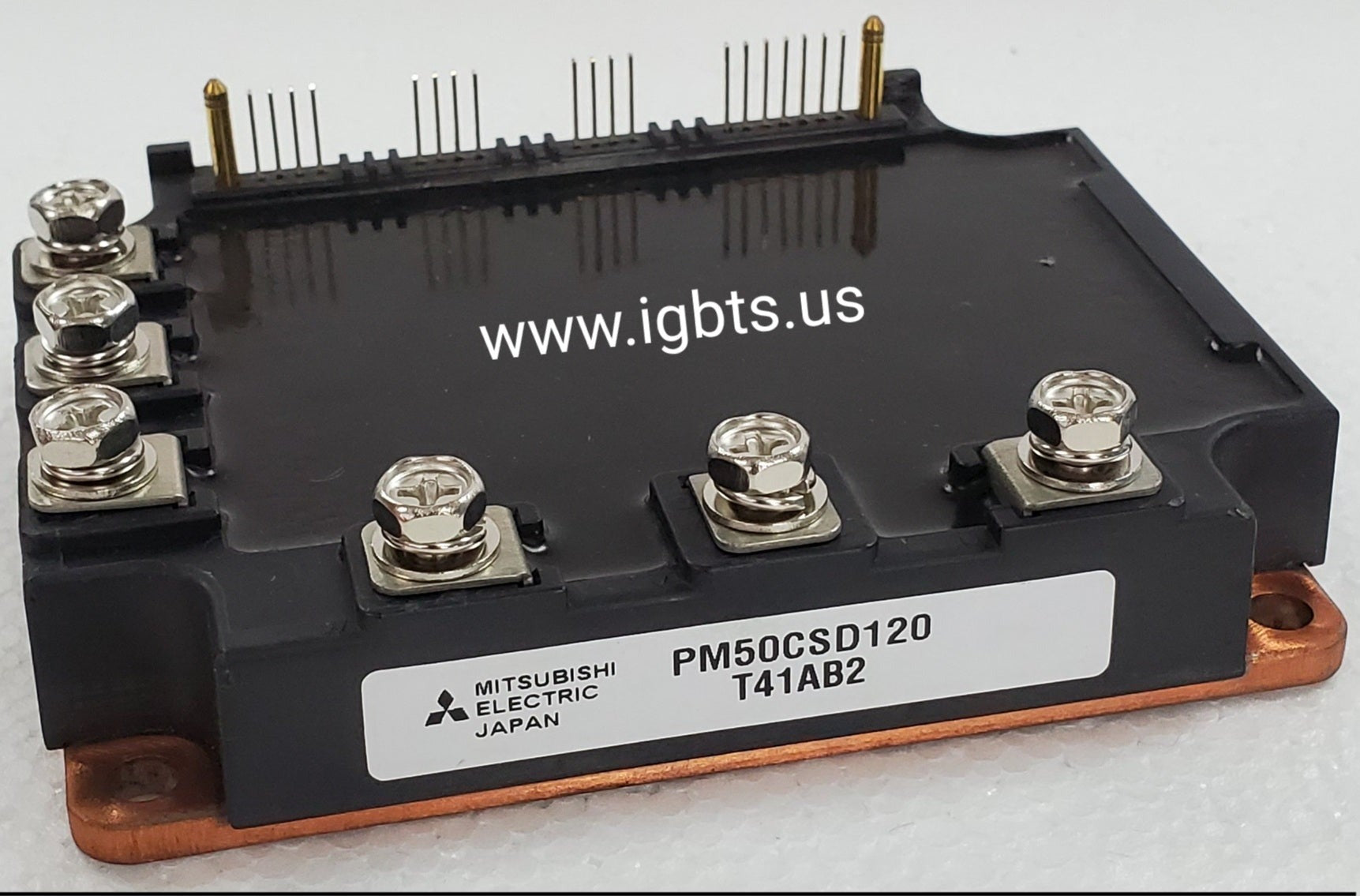

The Mitsubishi PM50CSD120 is a sixth-generation Intelligent Power Module combining a 50A, 1200V IGBT array with integrated gate drive circuitry, fault protection logic, and thermal sensing in a single isolated package. This level of integration reduces external component count, simplifies PCB layout, and accelerates time-to-market for inverter designers. The built-in protection functions—including overcurrent, short-circuit, under-voltage lockout, and over-temperature shutdown—respond in microseconds, safeguarding both the module and the connected load without requiring complex external monitoring circuits.

The PM50CSD120 is engineered for three-phase AC motor drives, servo amplifiers, UPS systems, and industrial inverters operating from 480V AC mains. It is well suited for CNC machine tool spindle drives, HVAC variable-frequency drives, crane and hoist controls, and regenerative braking systems where switching losses, reliability, and compact footprint are equally critical. OEM equipment manufacturers and MRO maintenance teams across industrial automation, material handling, and process control industries rely on this module as a direct replacement or production build component.

Quick Reference: PM50CSD120

Key Features of the PM50CSD120:

• 50A / 1200V IGBT-based intelligent power module in a compact isolated package suitable for 480V three-phase inverter topologies
• Integrated gate drive circuitry eliminates discrete driver components and simplifies bootstrap supply design
• On-chip over-temperature sensing via thermistor output enables real-time thermal monitoring by system controllers
• Built-in short-circuit and overcurrent protection with fault signal output for system-level interlock and fault logging
• Under-voltage lockout (UVLO) on all gate drive supply rails prevents destructive partial-saturation switching events
• Low switching losses and optimized dead-time control contribute to higher system efficiency and reduced heatsink requirements

With a current factory lead time of 35 weeks for new production, procurement teams sourcing the PM50CSD120 for scheduled builds or emergency repairs cannot afford to wait. The module appears across legacy and current-generation drive platforms from multiple OEMs, making stock availability a recurring challenge in MRO environments. Whether you are maintaining aging equipment, building production inventory, or qualifying an urgent field repair, having a trusted distributor with verified new OEM stock on hand is the difference between a same-day fix and a multi-month production delay.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, IPMs, thyristors, diodes, and rectifier modules—including hard-to-find and long-lead-time parts like the PM50CSD120. Orders placed before 5PM EST ship same day. Volume pricing is available for OEM and MRO procurement. Contact our team at 239-734-7566 or sales@igbts.us for a quote, lead-time confirmation, or technical assistance.
