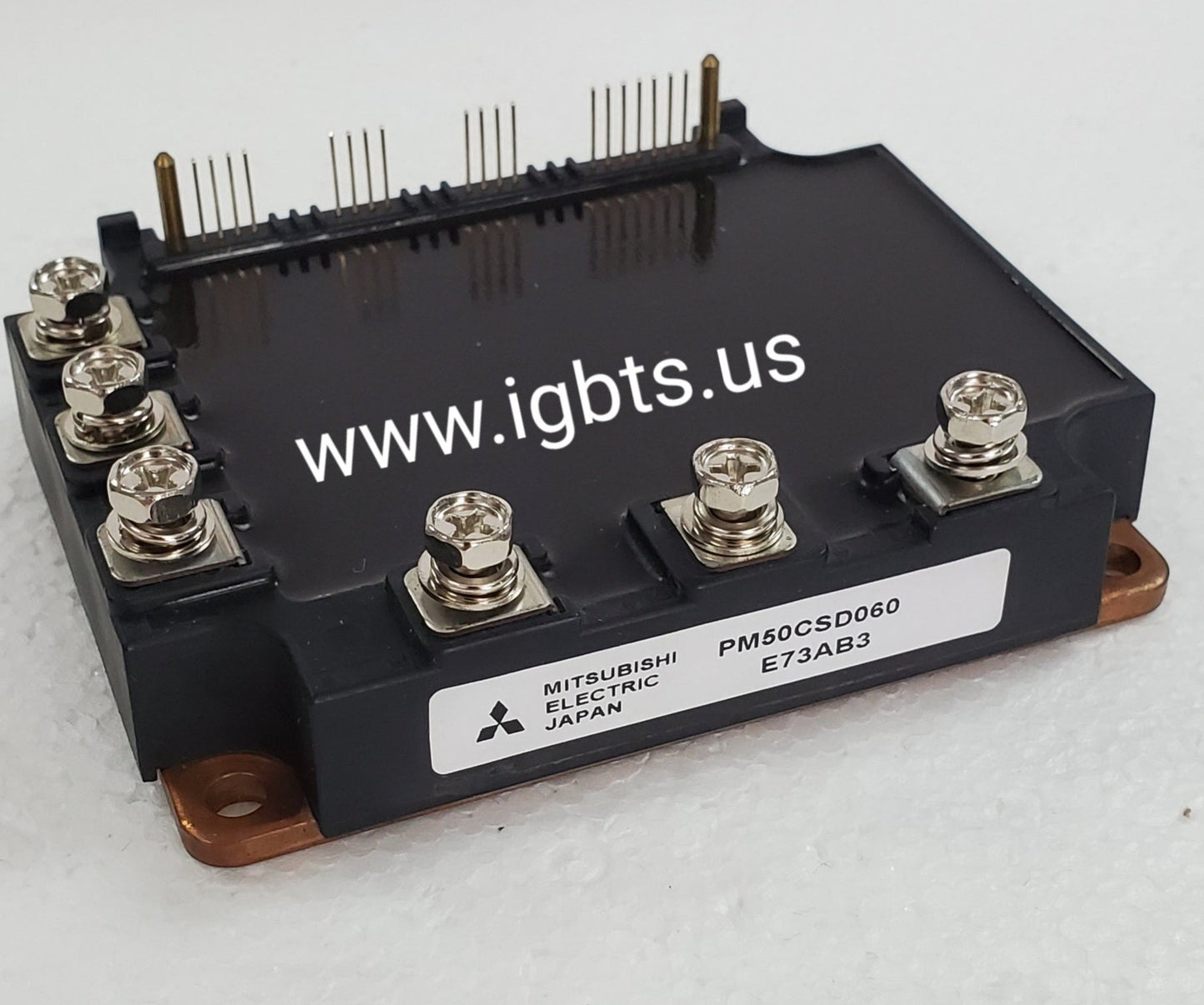

The Mitsubishi PM50CSD060 is a 50A, 600V Intelligent Power Module designed to simplify inverter and motor drive circuit design by integrating IGBT power devices with gate drive circuitry, bootstrap power supply functionality, and comprehensive protection features into a single compact package. The built-in protection logic addresses overcurrent, short-circuit, undervoltage lockout, and overtemperature conditions, reducing external component count and overall system design complexity. This module is manufactured to Mitsubishi's established IPM standards, delivering consistent switching performance and thermal characteristics that engineers can rely on across demanding duty cycles.

The PM50CSD060 is widely deployed in three-phase AC variable frequency drives, servo motor controllers, UPS systems, and industrial inverter platforms where power density, switching efficiency, and protection integrity are paramount. Its integrated architecture makes it a preferred choice for OEM equipment manufacturers designing HVAC compressor drives, conveyor systems, pump controls, and CNC machine tool spindle drives. The module's combination of compact form factor and onboard intelligence reduces PCB real estate requirements and accelerates time-to-market for power conversion system designs operating in the sub-100A, 600V class.

Quick Reference: PM50CSD060

Key Features of the PM50CSD060:

• 600V / 50A IGBT power stage with integrated gate drive circuitry for reduced external component requirements
• Built-in overcurrent and short-circuit protection with fault output signal for system-level fault management
• Undervoltage lockout (UVLO) on control supply to prevent destructive mis-gating during power-up and power-down transients
• Integrated bootstrap circuit support simplifying high-side gate drive power supply design
• Optimized for PWM switching frequencies typical of industrial motor drive applications, balancing switching losses and EMI performance
• Isolated signal interface compatible with standard 3.3V and 5V logic-level microcontrollers and DSP gate drive outputs

With a current factory lead time of 34 weeks on new production orders, procurement teams supporting active production lines or field repair inventories cannot afford to wait. The PM50CSD060 appears regularly in legacy VFD platforms and servo drive equipment that remain in service well past original OEM support windows. When a drive fails on the production floor, downtime costs accumulate quickly. Sourcing from a stocking distributor with verified new OEM inventory eliminates the lead time risk and avoids the quality uncertainties associated with unauthorized secondary-market channels.

ATI Accurate Technology is a power semiconductor distributor headquartered in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules — including hard-to-find and long-lead-time parts like the PM50CSD060. We stock new OEM inventory and ship same-day on orders received before 5PM EST. Volume pricing is available for MRO and production builds. Contact our team today at 239-734-7566 or sales@igbts.us to confirm availability and request a quote.
