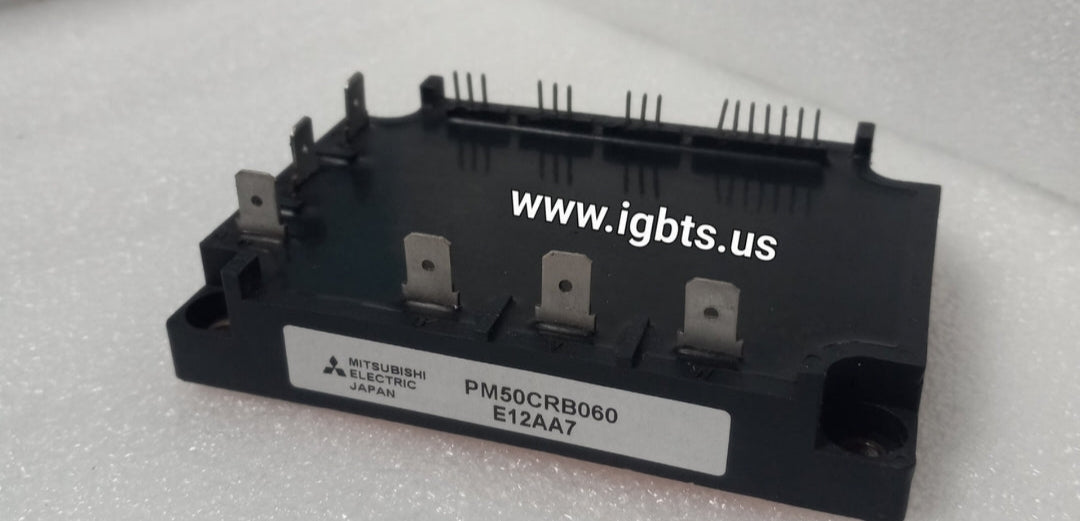

The Mitsubishi PM50CRB060 is a 50A, 600V Intelligent Power Module (IPM) combining IGBT power switching with integrated gate drive circuits and built-in fault protection functions into a single, compact package. This level of integration reduces external component count, simplifies PCB layout, and accelerates design cycles for power conversion equipment. The PM50CRB060 is engineered to deliver low switching losses, high thermal performance, and robust short-circuit protection, making it a dependable choice for engineers designing or maintaining variable-speed drives, inverters, and servo amplifiers in industrial and commercial environments.

The PM50CRB060 sees widespread deployment across a broad range of industrial automation and motion control platforms. Typical applications include AC variable frequency drives (VFDs) for pumps, fans, compressors, and conveyor systems, as well as servo and spindle drive systems in CNC machinery and robotics. Its integrated protection features—including overcurrent, overtemperature, and undervoltage lockout—make it particularly well suited for unattended or high-cycle-rate industrial environments where system reliability and uptime are critical. OEM equipment manufacturers and MRO teams both rely on this module in legacy and current-generation drive platforms.

Quick Reference: PM50CRB060

Key Features of the PM50CRB060:

• 50A continuous collector current with 600V collector-emitter voltage rating for mid-power drive applications
• Integrated gate drive circuitry eliminates the need for external gate resistors and isolated driver power supplies for each switch
• Built-in overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO) with fault output signal for system-level monitoring
• Low on-state and switching losses enabled by Mitsubishi's high-speed IGBT chip technology, reducing heatsink requirements and improving overall system efficiency
• Isolated signal and power interface simplifies optocoupler design on the control board side
• Compact, transfer-molded package with direct-mount baseplate optimized for thermal interface to heatsink assemblies in space-constrained enclosures

With a factory lead time of 43 weeks on new production, the PM50CRB060 presents a serious procurement challenge for maintenance teams dealing with unplanned equipment failures or production facilities running planned shutdowns on tight schedules. This module also appears in a number of legacy drive platforms that are no longer in active production, making factory channels an unreliable option entirely. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power semiconductors specifically to address these situations, keeping your equipment running without extended downtime or costly production delays.

ATI Accurate Technology is a power semiconductor specialist located in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and intelligent power modules for industrial customers nationwide. We ship same-day on orders received before 5PM EST, and our team is ready to support urgent and volume requirements alike. Contact us directly for pricing, availability confirmation, and volume discounts: 239-734-7566 | sales@igbts.us.
