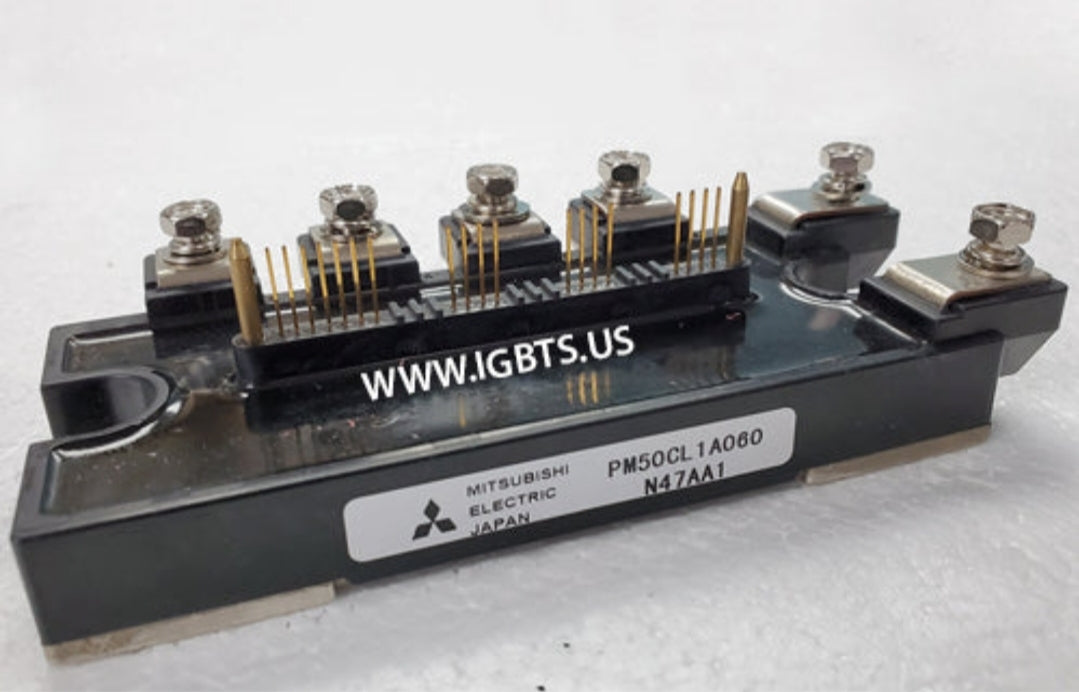

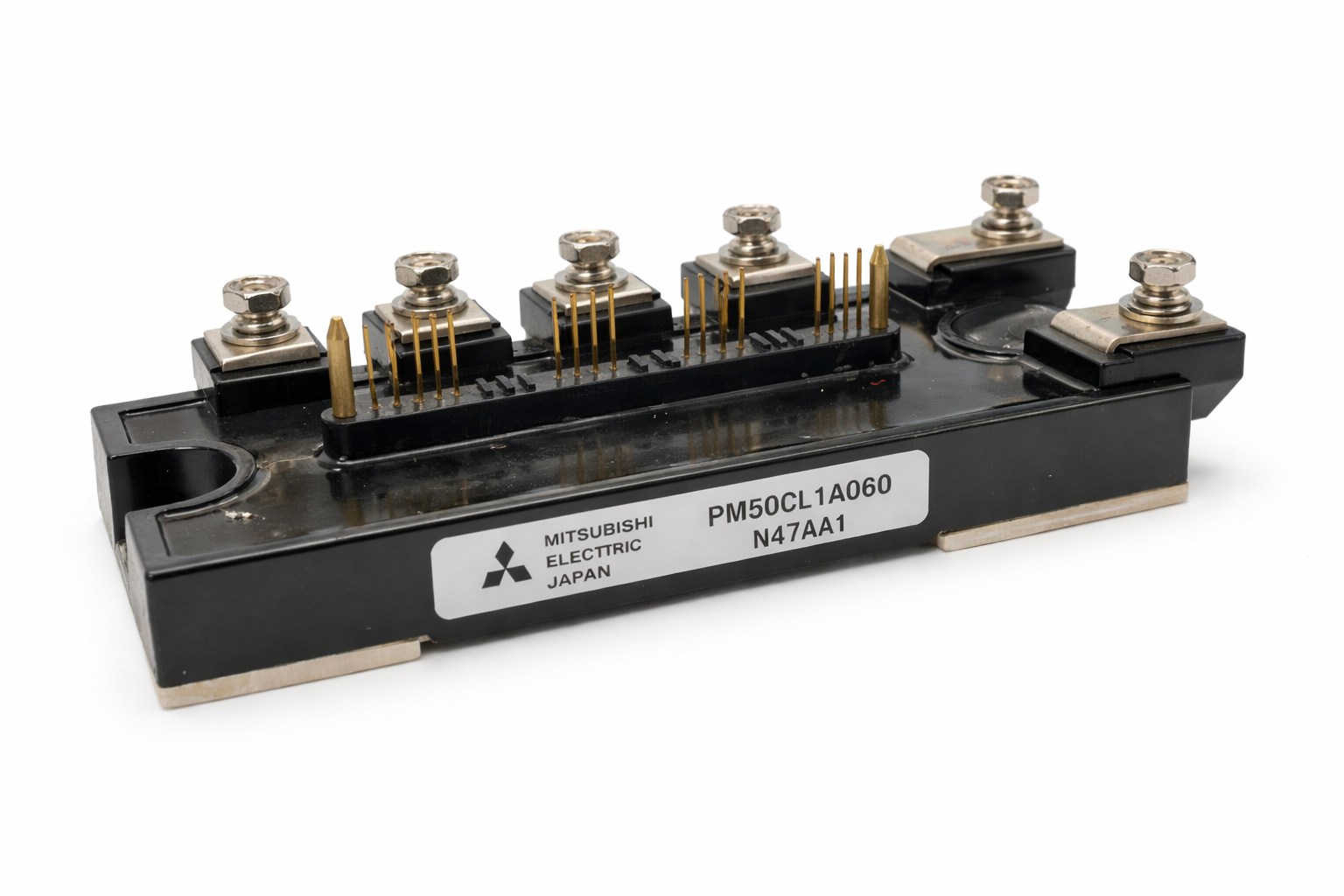

The Mitsubishi PM50CL1A060 is an Intelligent Power Module (IPM) combining IGBT switching elements with integrated gate drive circuitry and on-chip protection functions including overcurrent, short-circuit, overtemperature, and undervoltage lockout. This level of integration reduces external component count, simplifies PCB layout, and improves system reliability in space-constrained designs. Rated at 1A, the PM50CL1A060 is engineered for precision low-power switching applications where compact footprint and built-in fault management are critical design requirements. The module ships in Mitsubishi's established IPM package format, compatible with standard mounting and interface configurations.

The PM50CL1A060 is well suited for compact AC motor drives, HVAC fan and pump controllers, small servo amplifiers, and general-purpose inverter systems operating at lower current levels. Its integrated protection architecture makes it a preferred choice for industrial automation equipment, home appliance motor controls, and any application where board space is limited and discrete gate drive design is impractical. OEMs designing next-generation low-power inverter platforms also utilize this module during prototyping and pre-production validation phases where long procurement cycles create scheduling risk.

Quick Reference: PM50CL1A060

Key Features of the PM50CL1A060:

• Integrated IGBT switching elements with on-board gate drive circuitry eliminate discrete driver design
• Built-in protection: overcurrent shutdown, short-circuit protection, overtemperature (OT) trip, and undervoltage lockout (UVLO)
• 600V blocking voltage with 1A continuous output current rating for low-power inverter topologies
• Fault output signal pin provides real-time fault reporting to system microcontroller or DSP
• Isolated control interface simplifies high-voltage/low-voltage boundary design and reduces EMI coupling
• Compact IPM package format supports high-density PCB integration with standardized mounting footprint

With a factory lead time of 39 weeks on new production orders, the PM50CL1A060 presents a significant procurement challenge for maintenance operations, line-down situations, and production schedules that cannot absorb multi-month delays. Mitsubishi IPMs in this current class are frequently design-specific, meaning no drop-in alternative exists without re-engineering gate drive interfaces and protection logic. Waiting for factory delivery is rarely an option when equipment is offline. ATI Accurate Technology maintains independent inventory of the PM50CL1A060 to serve exactly these critical-path procurement needs — new, OEM-grade stock ready to ship today.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and intelligent power modules including hard-to-find and long-lead-time parts. Orders placed before 5PM EST ship same day. Contact our team directly for volume pricing, export inquiries, or technical availability confirmation: 239-734-7566 | sales@igbts.us. We support MRO buyers, OEM procurement, and contract manufacturers who need reliable sourcing without the wait.
