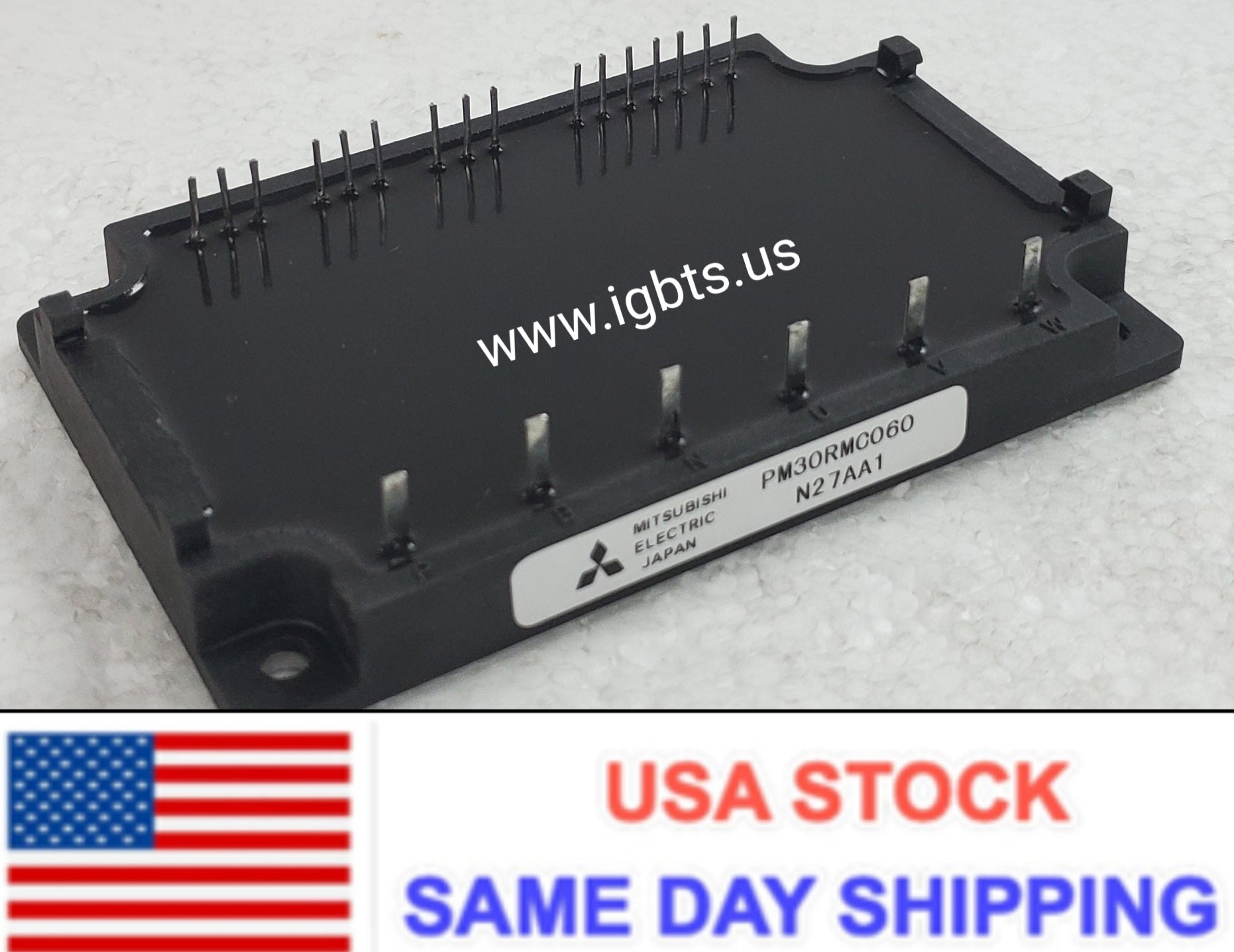

The Mitsubishi PM30RMC060 is a 30A, 600V Intelligent Power Module (IPM) that integrates IGBT chips with gate drive circuitry and onboard protection functions into a single compact package. Designed to simplify inverter and motor drive design, this IPM eliminates the need for discrete gate resistors and many external protection components. The integrated architecture reduces PCB complexity, improves thermal management, and accelerates time-to-design for engineers developing variable frequency drives, servo systems, and related power conversion equipment. It is a field-proven platform widely used in industrial automation and precision motion control.

The PM30RMC060 is a preferred solution in demanding industrial environments where reliability and protection response time are critical. Common applications include three-phase AC motor drives for pumps, fans, compressors, and conveyors; CNC servo amplifier outputs; welding inverters; and UPS power stages. Its onboard protection logic—responding to overcurrent, short-circuit, overtemperature, and undervoltage conditions—makes it particularly valuable in installations where protecting both the module and the connected load from fault propagation is essential. OEMs and retrofit engineers alike rely on this module across a broad range of industrial automation platforms.

Quick Reference: PM30RMC060

Key Features of the PM30RMC060:

• Integrated IGBT switching devices with built-in gate drive circuitry, reducing external component count and simplifying inverter stage design
• 600V blocking voltage with 30A continuous current rating, suitable for 400V AC three-phase motor drive output stages
• Onboard protection functions including overcurrent, short-circuit, overtemperature, and control supply undervoltage lockout (UVLO)
• Fault output signal pin for system-level fault detection and coordinated protection response
• Optimized for PWM switching frequencies common in industrial VFD and servo amplifier applications
• Compact, isolated package construction simplifying heatsink mounting and thermal interface design

With a factory lead time of 33 weeks for new production, the PM30RMC060 presents a significant procurement challenge for maintenance teams managing unplanned downtime or engineers on tight production schedules. This part appears across legacy and current Mitsubishi-platform drives, meaning demand frequently outpaces standard distribution inventory. Waiting on factory orders is not a viable option when a drive is down on the production floor. Having a trusted distributor with physical stock on hand is the fastest path to restoring equipment and maintaining operational continuity.

ATI Accurate Technology, based in Palmetto, Florida, stocks the PM30RMC060 as new OEM product and ships same-day on orders received before 5PM EST. We specialize in hard-to-find, long-lead-time, and obsolete power semiconductors including IGBTs, thyristors, diodes, and intelligent power modules. Volume pricing is available for MRO stocking programs and OEM production runs. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and receive a quote.
