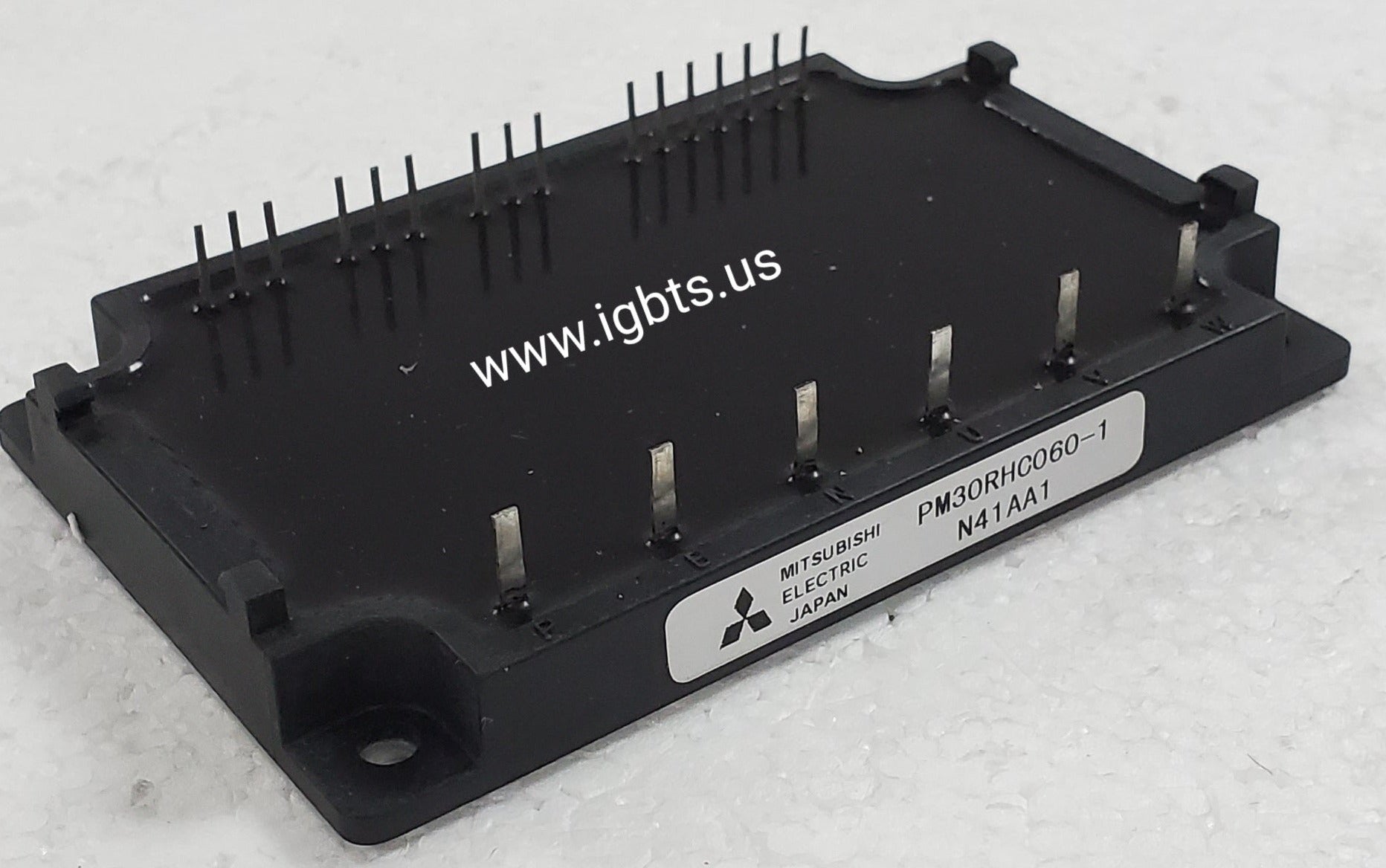

The Mitsubishi PM30RHC060-1 is a 30A, 600V Intelligent Power Module (IPM) that integrates IGBT chips with onboard gate drive, protection logic, and isolation into a single compact package. Unlike discrete IGBT solutions, the IPM architecture reduces external component count, simplifies PCB layout, and delivers consistent switching performance with built-in overcurrent, short-circuit, undervoltage lockout, and overtemperature protection. Designed to Mitsubishi's RHC-series IPM standard, the PM30RHC060-1 offers engineers a reliable, application-ready power switching solution suitable for demanding continuous-duty environments.

The PM30RHC060-1 is widely deployed in variable frequency drives (VFDs), AC servo amplifiers, uninterruptible power supplies (UPS), CNC machine tool spindle drives, industrial HVAC inverters, and robotic joint controllers. Its integrated protection functions reduce design risk and accelerate time-to-market in new designs, while its rugged construction makes it a preferred drop-in replacement in the repair and retrofit of legacy industrial equipment. The module's compact form factor is also well suited to elevator drives, textile machinery, and pump control systems where board space and thermal management are ongoing engineering constraints.

Quick Reference: PM30RHC060-1

Key Features of the PM30RHC060-1:

• 600V/30A IGBT-based intelligent power module with integrated gate drive circuitry
• Built-in protection: overcurrent (OC), short-circuit (SC), undervoltage lockout (UVLO), and overtemperature (OT) shutdown with fault output signal
• Low-inductance, isolated baseplate package minimizes parasitic effects and simplifies heatsink mounting
• High-speed switching optimized for PWM inverter operation at carrier frequencies typical in industrial VFD applications
• Single-supply gate drive interface reduces external power supply complexity versus discrete IGBT gate driver circuits
• RHC-series pinout and form factor compatible with standard Mitsubishi IPM footprints for direct board-level replacement

The PM30RHC060-1 carries a factory lead time of approximately 43 weeks on new production orders, making open-market inventory a critical resource for maintenance teams facing unplanned downtime and for OEMs managing production schedules. Mitsubishi IPMs of this generation are also approaching or at end-of-life status with certain distributors, compounding availability pressure. Procuring verified new OEM stock from a stocking specialist eliminates the quality risk associated with counterfeit or improperly stored product that is common in the gray market for long-lead and hard-to-find power modules.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, IPMs, thyristors, diodes, and rectifier modules including hard-to-find and obsolete parts. The PM30RHC060-1 is available in stock as new OEM with same-day shipping on orders placed before 5PM EST. Volume pricing is available for MRO stocking orders and OEM production quantities. Contact ATI at 239-734-7566 or sales@igbts.us for pricing, lead time, and availability.
