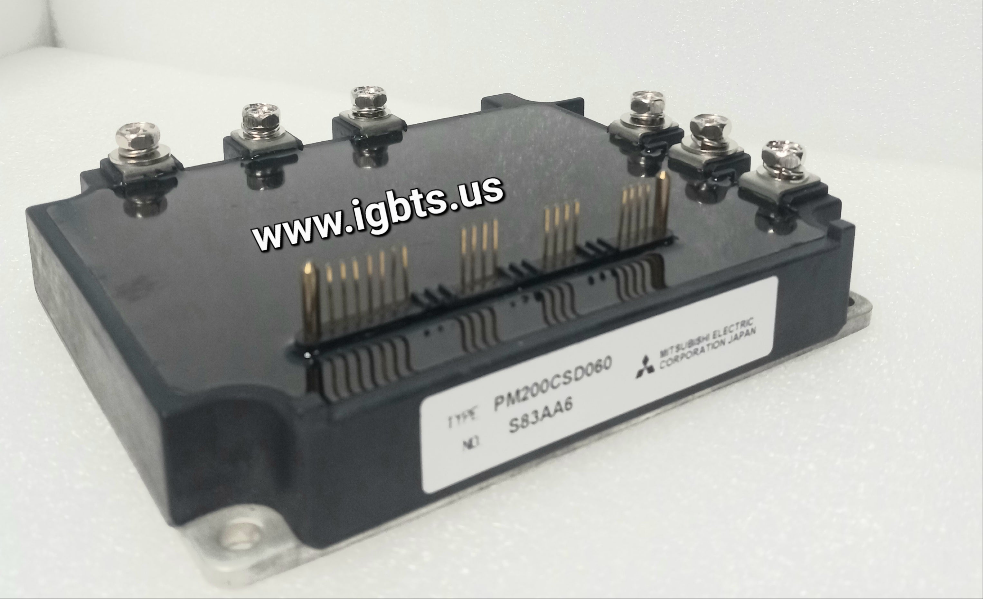

The Mitsubishi PM200CSD060 is a 200A, 600V Intelligent Power Module (IPM) combining IGBT power switching with integrated gate drive, overcurrent, short-circuit, under-voltage lockout, and over-temperature protection in a single compact package. This level of integration reduces external component count, simplifies PCB layout, and improves system reliability in demanding power conversion applications. The PM200CSD060 is engineered for high switching frequency operation with low switching losses, making it well-suited for modern variable-speed drive platforms that demand efficiency and tight dynamic response.

The PM200CSD060 sees wide deployment in industrial AC motor drives, CNC machine tool spindle inverters, elevator and escalator drives, HVAC compressor controls, and UPS systems operating at medium power levels. Its built-in protection functions reduce the burden on external microcontrollers and DSPs, shortening development cycles for OEM drive designers. Renewable energy inverters, welding power supplies, and servo amplifiers also benefit from the module's combination of high current capability, fast fault response, and thermally efficient package construction designed for reliable long-term operation.

Quick Reference: PM200CSD060

Key Features of the PM200CSD060:

• 200A / 600V IGBT power stage with low V_CE(sat) for reduced conduction losses at full load
• Integrated gate drive circuitry eliminates the need for external isolated gate driver stages
• On-chip overcurrent and short-circuit protection with fault output signal for system-level response
• Under-voltage lockout (UVLO) on all gate drive supply rails prevents destructive mis-firing during power-up and supply transients
• Integrated NTC thermistor for real-time junction temperature monitoring and over-temperature protection
• Isolated input control interface compatible with 3.3V and 5V logic for direct DSP or microcontroller interfacing

With a factory lead time currently exceeding 99 weeks from Mitsubishi Electric, the PM200CSD060 presents a critical procurement challenge for maintenance teams managing unplanned downtime and for OEMs building production schedules. Extended lead times at this level effectively make new factory orders impractical for urgent repair or near-term production needs. ATI Accurate Technology maintains independent stock of the PM200CSD060, providing a reliable alternative to the factory queue for engineers who cannot afford to wait. All units are new OEM parts, not refurbished or remarked, ensuring full rated performance and traceability.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and power modules including obsolete and long-lead-time parts. The PM200CSD060 ships same day on orders received before 5PM EST. Contact our team for volume pricing, availability confirmation, or technical support at 239-734-7566 or sales@igbts.us. Volume pricing is available for OEM and MRO customers.
