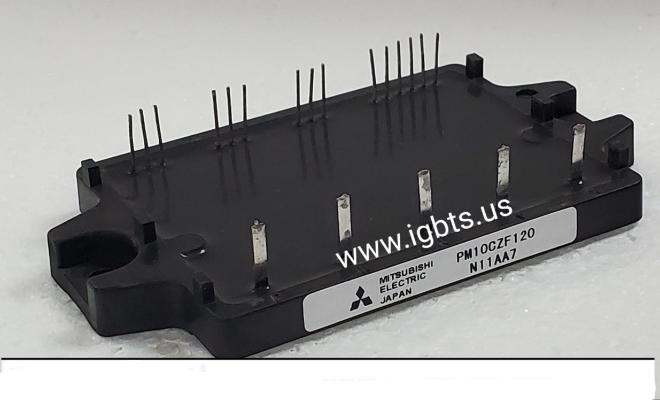

The Mitsubishi PM10CZF120 is an Intelligent Power Module (IPM) that combines IGBT power switching with integrated gate drive, overcurrent protection, short-circuit protection, and thermal shutdown circuitry in a single, compact package. Designed to meet the demands of industrial motor control and power conversion systems, this module reduces external component count, simplifies PCB layout, and provides a high level of built-in fault protection — making it a dependable solution for engineers who require both performance and system-level reliability in demanding environments.

The PM10CZF120 is well suited for a broad range of industrial and commercial applications including variable frequency drives (VFDs), AC servo amplifiers, uninterruptible power supplies (UPS), HVAC compressor drives, and general-purpose inverter systems. Its integrated protection features make it particularly valuable in applications where unplanned downtime is costly and where replacing discrete gate driver and IGBT assemblies would be time-consuming. OEMs and field maintenance teams alike rely on Mitsubishi IPMs for their proven track record in continuous-duty industrial environments.

Quick Reference: PM10CZF120

Key Features of the PM10CZF120:

• 1200 V / 10 A IGBT-based intelligent power module in a compact, thermally efficient package
• Integrated gate drive circuitry eliminates the need for external isolated gate driver ICs
• Built-in overcurrent and short-circuit protection with fault output signal for system-level diagnostics
• Thermal shutdown protection with undervoltage lockout (UVLO) on control supply rails
• Low switching losses optimized for PWM inverter operation in the 5–20 kHz frequency range
• Isolated control interface compatible with standard microcontroller and DSP-based drive platforms

With a factory lead time of 39 weeks on new production, the PM10CZF120 presents a significant procurement challenge for maintenance teams managing unplanned equipment failures and for OEMs planning production schedules. Line-down situations simply cannot wait the better part of a year for a factory order to fulfill. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time Mitsubishi power modules specifically to close this gap — providing verified, new OEM product when and where it is needed most, without the risk associated with unvetted secondary-market sources.

ATI Accurate Technology is headquartered in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and power modules — including obsolete and long-lead-time parts across all major manufacturers. The PM10CZF120 is in stock and available for same-day shipping on orders received before 5PM EST. Volume pricing is available for OEM and MRO procurement programs. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss your project requirements.
