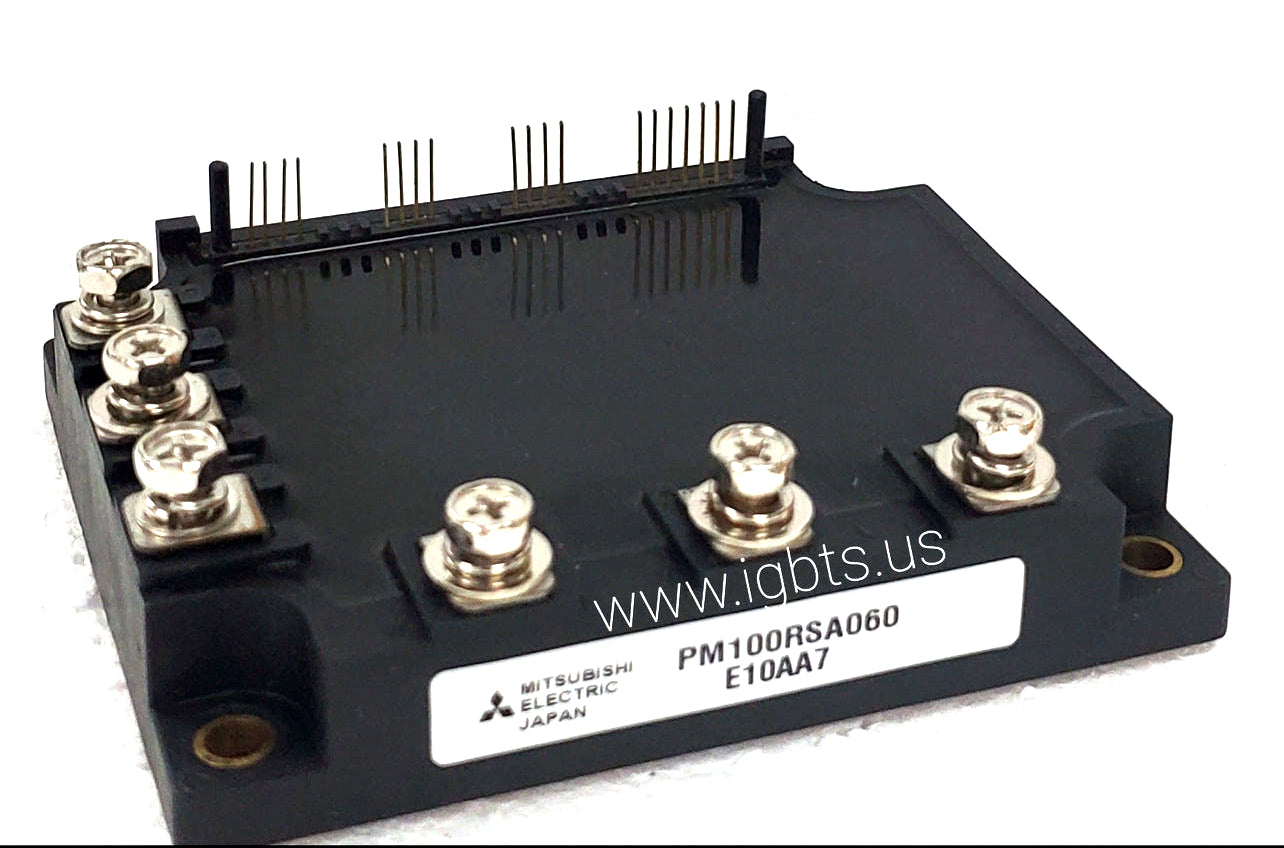

The Mitsubishi PM100RSA060 is a 100A, 600V Intelligent Power Module (IPM) combining high-speed IGBT chips with monolithically integrated gate drive and protection logic in a single compact package. This level of integration reduces external component count, tightens switching performance, and ensures consistent protection response times critical in high-reliability power conversion systems. The PM100RSA060 is designed to meet the rigorous demands of variable-frequency drive and servo amplifier designs where switching efficiency, thermal management, and fault response are non-negotiable engineering requirements.

The PM100RSA060 is well-suited for industrial AC motor drives, servo controllers, UPS systems, and general-purpose inverter platforms operating from 400V-class supply rails. Its integrated protection suite — covering overcurrent, short-circuit, undervoltage lockout, and overtemperature — significantly reduces design complexity and accelerates time-to-market for OEM drive manufacturers. The module's isolated base plate and industry-standard footprint make it a practical drop-in solution for both new designs and field replacement of aging drive hardware across a wide range of industrial automation applications.

Quick Reference: PM100RSA060

Key Features of the PM100RSA060:

• 600V / 100A IGBT-based Intelligent Power Module with integrated gate drive circuitry
• Built-in overcurrent and short-circuit protection with fast fault response and alarm output signal
• Integrated undervoltage lockout (UVLO) prevents mis-firing under low supply conditions
• On-chip overtemperature protection via internal NTC thermistor or thermal shutdown circuit
• Isolated baseplate construction supports standard heatsink mounting with simplified thermal interface
• Optimized for PWM inverter topologies in 400V-class three-phase motor drive and servo applications

With a factory lead time of 37 weeks on new production orders, the PM100RSA060 presents a real procurement challenge for facilities managing unplanned equipment failures or production-critical drive repairs. Mitsubishi IPMs of this generation are widely deployed across legacy industrial drive platforms, and sourcing replacement units through standard distribution channels often means extended downtime or costly workarounds. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power modules specifically to close this gap for maintenance teams and procurement professionals who cannot afford to wait on factory schedules.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and power modules including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same-day. Contact our team for volume pricing, cross-reference assistance, or urgent fulfillment needs. Call 239-734-7566 or email sales@igbts.us — we're ready to support your operation.
