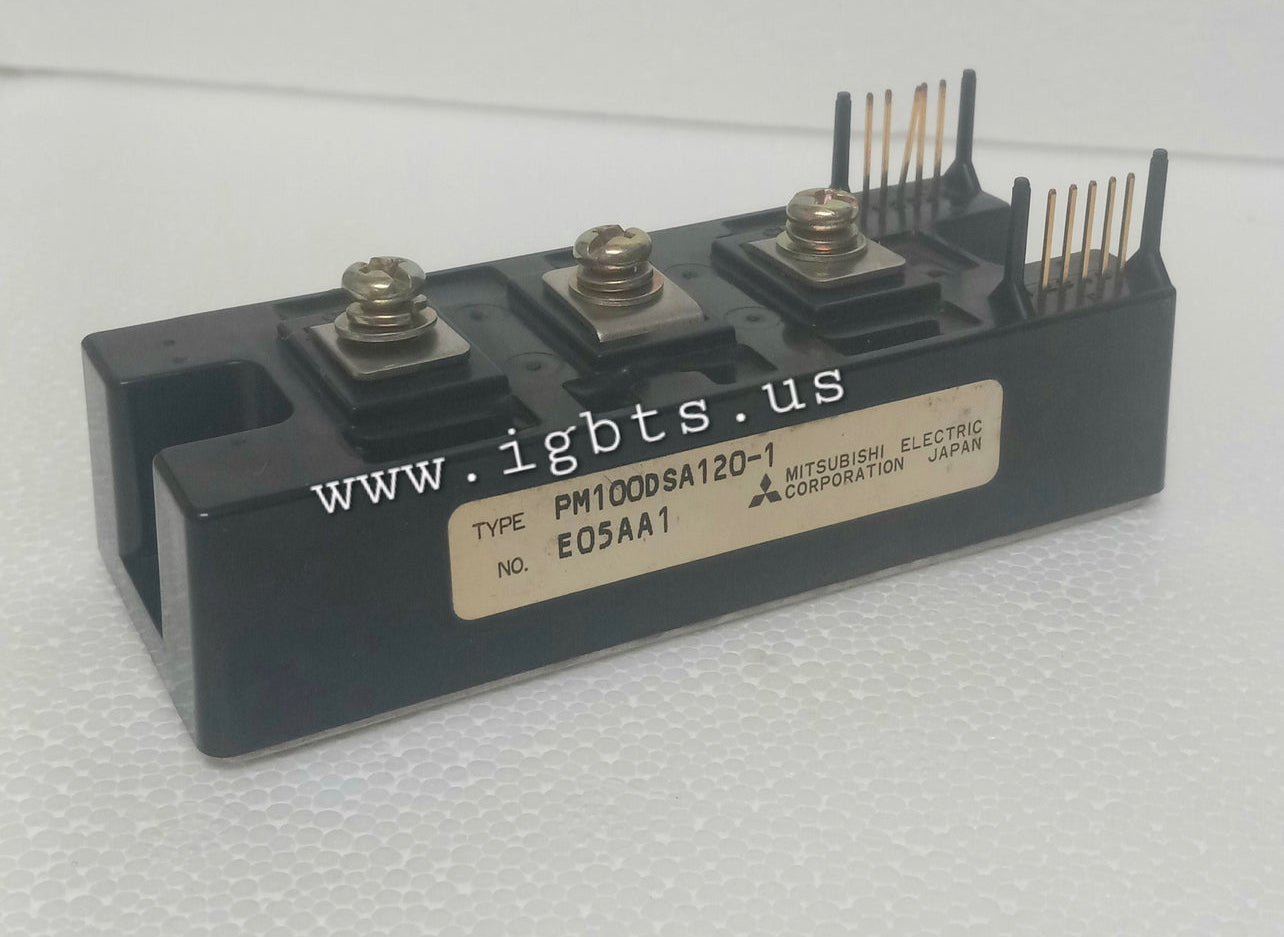

The Mitsubishi PM100DSA120-1 is a 100A, 1200V Intelligent Power Module (IPM) that combines high-voltage IGBTs with integrated gate drive circuits, bootstrap power supply circuitry, and comprehensive protection functions — including overcurrent, short-circuit, undervoltage lockout, and overtemperature detection — into a single, application-ready package. This level of integration dramatically reduces external component count, simplifies PCB layout, and shortens design-to-production timelines, making it a preferred choice for engineers who demand both performance and reliability in high-power conversion systems.

The PM100DSA120-1 is purpose-built for three-phase AC motor drives, servo amplifiers, uninterruptible power supplies (UPS), and general-purpose industrial inverters operating in harsh environments. Its robust thermal design and fault output signaling make it well-suited for use in CNC machinery, HVAC compressor drives, crane and hoist controls, pump and fan variable frequency drives, and industrial automation platforms where uptime is non-negotiable. The module's compact form factor supports high power density designs without sacrificing the thermal or electrical margins required in 24/7 industrial service.

Quick Reference: PM100DSA120-1

Key Features of the PM100DSA120-1:

• 100A continuous collector current with 1200V collector-emitter voltage (VCES) rating, suitable for 690V AC bus architectures
• Integrated gate drive circuitry with internal bootstrap power supply, eliminating the need for isolated external gate driver ICs
• Built-in protection functions: overcurrent (OC), short-circuit (SC), undervoltage lockout (UVLO), and overtemperature (OT) with fault output signal for system-level interlock
• Low-inductance package design minimizes switching transients and supports high switching frequency operation for reduced motor harmonic content
• Isolated copper base plate and optimized thermal interface for direct heatsink mounting, supporting high power dissipation in continuous-duty applications
• Drop-in compatible with Mitsubishi's established DSA-series IPM platform, simplifying maintenance and cross-generational board compatibility

With a confirmed factory lead time of 99 weeks, the PM100DSA120-1 is effectively unavailable through standard distribution channels for nearly two years. For maintenance engineers facing equipment failures, or procurement teams managing production continuity, this presents a serious operational risk. ATI Accurate Technology specializes in sourcing exactly these kinds of long-lead-time, hard-to-find, and obsolete power semiconductors. Our inventory of the PM100DSA120-1 allows customers to bypass the factory queue entirely and receive genuine OEM parts without the wait.

ATI Accurate Technology is stocked and ready to ship the PM100DSA120-1 today from our Palmetto, Florida facility. Orders placed before 5PM EST ship same day. Whether you need a single replacement module or volume quantities for MRO or OEM production, ATI offers competitive pricing and responsive service. Contact our power electronics team directly at 239-734-7566 or sales@igbts.us for pricing, availability confirmation, and volume discount inquiries.
