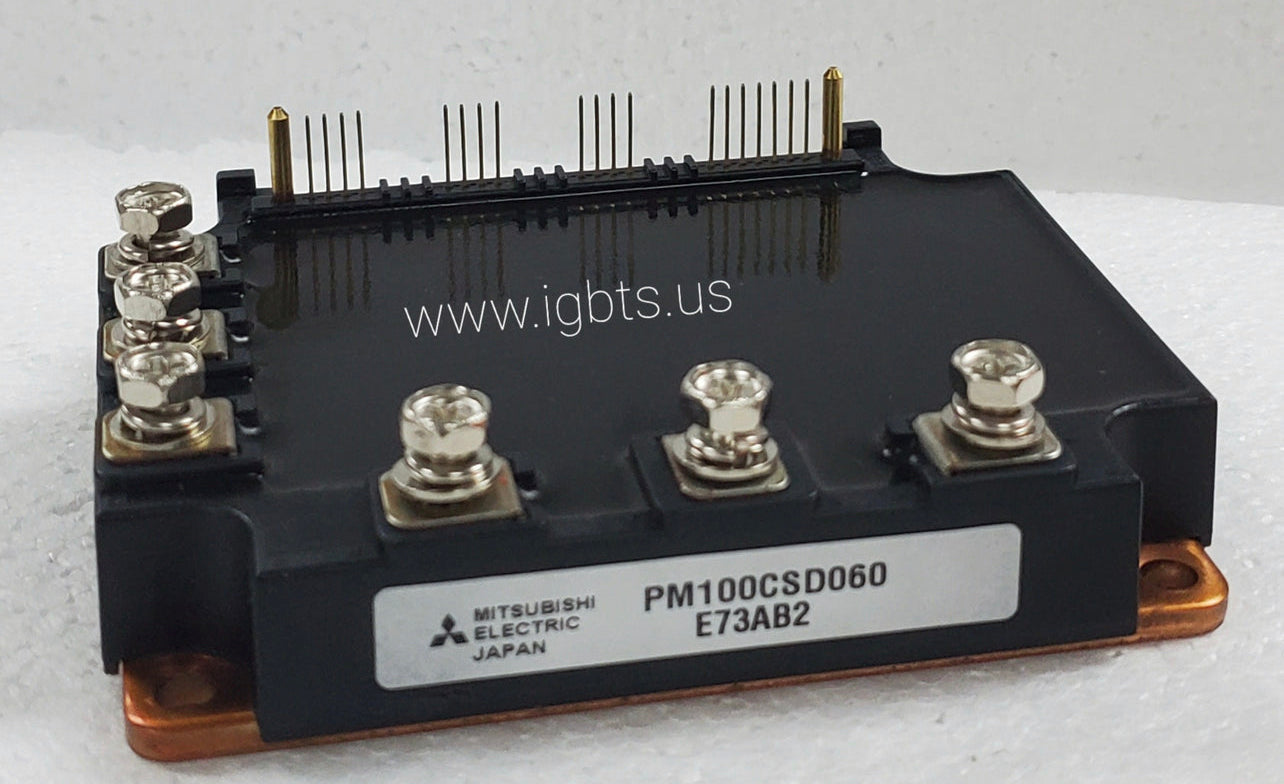

The Mitsubishi PM100CSD060 is a 100A, 600V Intelligent Power Module (IPM) combining high-speed IGBT chips with integrated gate drive, overcurrent protection, undervoltage lockout, and temperature monitoring in a single compact package. This level of integration reduces external component count, shortens design cycles, and improves system reliability in demanding power conversion environments. The PM100CSD060 is engineered for low switching losses and stable performance across industrial temperature ranges, making it a proven solution where efficiency and protection are equally critical.

The PM100CSD060 is widely deployed in AC motor drives, servo amplifiers, UPS systems, and industrial inverters where a robust, self-protected power stage is essential. Its integrated fault output simplifies system-level fault handling for PLCs and DSP-based controllers. The module is well suited for HVAC compressor drives, crane and hoist controls, pump and fan variable frequency drives, and regenerative drive topologies. OEMs and MRO teams across industrial automation, material handling, and process control regularly specify this Mitsubishi IPM for both new builds and field replacements.

Quick Reference: PM100CSD060

Key Features of the PM100CSD060:

• 100A collector current and 600V VCES rating for robust margin in 400V-class drive applications
• Integrated gate drive circuitry eliminates the need for discrete gate resistors and isolated gate drive power supplies per switch
• Built-in overcurrent and short-circuit protection with fault signal output for rapid system-level response
• Undervoltage lockout (UVLO) on control supply prevents erratic switching during power sequencing events
• On-chip NTC thermistor output enables real-time junction temperature monitoring and system-level thermal derating
• Isolated control signal inputs compatible with 3.3V and 5V logic for direct DSP or microcontroller interfacing

With a factory lead time of 37 weeks on new production, the PM100CSD060 presents a significant procurement challenge for maintenance teams managing unplanned downtime or engineers in active production. End-of-life drives, discontinued OEM equipment, and supply chain gaps routinely leave facilities without a clear path to a fast replacement. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time Mitsubishi IPMs specifically to close that gap — providing verified new OEM parts without the wait tied to direct factory orders or unreliable spot-market sources.

ATI Accurate Technology is based in Palmetto, Florida and ships same-day on orders received before 5PM EST. Whether you need a single replacement module or volume quantities for a production build, our team provides fast quotes and competitive pricing. Contact us at 239-734-7566 or sales@igbts.us for immediate availability confirmation, volume pricing, and application support on the PM100CSD060 and related Mitsubishi power modules.
