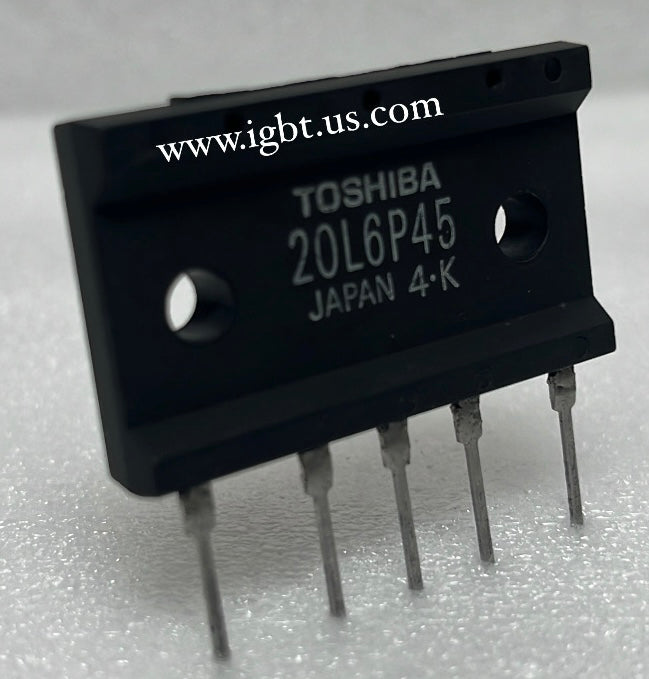

The 20L6P45-TOSHIBA is a six-pack IGBT module rated for 20A continuous collector current and a 450V blocking voltage, configured in a full three-phase bridge topology. This integrated package consolidates six IGBT switches and their freewheeling diodes into a single housing, reducing switching losses and simplifying thermal management. The module is engineered for high-frequency switching in compact industrial power conversion equipment where board space, reliability, and repeatable gate-drive performance are critical design priorities.

Six-pack IGBT modules in this voltage and current class are widely deployed in variable frequency drives (VFDs), servo amplifiers, uninterruptible power supplies (UPS), solar micro-inverters, and auxiliary traction converters. The 20A/450V rating suits low-to-mid power three-phase loads — typically fractional to 5 kW drive systems — where a self-contained bridge reduces assembly complexity. HVAC compressor drives, pump controls, CNC spindle drives, and regenerative elevator controls are representative end-use applications that benefit from this module's compact six-switch integration.

Quick Reference: 20L6P45-TOSHIBA

Key Features of the 20L6P45-TOSHIBA:

• Six-pack (3-phase full bridge) IGBT topology with integrated freewheeling diodes — eliminates discrete switch assembly
• 450V collector-emitter voltage (VCES) providing adequate margin for 230–400V AC bus applications with transient headroom
• 20A rated collector current supporting fractional to mid-range three-phase inverter designs up to approximately 5 kW
• Low saturation voltage (VCE(sat)) characteristic typical of Toshiba IGBT process technology, reducing conduction losses at rated current
• Isolated baseplate construction for direct heatsink mounting, simplifying thermal interface and mechanical assembly
• Compact single-package footprint compatible with standard power module mounting hardware and industry-common gate-drive IC references

The 20L6P45-TOSHIBA represents a product line that has reached end-of-life or extended lead-time status through standard distribution channels, making replacement sourcing a recurring challenge for MRO teams and OEM repair depots. Drives and inverters built around this module may still be in active service, and a failed unit can mean costly production downtime when stock is unavailable. ATI Accurate Technology maintains inventory of hard-to-find, obsolete, and long-lead Toshiba IGBT modules precisely to support these critical repair and sustaining production scenarios without forcing costly redesigns.
