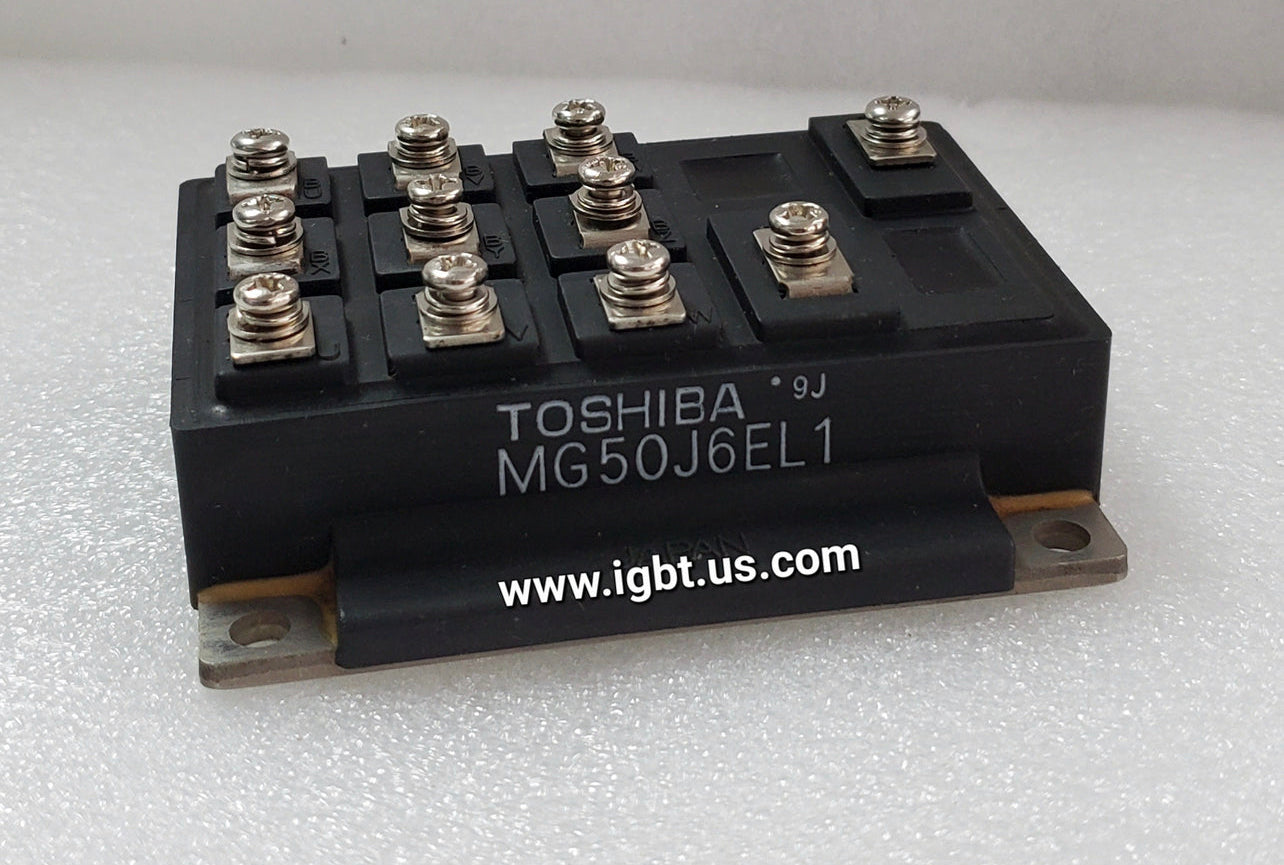

The Toshiba MG50J6EL1 is a 50-ampere, 600-volt insulated gate bipolar transistor (IGBT) module engineered for demanding power conversion applications where switching efficiency and thermal reliability are critical. As part of Toshiba's EL-series module lineup, the MG50J6EL1 features a low collector-to-emitter saturation voltage (V_CE(sat)), integrated freewheeling diodes, and an isolated baseplate construction that simplifies heatsink mounting and system integration. This module is well-suited for engineers designing or maintaining medium-power inverter and drive platforms requiring a compact, robust switching solution.

The MG50J6EL1 sees broad deployment across industrial and commercial power electronics, including variable frequency drives (VFDs), AC servo motor controllers, UPS systems, induction heating equipment, and switch-mode power supplies. Its 600V blocking voltage and 50A continuous current rating make it a go-to selection for three-phase inverter bridges and chopper circuits operating from standard 400V AC line supplies. OEM machine builders and field service engineers maintaining legacy drive platforms will find this module a direct, reliable replacement in systems where downtime is costly.

Quick Reference: MG50J6EL1

Key Features of the MG50J6EL1:

• 600V collector-emitter blocking voltage (V_CES) suitable for 400V AC bus applications with adequate derating margin
• 50A continuous collector current rating with high peak current capability for demanding transient load conditions
• Low V_CE(sat) characteristic reduces conduction losses and lowers heat dissipation requirements at the module level
• Integrated antiparallel freewheeling diodes eliminate external diode components and simplify inverter leg design
• Electrically isolated copper baseplate enables direct mounting to standard heatsinks without additional isolation hardware
• Compatible with standard IGBT gate drive circuits operating at 15V / -8V bipolar supply for reliable turn-on and turn-off control

With a current factory lead time of 99 weeks, sourcing the MG50J6EL1 through standard distribution channels is not a viable option for most production schedules or emergency maintenance situations. Equipment running Toshiba EL-series modules — particularly older CNC drives, elevator inverters, and industrial HVAC systems — simply cannot wait nearly two years for a replacement part. Procurement teams managing MRO inventory and field engineers facing unplanned downtime need a stocking distributor with verified OEM product on hand. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time Toshiba IGBT modules precisely for these situations.

ATI Accurate Technology is a power semiconductor specialist based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules from leading manufacturers including Toshiba. The MG50J6EL1 ships same-day on orders placed before 5PM EST. Volume pricing is available for OEM builders and MRO stocking programs. Contact our team directly at 239-734-7566 or sales@igbts.us for quotes, lead-time confirmation, and application support.
