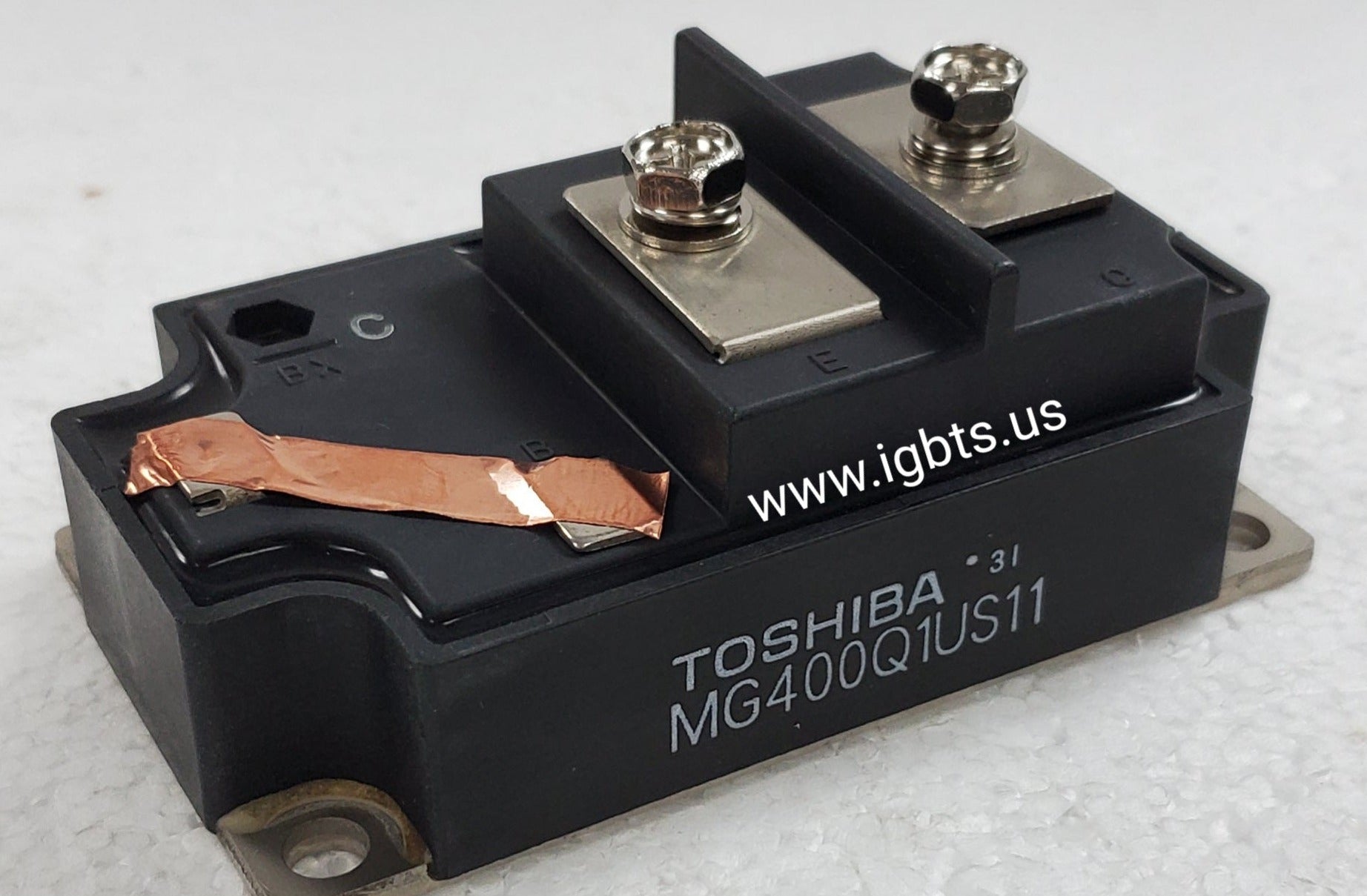

The Toshiba MG400Q1US11 is a 400A, 600V single-switch IGBT power module engineered for high-efficiency performance in industrial-grade power electronics. Housed in a standard press-pack-compatible isolated base package, this module offers low V_CE(sat) characteristics and fast, controlled switching transitions. The MG400Q1US11 is well-suited for applications requiring robust current handling with consistent thermal performance across demanding duty cycles. Its construction reflects Toshiba's proven IGBT fabrication standards, making it a reliable choice for OEM designs and field replacement scenarios alike.

The MG400Q1US11 is widely deployed in AC and DC motor drives, industrial inverters, UPS systems, and servo amplifier platforms where dependable high-current switching is critical. It is also found in welding equipment, induction heating systems, and traction power converters that demand long service life under repetitive load cycling. Maintenance engineers frequently specify this module for retrofit and repair of legacy drive systems where the original IGBT assembly must be matched precisely. Its 600V blocking voltage makes it appropriate for standard three-phase 380–480V industrial bus topologies.

Quick Reference: MG400Q1US11

Key Features of the MG400Q1US11:

• 600V collector-emitter breakdown voltage with 400A continuous collector current rating for high-power switching stages
• Low V_CE(sat) reduces conduction losses and minimizes heat generation during sustained high-current operation
• Integrated freewheeling diode optimized for fast reverse recovery, reducing switching losses in inverter bridge circuits
• Isolated copper base plate construction simplifies thermal interface mounting and improves heat dissipation to external heatsinks
• Gate drive compatible with standard IGBT driver ICs; designed for stable operation across typical gate resistor and voltage ranges used in industrial drives
• Toshiba's proven IGBT chip geometry provides consistent switching characteristics over temperature, reducing derating requirements in thermally challenged enclosures

With a factory lead time of 99 weeks, the MG400Q1US11 represents exactly the type of long-lead-time, hard-to-source component that can halt production lines and delay critical repairs. Toshiba's power module portfolio has seen extended allocation periods across the industry, making distributor stock the only practical option for most maintenance and procurement timelines. ATI Accurate Technology maintains inventory of difficult-to-source IGBT modules precisely for these situations — allowing engineers and buyers to avoid the multi-year waits associated with direct factory ordering or unreliable gray-market channels.

ATI Accurate Technology is located in Palmetto, Florida and specializes in power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. In-stock orders ship same day when placed before 5PM EST. Contact our team for volume pricing, cross-reference support, or urgent sourcing needs: 239-734-7566 | sales@igbts.us | igbts.us
