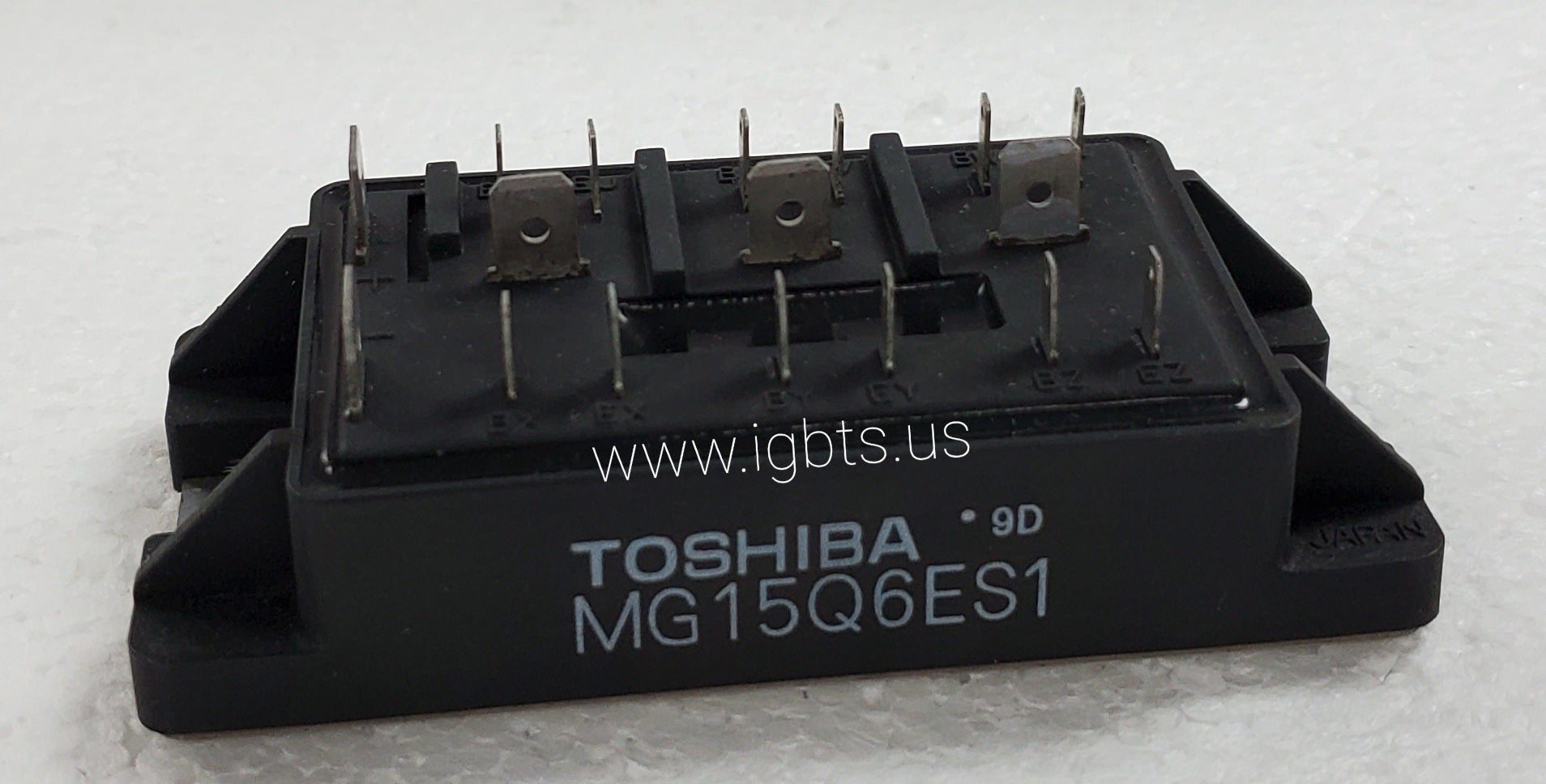

The Toshiba MG15Q6ES1 is a 600V, 15A IGBT power module engineered for efficient switching performance in industrial power conversion systems. Built to Toshiba's established module platform, it integrates IGBT die with high-voltage isolation and a robust baseplate construction suited for heatsink mounting. The device operates across a wide gate drive range and offers low saturation voltage characteristics that reduce conduction losses in continuous-duty applications. Engineers specifying this module benefit from a well-characterized switching profile that simplifies thermal and gate drive design in cost-sensitive or space-constrained power stages.

The MG15Q6ES1 is well suited for AC motor drives, servo amplifiers, UPS systems, and general-purpose inverter platforms operating from rectified single- or three-phase mains. Its 600V blocking voltage provides adequate margin for 400V-class bus applications, and the 15A current rating supports fractional to low-horsepower drive topologies. Equipment OEMs and repair facilities rely on this module in CNC machine tool drives, HVAC variable-frequency drives, conveyor controls, and industrial welding inverters where consistent switching behavior and thermal durability are critical to system uptime.

Quick Reference: MG15Q6ES1

Key Features of the MG15Q6ES1:

• 600V collector-emitter voltage (VCES) providing reliable margin on 400V DC bus architectures
• 15A continuous collector current rating for fractional and low-horsepower inverter stages
• Low VCE(sat) characteristics minimizing conduction losses and reducing heatsink thermal requirements
• Isolated baseplate construction enabling direct heatsink mounting without additional isolation hardware
• Optimized gate charge and switching times compatible with standard IGBT gate driver ICs
• Toshiba-qualified IGBT die technology offering consistent lot-to-lot switching parameter uniformity

The MG15Q6ES1 carries a factory lead time of 99 weeks through standard distribution channels, placing it firmly in the category of long-lead-time and effectively constrained components. Equipment running legacy drive platforms or performing unplanned field repairs cannot wait nearly two years for new production. Procurement teams supporting installed base equipment, MRO stocking programs, or end-of-life system maintenance face real scheduling risk when this module is not pre-stocked. ATI Accurate Technology maintains inventory of hard-to-find and obsolescence-threatened power semiconductors precisely to bridge this gap for maintenance and supply chain professionals.

ATI Accurate Technology is based in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules – including obsolete and long-lead-time parts like the MG15Q6ES1. Orders placed before 5PM EST ship same day. Volume pricing is available for MRO stocking and OEM procurement programs. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss application requirements.
