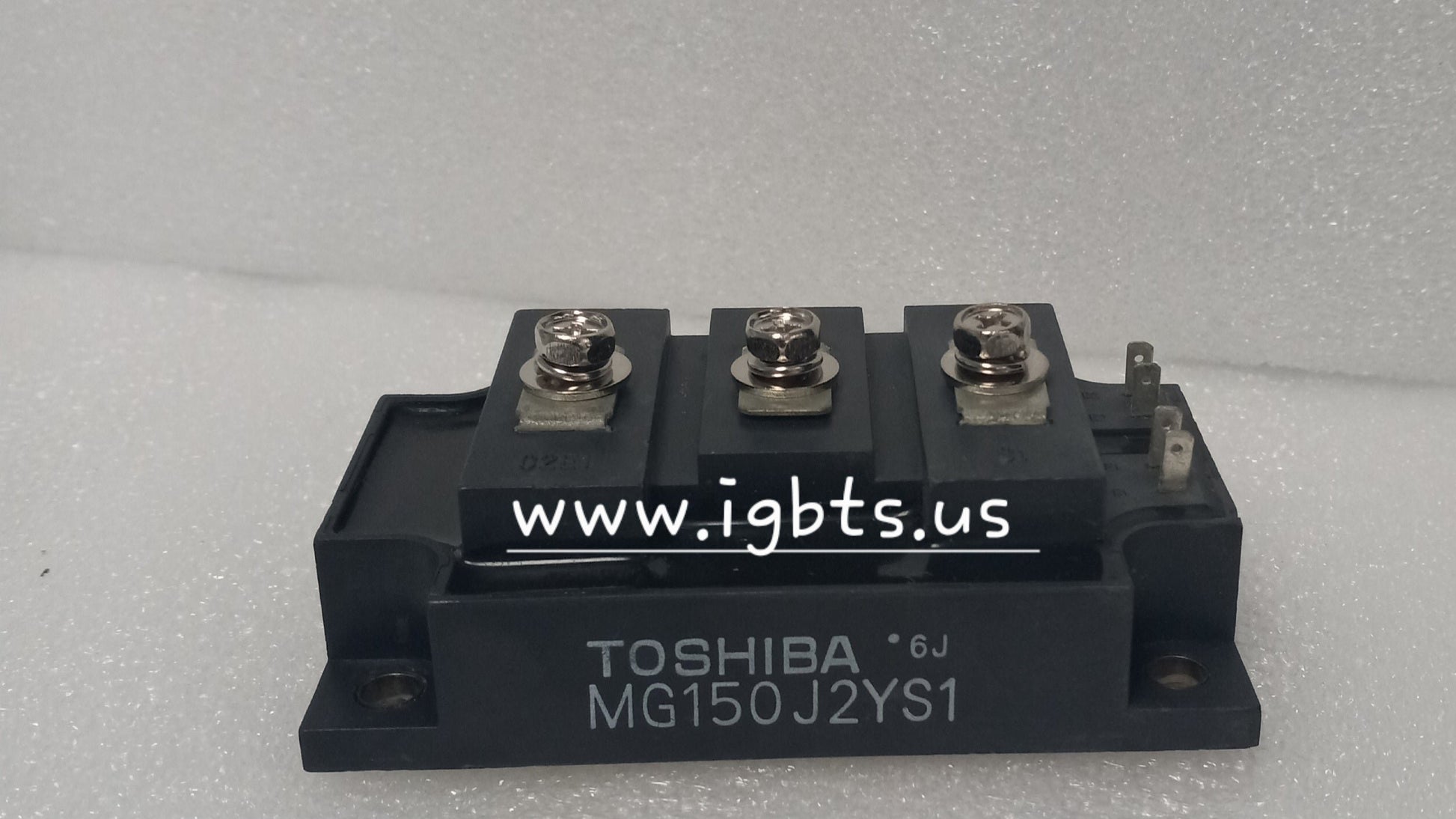

The Toshiba MG150J2YS1 is a 150-ampere, 600-volt IGBT power module engineered for medium-to-high power switching applications requiring low conduction losses and stable thermal performance. Housed in a standard isolated base module package, the MG150J2YS1 integrates an IGBT with a freewheeling diode in a configuration suited for inverter leg and chopper circuit topologies. Its rugged construction and proven gate characteristics make it a preferred choice for engineers designing or maintaining industrial power conversion equipment across a wide range of demanding duty cycles.

The MG150J2YS1 sees widespread deployment in AC motor drives, servo amplifiers, induction heating systems, uninterruptible power supplies, and solar inverter platforms. Its 600V blocking voltage and 150A continuous collector current rating make it suitable for three-phase inverter stages in industrial automation and process control machinery. OEM equipment manufacturers and MRO teams maintaining legacy drive systems frequently specify this module as a direct replacement, making reliable stock availability a high-priority concern for production uptime and field service operations.

Quick Reference: MG150J2YS1

Key Features of the MG150J2YS1:

• 150A continuous collector current (IC) with 600V collector-emitter voltage (VCES) rating for robust mid-range power density
• Integrated freewheeling diode co-packaged with IGBT die for simplified inverter circuit design and reduced external component count
• Isolated copper base plate construction enables direct heatsink mounting and efficient thermal dissipation in high duty-cycle operation
• Low saturation voltage (VCE(sat)) minimizes conduction losses and reduces thermal stress during continuous switching operation
• Industry-standard module footprint supports direct form-fit-function replacement in existing drive and inverter hardware without PCB redesign
• Optimized gate charge characteristics support switching frequencies compatible with industrial inverter and motor drive control schemes

The MG150J2YS1 carries a published factory lead time of 99 weeks through standard distribution channels — nearly two years from order to delivery on new production. For maintenance teams facing unplanned equipment failures or procurement professionals managing safety stock for critical systems, that timeline is operationally unacceptable. Obsolescence risk compounds the challenge, as Toshiba's legacy IGBT module lines are not guaranteed for indefinite production continuation. Sourcing from a stocking distributor with verified OEM inventory is the only reliable path to avoiding extended downtime or costly system redesigns when this module is needed.

ATI Accurate Technology is a power semiconductor specialist stocking the MG150J2YS1 from our Palmetto, Florida facility. We ship same-day on orders received before 5PM EST, and our team supports volume pricing for MRO stockrooms and OEM production runs. Contact us at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss your broader IGBT and power module sourcing requirements.
