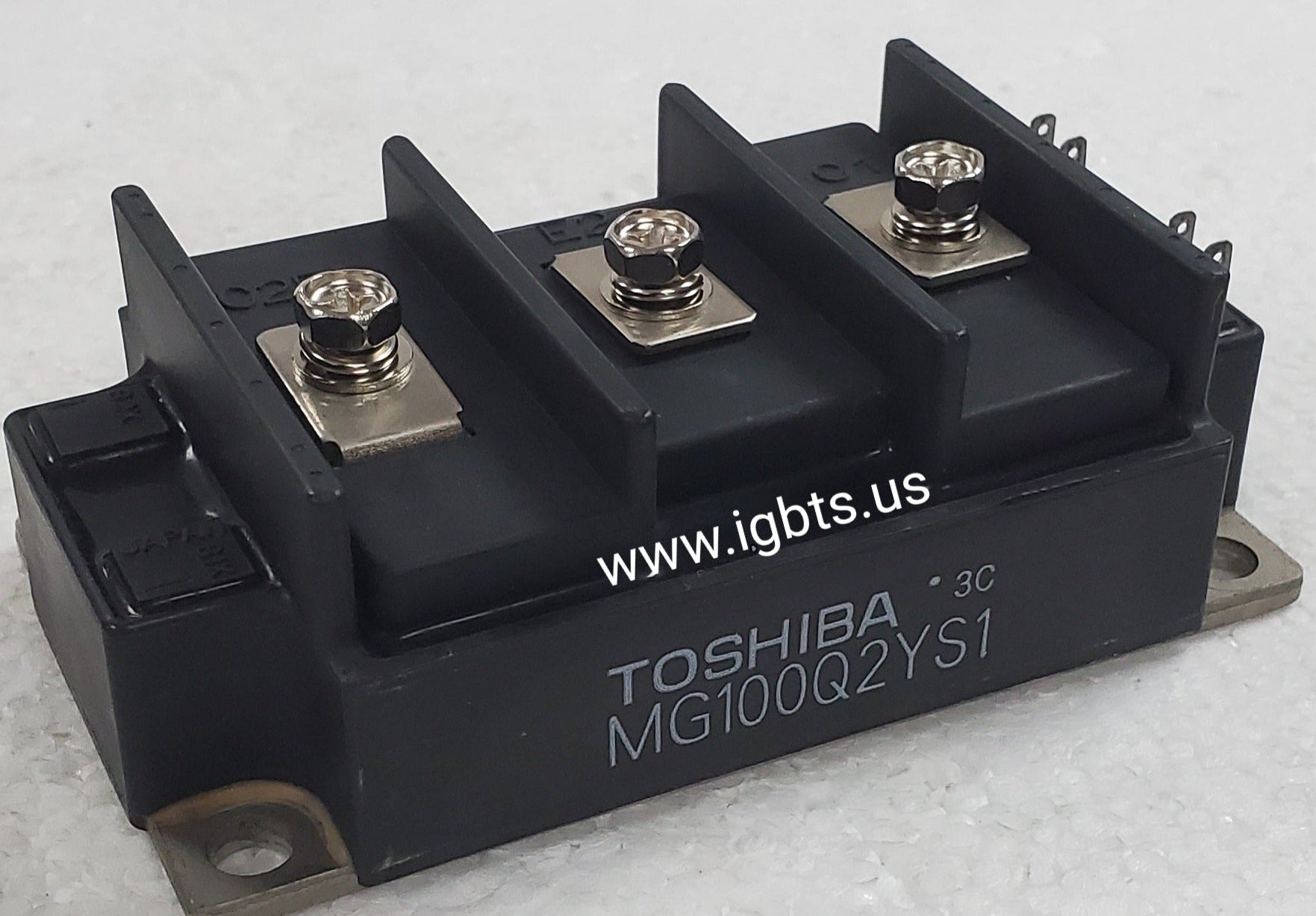

The Toshiba MG100Q2YS1 is a discrete IGBT power module engineered for high-current switching applications in industrial power conversion systems. Built to Toshiba's proven Q2YS1 platform, this module integrates IGBT die with high-speed, low-loss characteristics suited for PWM inverter operation. Its robust package construction supports the thermal cycling demands of continuous-duty environments, making it a dependable choice for engineers designing or maintaining equipment where switching losses, junction temperature management, and gate drive compatibility are primary design constraints.

The MG100Q2YS1 sees widespread use across AC motor drives, servo amplifiers, induction heating systems, UPS inverters, and industrial welding equipment. Its current and voltage ratings place it squarely in mid-to-heavy industrial drive platforms where reliable gate turn-off performance and low saturation voltage directly impact system efficiency and uptime. OEMs and MRO teams supporting CNC machinery, HVAC variable frequency drives, and regenerative braking systems frequently specify this module as a direct replacement or upgrade path when servicing legacy power stages.

Quick Reference: MG100Q2YS1

Key Features of the MG100Q2YS1:

• 100A continuous collector current rating for sustained high-load switching duty cycles
• Low V_CE(sat) characteristic reduces conduction losses and heat generation in inverter stages
• Integrated freewheeling diodes optimized for fast recovery to minimize reverse recovery losses in PWM topologies
• Isolated baseplate construction simplifies heatsink mounting and electrical isolation in multi-module configurations
• Designed for compatibility with standard IGBT gate drive circuits operating in the 15V gate voltage range
• Robust module package rated for high thermal cycling endurance in continuous industrial duty applications

With a current factory lead time of 99 weeks, the MG100Q2YS1 is effectively unavailable through standard distribution channels on any timeline that supports real-world production or maintenance demands. For engineers managing aging drive platforms or procurement teams building safety stock against Toshiba's extended manufacturing queue, waiting on new production is rarely a viable option. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time IGBT modules precisely for these situations, providing immediate access to genuine OEM parts when the supply chain cannot.

ATI Accurate Technology is located in Palmetto, Florida, and ships same-day on orders placed before 5PM EST. Whether you need a single replacement module or volume quantities for a scheduled maintenance program, our team is ready to assist. Contact us at 239-734-7566 or sales@igbts.us for real-time stock confirmation, datasheet support, and volume pricing on the MG100Q2YS1 and related Toshiba power semiconductor products.
