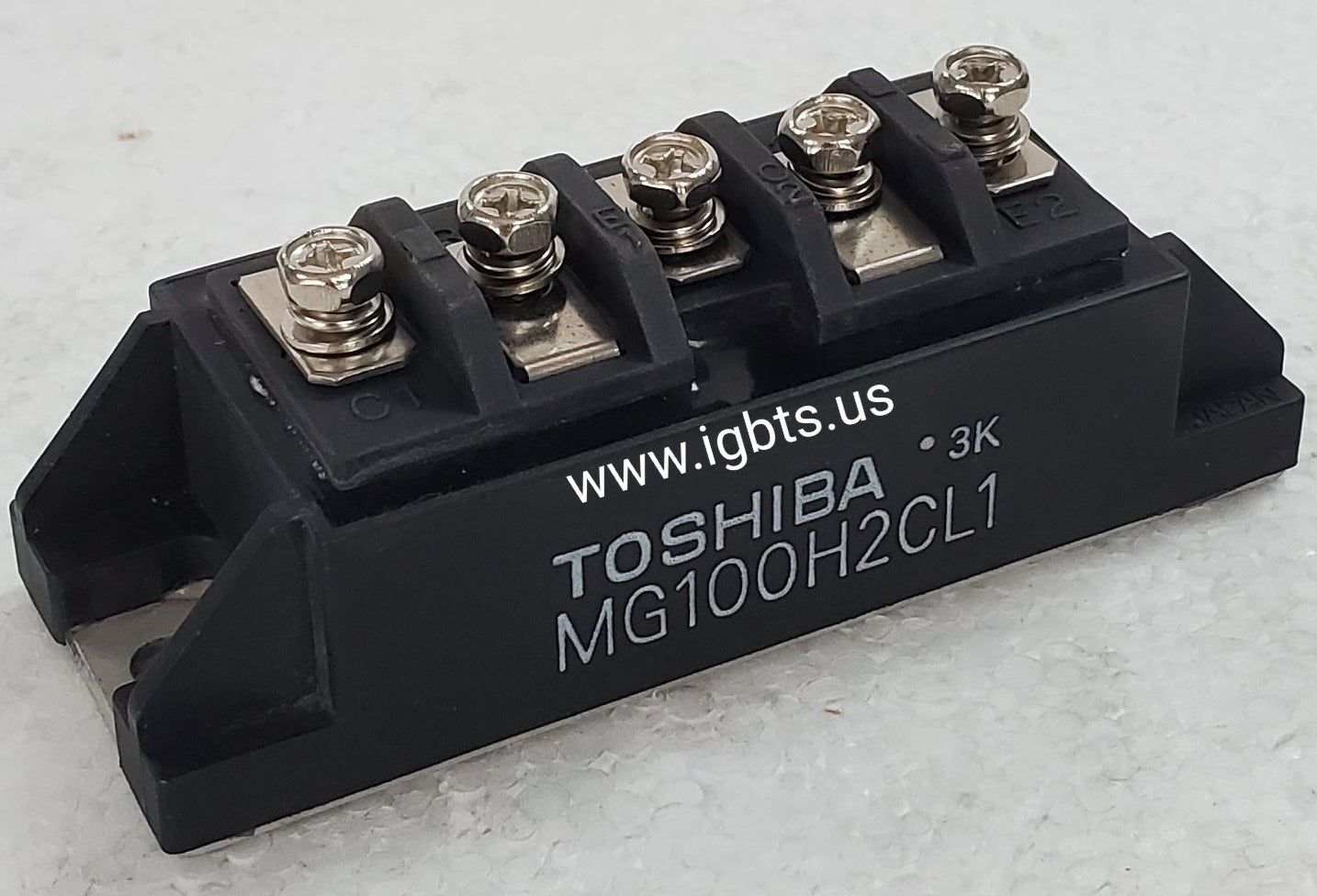

The Toshiba MG100H2CL1 is a 100A, 600V IGBT power module engineered for high-frequency switching applications where efficiency, thermal stability, and switching speed are paramount. Built to Toshiba's established IGBT module architecture, this device integrates insulated gate bipolar transistor technology with a robust package suitable for hard-switching and soft-switching converter topologies. The MG100H2CL1 is a trusted solution for design engineers and maintenance professionals who require dependable performance in continuous-duty industrial environments, and its specifications align closely with common 600V-class drive and inverter platforms.

The MG100H2CL1 sees widespread use in AC motor drives, servo amplifiers, UPS systems, induction heating equipment, and industrial inverters where 600V-class switching devices are standard. Its 100A current rating makes it well suited for mid-range drive systems powering pumps, compressors, conveyors, and CNC machine tools. The module is also deployed in regenerative drive platforms and active front-end rectifier stages. Maintenance engineers replacing failed modules in legacy drive cabinets will find the MG100H2CL1 a direct fit across a range of OEM equipment platforms that specified Toshiba IGBT modules during original manufacture.

Quick Reference: MG100H2CL1

Key Features of the MG100H2CL1:

• 100A collector current rating with 600V VCES for robust margin in 400V-class inverter designs
• Low VCE(sat) characteristics reduce conduction losses and improve overall converter efficiency
• Integrated freewheeling diode optimized for fast recovery to minimize switching losses at elevated frequencies
• Isolated baseplate construction enables direct heatsink mounting with standard thermal interface materials
• Gate drive compatible with standard IGBT driver ICs operating at ±15V bias — no special driver hardware required
• Package and pinout consistent with Toshiba H-series module family, simplifying drop-in replacement on existing PCB and busbar layouts

With a current factory lead time of 99 weeks on new production, the MG100H2CL1 presents a serious procurement challenge for facilities facing unplanned downtime or scheduled maintenance windows. Toshiba has rationalized portions of its legacy IGBT module line, making distributor stock the primary — and often only — reliable source for this part number. Waiting on factory allocation is not a viable option when production equipment is at risk. ATI maintains inventory of hard-to-find and long-lead-time Toshiba IGBT modules specifically to serve customers who cannot afford extended delays on critical power semiconductor replacements.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or urgent sourcing requests: call 239-734-7566 or email sales@igbts.us. Visit us at igbts.us.
