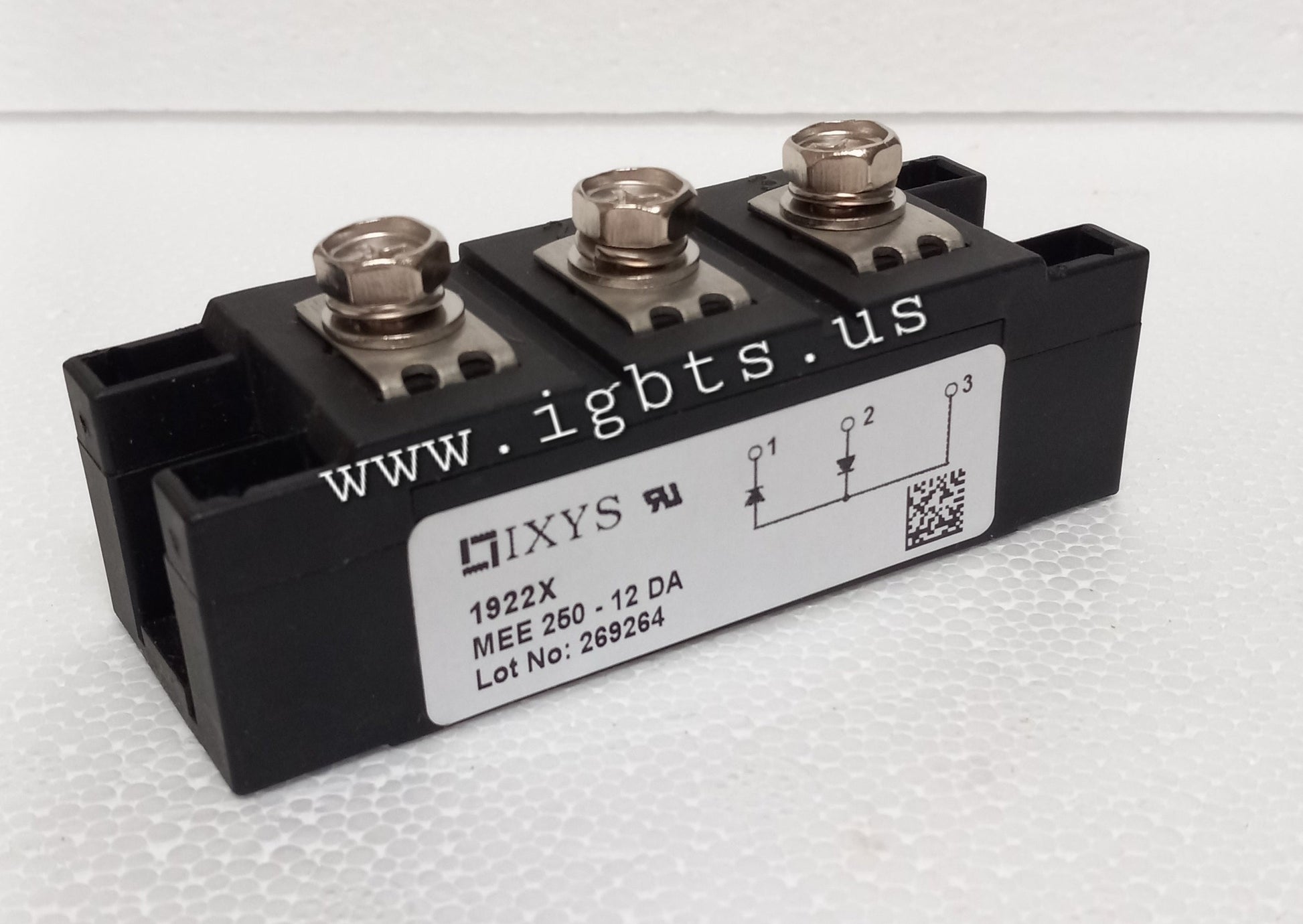

The IXYS MEE250-12DA is a robust high-current diode module engineered for industrial-grade power conversion applications. Rated at 250 amperes continuous current and 1200 volts repetitive peak reverse voltage, this module is well-suited for use as a freewheeling diode, rectifier, or clamping element in demanding environments. IXYS modules in the MEE series are known for their low forward voltage drop, high surge current capability, and reliable thermal performance, making them a preferred choice for engineers designing medium-to-high power systems.

The MEE250-12DA finds wide application across a broad range of industrial and commercial power electronics platforms. Typical uses include AC/DC rectifier stages in industrial drives, regenerative braking circuits, uninterruptible power supplies (UPS), welding equipment, traction converters, and renewable energy inverters. Its high blocking voltage of 1200V provides sufficient margin for systems operating from three-phase mains, while the 250A current rating supports high-throughput power stages without the need for parallel device configurations in many designs.

Quick Reference: MEE250-12DA

Key Features:

• High continuous forward current rating of 250A for demanding power applications
• 1200V repetitive peak reverse voltage providing robust blocking capability
• Low forward voltage drop for improved system efficiency and reduced heat generation
• High surge current (IFSM) capability to withstand transient fault conditions
• Isolated base plate for flexible mounting and simplified heat sink integration
• Compact module package reduces PCB footprint and simplifies mechanical assembly

Sourcing high-current diode modules like the MEE250-12DA can be a challenge, particularly when dealing with long lead times from standard distribution channels or when production lines require immediate replacement parts. ATI Accurate Technology specializes in exactly these situations — stocking hard-to-find, long-lead-time, and obsolete power semiconductors including IXYS diode modules, IGBT modules, thyristors, and rectifier assemblies. Whether you need a single unit for a repair or a larger quantity for ongoing production, ATI is equipped to meet your requirements quickly and reliably.

ATI Accurate Technology is located in Palmetto, Florida and serves customers across North America and internationally. Contact our sales team today at 239-734-7566 or email sales@igbts.us. Orders placed before 5PM EST qualify for same-day shipping, minimizing downtime and keeping your operations running.
