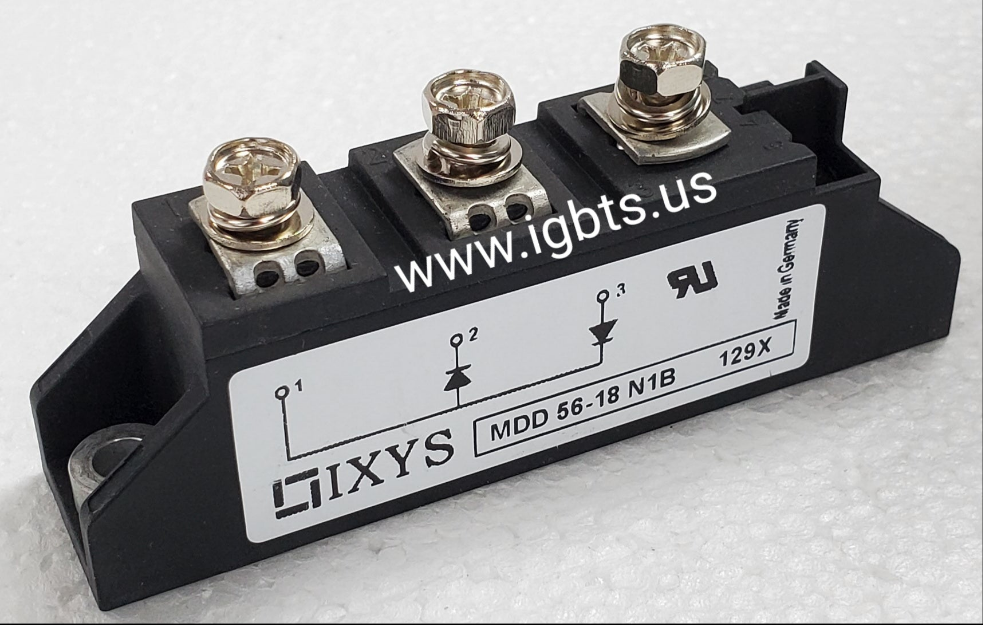

The MDD56-18N1B is a high-voltage diode module from IXYS, rated for 56A continuous current and 1800V repetitive peak reverse voltage. Housed in a compact, industry-standard module package, it delivers reliable full-wave rectification and freewheeling performance in high-stress power electronic circuits. IXYS engineered this module for low forward voltage drop and excellent thermal cycling endurance, making it a dependable choice where voltage margin and thermal stability are non-negotiable requirements in continuous-duty industrial environments.

The MDD56-18N1B sees widespread use across industrial and commercial power electronics platforms. Typical applications include three-phase AC/DC rectifiers, regenerative motor drive front ends, welding power supplies, UPS systems, and solar inverter topologies requiring robust blocking capability. Its high 1800V voltage class provides essential headroom in 690V AC bus systems and other applications with significant transient overvoltage exposure. The module format simplifies heatsink integration and reduces assembly time compared to discrete diode configurations, making it a practical choice for both OEM builds and field replacement.

Quick Reference: MDD56-18N1B

Key Features of the MDD56-18N1B:

• 1800V repetitive peak reverse voltage (VRRM) for high-margin operation on 690V AC systems
• 56A average forward current rating suitable for medium-power rectifier and freewheeling circuits
• Low forward voltage drop (VF) minimizing conduction losses and reducing heatsink thermal requirements
• Industry-standard module footprint enabling direct replacement in existing drive and converter platforms
• Isolated baseplate construction for safe, direct mounting to grounded heatsinks without additional insulation hardware
• Designed for high thermal cycling endurance and long service life in continuous industrial duty applications

With a factory lead time of 35 weeks for new production, the MDD56-18N1B presents a genuine procurement challenge for maintenance teams managing unplanned downtime or project timelines. IXYS modules at this voltage class are frequently subject to extended allocation periods, and waiting on factory delivery is rarely an option when critical equipment is offline. Sourcing from a stocking distributor with verified new OEM inventory eliminates lead time risk and keeps production schedules intact. Proactive stock positioning for MRO and capital project needs is strongly advisable given current market conditions on this product family.

ATI Accurate Technology is a power semiconductor specialist based in Palmetto, Florida, stocking IGBTs, diodes, thyristors, and rectifier modules including hard-to-find and long-lead-time parts like the MDD56-18N1B. Orders placed before 5PM EST ship same day. Contact our team for pricing, availability, and volume discounts at 239-734-7566 or sales@igbts.us.
