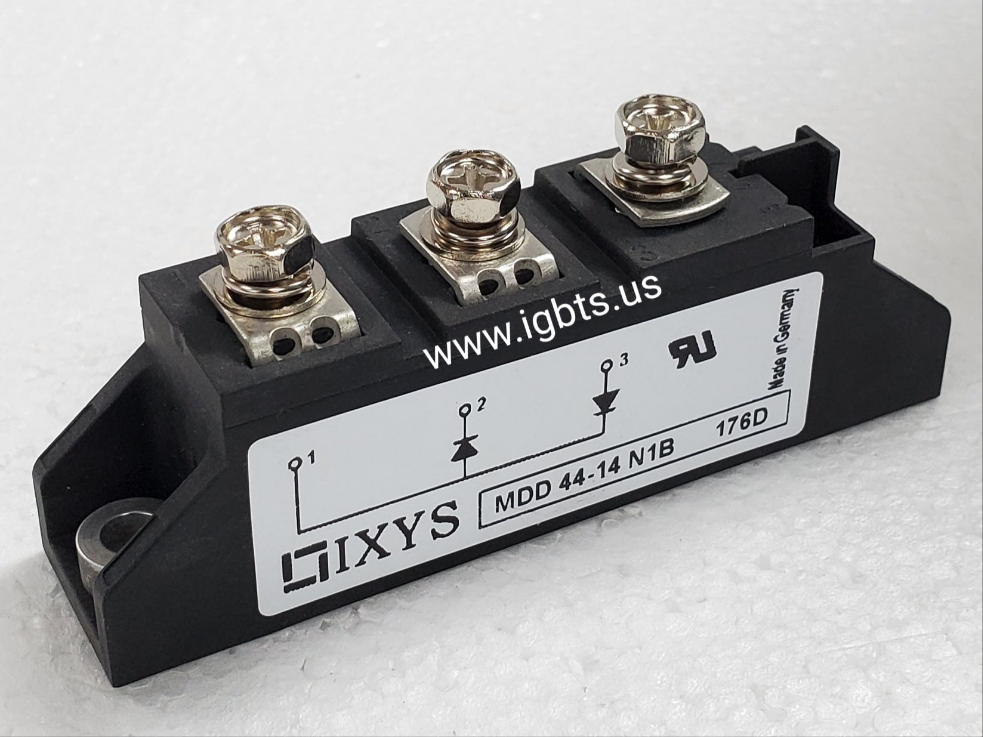

The IXYS MDD44-14N1B is a dual diode module rated for 44A continuous forward current and a 1400V repetitive peak reverse voltage (VRRM). Housed in an industry-standard isolated base package, this module delivers reliable rectification with low forward voltage drop and excellent surge current capability. The isolated copper baseplate simplifies thermal management when mounting to heatsinks, making it well suited for designs requiring high voltage blocking, efficient heat dissipation, and long service life in demanding electrical environments.

The MDD44-14N1B is a proven solution in a broad range of industrial power electronics applications. Typical uses include three-phase bridge rectifiers, freewheeling diode stages in motor drive systems, input rectification in UPS and inverter platforms, welding power supplies, and DC bus charging circuits. Its 1400V blocking voltage provides a comfortable safety margin in 690VAC line-connected systems, while the 44A current rating accommodates mid-range power stage designs. Energy infrastructure equipment, crane and hoist drives, and industrial heating systems also rely on modules in this class.

Quick Reference: MDD44-14N1B

Key Features of the MDD44-14N1B:

• 1400V repetitive peak reverse voltage (VRRM) for robust blocking margin in high-line AC applications
• 44A average forward current (IFAV) supporting mid-range rectifier and freewheeling diode configurations
• High surge current (IFSM) rating for reliable performance during startup transients and fault conditions
• Isolated copper baseplate construction enabling direct heatsink mounting without additional isolation hardware
• Low forward voltage drop (VF) minimizing conduction losses and reducing thermal load on the heatsink assembly
• Industry-standard dual diode topology compatible with common-cathode or common-anode circuit configurations

With a 28-week factory lead time from IXYS, procurement teams sourcing the MDD44-14N1B through standard distribution channels can face serious delays that disrupt production schedules or halt critical equipment repairs. This is particularly challenging for aging drive systems, legacy rectifier assemblies, and installed base equipment where downtime costs are significant. ATI Accurate Technology specializes in stocking hard-to-find, long-lead-time, and obsolete power semiconductors precisely to bridge this gap. Our inventory of the MDD44-14N1B allows maintenance engineers and procurement professionals to bypass the factory queue entirely and ship same day.

ATI Accurate Technology is located in Palmetto, Florida, and ships same-day on orders placed before 5PM EST. We stock new OEM IXYS modules and offer volume pricing for MRO and OEM purchase programs. Reach our power semiconductor specialists directly at 239-734-7566 or email sales@igbts.us for availability confirmation, datasheets, and quotes. Count on ATI when lead times and uptime matter.
