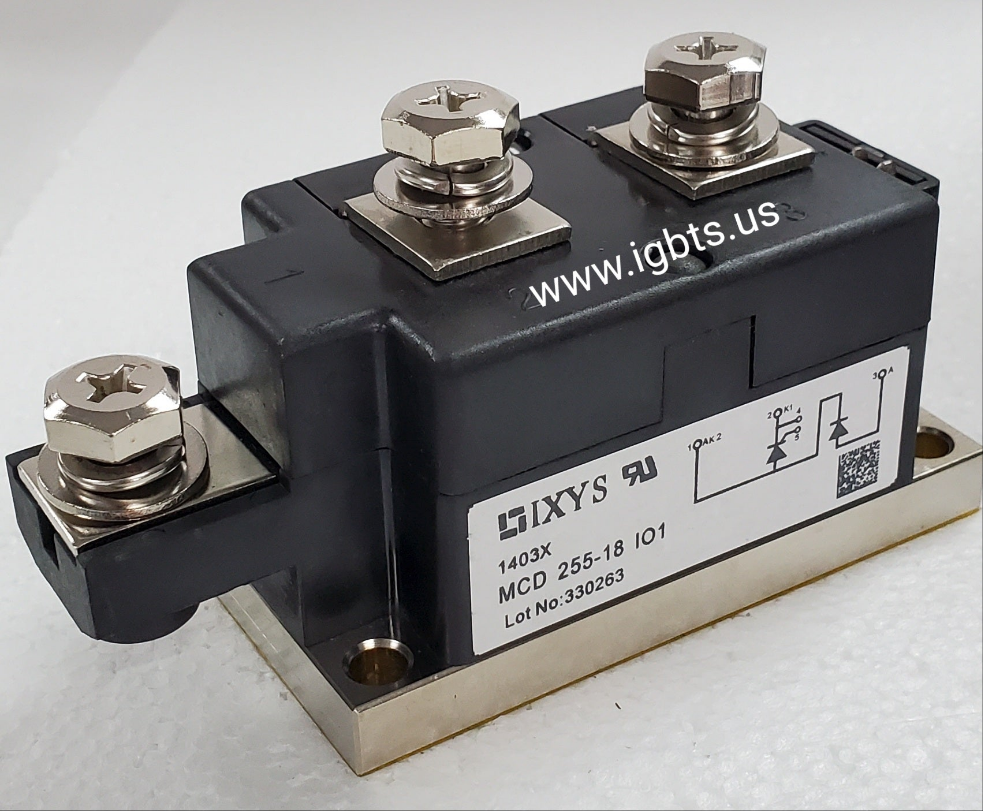

The IXYS MCD255-18IO1 is a high-current dual diode rectifier module delivering 255A average forward current and a 1800V repetitive peak reverse voltage (VRRM). Housed in a compact isolated-base power module package, this device is optimized for demanding rectification, freewheeling, and blocking applications where thermal performance and reliability are non-negotiable. The isolated copper baseplate enables direct mounting to heatsinks without additional isolation hardware, simplifying mechanical integration and reducing thermal resistance in high-density power assemblies.

The MCD255-18IO1 is a proven workhorse across a broad range of industrial power electronics. Typical deployment scenarios include three-phase bridge rectifiers in AC motor drives and soft starters, DC bus charging circuits in industrial inverters, freewheeling diode positions in chopper and converter stages, uninterruptible power supply (UPS) front-ends, and electrochemical process rectifiers. Its high blocking voltage margin makes it particularly valuable in 690V AC line applications and other environments where transient overvoltages demand additional headroom.

Quick Reference: MCD255-18IO1

Key Features of the MCD255-18IO1:

• 255A average forward current (IF(AV)) with isolated copper baseplate for low thermal resistance to heatsink
• 1800V repetitive peak reverse voltage (VRRM) providing robust margin for 690V AC and higher-voltage bus applications
• Dual diode configuration supports common-cathode or common-anode circuit topologies in a single compact package
• Low forward voltage drop (VF) minimizes conduction losses and reduces thermal load at full rated current
• Isolated base construction rated for high-voltage creepage and clearance, eliminating the need for separate isolation pads in most designs
• Industry-standard mounting footprint ensures form-fit-function compatibility with existing IXYS and equivalent competitor module layouts

With a factory lead time of 33 weeks for new production, the MCD255-18IO1 presents a serious procurement challenge for maintenance teams facing unplanned equipment failures or production line downtime. Long lead times on IXYS power modules are common across the industry, and obsolescence risk compounds the problem as legacy drive and converter platforms age. Sourcing from a stocking distributor is the only practical path to a fast turnaround. ATI Accurate Technology maintains inventory of hard-to-find, long-lead-time, and obsolete power semiconductors precisely for these situations, providing engineers and buyers with a reliable alternative to extended factory wait times.

ATI Accurate Technology is headquartered in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules for industrial and commercial power electronics. Orders placed before 5PM EST ship same-day. Contact our team for volume pricing, cross-reference assistance, or urgent replacement sourcing. Call 239-734-7566 or email sales@igbts.us — we're ready to help you get back online fast.
