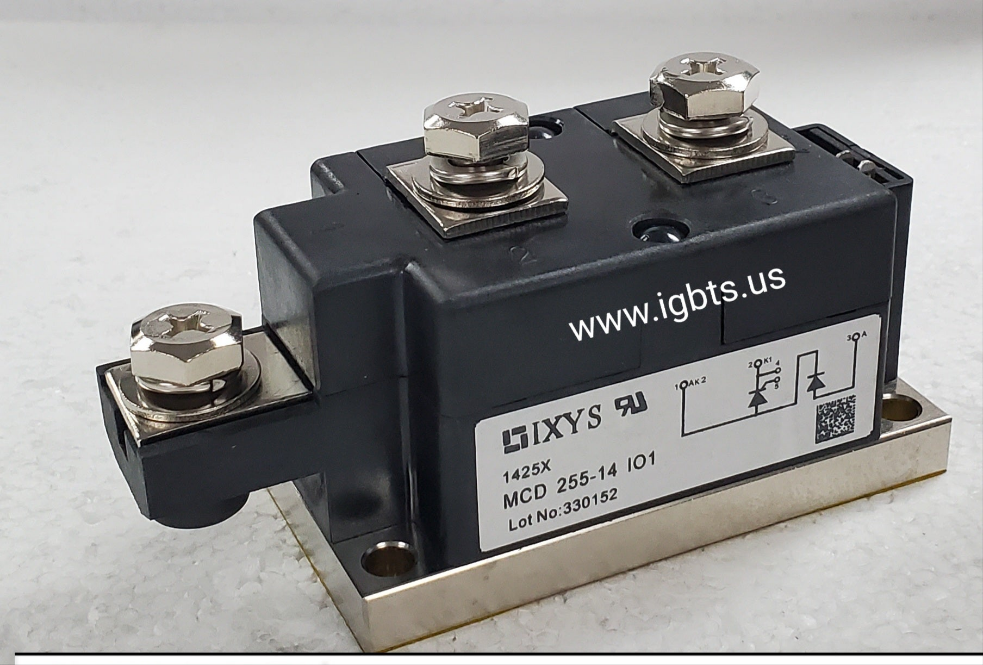

The IXYS MCD255-14IO1 is a high-power thyristor/diode combination module rated at 255A average on-state current and 1400V repetitive peak reverse voltage (VRRM). Built into a robust, industry-standard power module package, this device integrates a controlled thyristor element with a freewheeling or blocking diode, optimized for demanding controlled rectifier topologies. Its low thermal resistance and isolated baseplate construction simplify heatsink integration in high-density power assemblies, making it a dependable choice for engineers designing or maintaining high-current industrial power conversion equipment.

The MCD255-14IO1 is widely deployed across heavy industrial sectors requiring reliable AC-to-DC power conversion and motor control. Typical applications include DC motor drives for hoists, cranes, extruders, and rolling mills; phase-controlled rectifiers in electrochemical and plating systems; excitation systems for large generators and synchronous motors; UPS and battery charging infrastructure; and industrial heating control. Its combination of high current capacity and 1400V voltage class makes it especially suited for 690VAC line-connected systems where margin against voltage transients is critical.

Quick Reference: MCD255-14IO1

Key Features of the MCD255-14IO1:

• 255A average on-state current (IT(AV)) supporting high-power controlled rectifier stages
• 1400V repetitive peak reverse voltage (VRRM) for robust margin in 690VAC-class systems
• Integrated thyristor and diode elements in a single isolated-baseplate module package
• Low thermal resistance (Rth(j-c)) enabling efficient heat transfer to external heatsinks in compact assemblies
• Industry-standard module footprint ensuring drop-in compatibility with existing drive and converter designs
• Designed to IXYS quality standards for long operational life in continuous industrial duty cycles

With a factory production lead time of 31 weeks, procurement of the MCD255-14IO1 through standard distribution channels can result in costly downtime for maintenance teams dealing with unplanned failures, or extended project delays for OEM builds. IXYS modules in the MCD series are also increasingly difficult to source as product lines mature and distributor stock depletes. Engineers supporting legacy drive systems or specifying long-lifecycle industrial equipment cannot afford to wait out multi-month lead times. ATI Accurate Technology maintains inventory of hard-to-find IXYS power modules specifically to bridge this gap for both emergency replacement and planned production requirements.

ATI Accurate Technology is a power semiconductor specialist located in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference support, or urgent sourcing needs: call 239-734-7566 or email sales@igbts.us.
