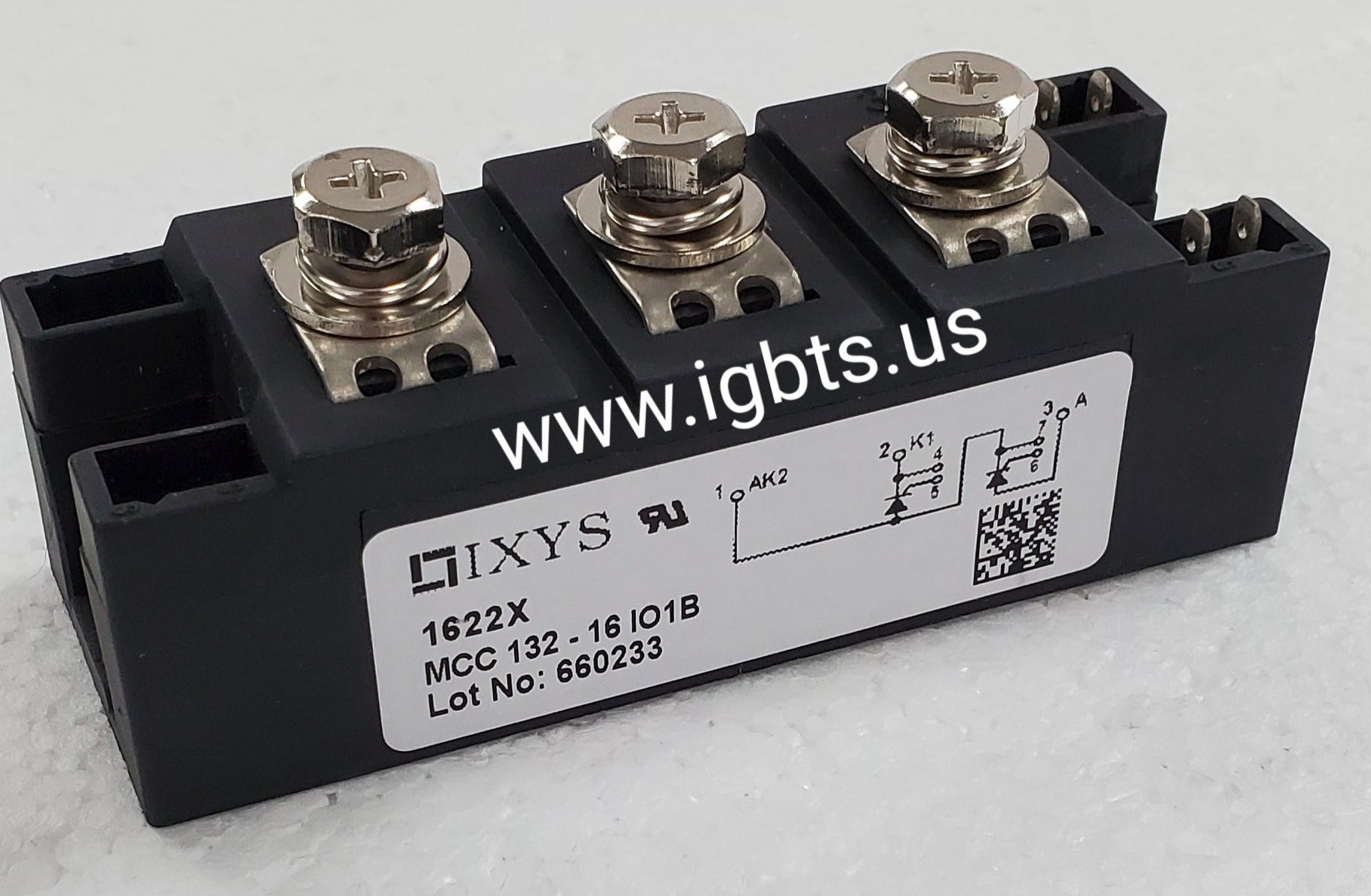

The MCC132-16IO1B is an IXYS thyristor (SCR) module combining high blocking voltage capability with robust average on-state current handling in an isolated base package. Rated at 132A and 1600V, this device is engineered for line-commutated converter circuits where dependable gate control, low thermal resistance, and high surge current immunity are non-negotiable. The isolated copper baseplate simplifies heatsink mounting and eliminates the need for additional insulating hardware, reducing assembly time and improving thermal stack integrity in high-power control cabinets.

The MCC132-16IO1B is widely deployed in industrial AC motor soft-starters, DC drive rectifier stages, resistance heating controllers, welding power supplies, and UPS input rectifier banks. Its 1600V voltage class provides adequate margin for 690VAC line applications after accounting for line transients and commutation spikes. Power electronics engineers specify this module in crane drives, rolling mill drives, and process heating systems where phase-angle firing control demands a rugged, thermally efficient SCR solution capable of sustained operation under full load cycling.

Quick Reference: MCC132-16IO1B

Key Features of the MCC132-16IO1B:

• 1600V repetitive peak off-state and reverse voltage (VDRM/VRRM) suitable for 690VAC three-phase line applications with transient margin
• 132A average on-state current rating with high surge current (ITSM) capability for reliable operation through fault and inrush events
• Isolated copper baseplate construction enables direct heatsink mounting without supplemental insulating washers, lowering Rth(c-s)
• Low thermal resistance junction-to-case (Rth(j-c)) supports high-duty-cycle phase control and continuous conduction modes
• Gate trigger requirements compatible with standard SCR firing card outputs, simplifying retrofit and OEM integration
• Industry-standard IO1B module footprint ensures mechanical and electrical interchangeability with equivalent 132A/1600V SCR modules from competing manufacturers

With a factory lead time of 25 weeks for new production, the MCC132-16IO1B presents a real procurement risk for maintenance teams managing unplanned equipment failures or for OEMs with aggressive production schedules. IXYS thyristor modules in this current and voltage class appear regularly on shortage and long-lead lists, particularly following demand surges in the industrial drives and energy sectors. Sourcing from a stocking distributor eliminates the quarter-year wait and protects uptime-critical operations from extended downtime exposure. ATI maintains inventory specifically to bridge these gaps.

ATI Accurate Technology is stocking the MCC132-16IO1B new OEM and ready to ship same-day from Palmetto, Florida on orders received before 5PM EST. Whether you need a single replacement module or volume quantities for a production build or MRO stock program, ATI offers competitive pricing and responsive support. Contact our power semiconductor specialists directly at 239-734-7566 or sales@igbts.us for pricing, lead time confirmation, and volume discount information.
