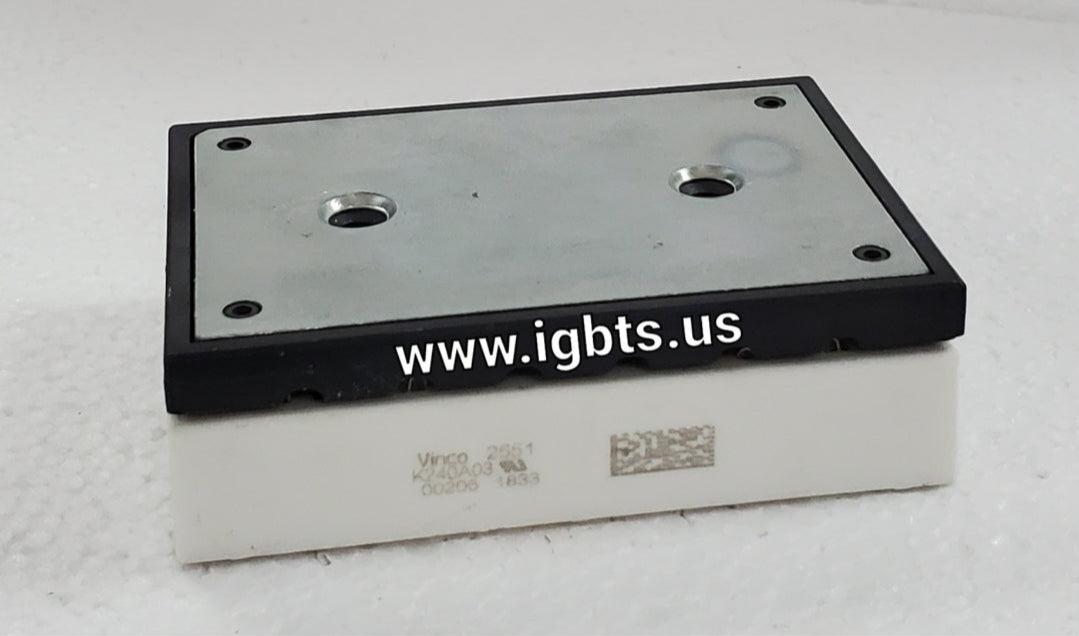

The K240A03 is a VINCO MiniSKiiP 3 series Power Integration Module (PIM) designed for demanding industrial power electronics applications. Rated at 1200V blocking voltage and 240A continuous current, this thyristor module integrates rectifier, brake chopper, and inverter stages into a single compact housing. The MiniSKiiP 3 platform is well established in variable-frequency drive and servo converter architectures, offering high power density, reliable thermal management through its pressure-contact spring technology, and simplified PCB or bus-bar mounting for system integrators and OEM designers.

The K240A03 is commonly deployed in AC motor drives, servo amplifiers, regenerative braking systems, UPS inverters, and industrial welding power supplies where robust three-phase power conversion is required. Its integrated PIM topology reduces component count and simplifies thermal design in elevator controllers, crane drives, HVAC compressor drives, and CNC machine tool spindle drives. Engineers specifying mid-to-high power density converter platforms regularly select MiniSKiiP 3 modules for their balance of switching performance, isolation voltage, and footprint efficiency in cabinet-mount and chassis-mount designs.

Quick Reference: K240A03

Key Features of the K240A03:

• 1200V repetitive peak off-state voltage (VDRM/VRRM) suitable for 690V AC bus applications
• 240A RMS current rating supporting high-power three-phase converter topologies
• MiniSKiiP 3 PIM configuration integrates rectifier bridge, IGBT inverter, and brake chopper in one module
• Spring-pressure contact mounting eliminates solder fatigue and reduces thermal interface resistance for improved long-term reliability
• Isolated baseplate construction provides high creepage and clearance distances consistent with IEC/EN safety standards
• Compatible with standard MiniSKiiP 3 gate driver and heatsink hardware, simplifying drop-in replacement in existing drive platforms

With a factory lead time of 99 weeks on new production, the K240A03 presents a significant procurement challenge for maintenance teams facing unplanned downtime or OEMs managing build schedules. VINCO MiniSKiiP 3 modules are not universally stocked by broadline distributors, and sourcing delays at this lead time can halt production lines or extend equipment outages for weeks. ATI Accurate Technology maintains relationships and sourcing channels specifically targeting long-lead-time, hard-to-find, and end-of-life power semiconductor modules — making ATI a critical resource when standard distribution channels fall short. Contacting ATI early in your procurement cycle is strongly advised.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders placed before 5PM EST. Whether you need a single replacement module or volume quantities for a scheduled maintenance program, ATI can provide competitive pricing, verified new OEM product, and fast turnaround. Call 239-734-7566 or email sales@igbts.us to confirm availability, request a quote, or discuss volume pricing on the K240A03 and related power semiconductor components.
