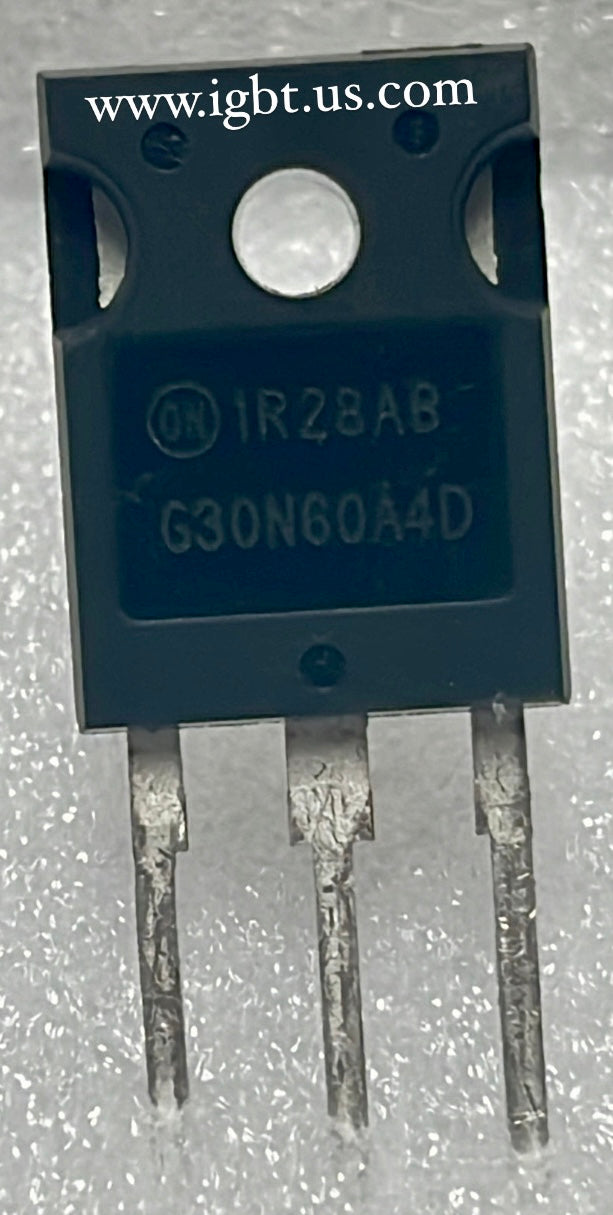

The HGTG30N60A4D-FAIRCHILD is a 60A, 600V N-Channel Insulated Gate Bipolar Transistor featuring a co-packaged ultra-fast soft-recovery anti-parallel diode. Originally produced by Fairchild Semiconductor, this device is engineered for high-frequency switching applications where low conduction losses and tight switching characteristics are critical. The IGBT's low V_CE(sat) minimizes on-state power dissipation, while the integrated diode reduces external component count and simplifies gate drive circuit design in half-bridge and full-bridge topologies.

This device is widely deployed in industrial variable frequency drives (VFDs), AC servo motor controllers, UPS and inverter systems, induction heating equipment, and welding power supplies. Its 600V blocking voltage and 60A continuous current rating make it a practical choice for three-phase motor control stages operating from standard 480VAC bus voltages. Engineers specifying replacements for aging Fairchild-branded IGBT platforms will find this part a direct fit for legacy PCB layouts without requiring gate drive redesign.

Quick Reference: HGTG30N60A4D-FAIRCHILD

Key Features of the HGTG30N60A4D-FAIRCHILD:

• 60A continuous collector current with 600V V_CEO blocking voltage for robust margin in 480VAC bus applications
• Low V_CE(sat) reduces conduction losses and thermal stress across the full operating current range
• Integrated ultra-fast soft-recovery anti-parallel diode minimizes reverse recovery losses and suppresses voltage spikes in bridge circuits
• Optimized for switching frequencies up to 20kHz, balancing switching and conduction loss trade-offs in PWM inverter stages
• TO-247 through-hole package provides low thermal resistance to heatsink and simplifies mechanical mounting in power stage assemblies
• Gate threshold voltage and transconductance characteristics compatible with standard 15V/0V or 15V/-8V bipolar gate drive schemes

Fairchild Semiconductor's HGTG30N60A4D has been subject to allocation constraints and extended lead times following Fairchild's acquisition and subsequent product line consolidations. For maintenance teams managing aging industrial equipment or procurement teams supporting MRO inventories, sourcing a reliable supply of this exact part number can be a significant challenge. ATI Accurate Technology maintains dedicated stock of hard-to-find, long-lead-time, and obsolete power semiconductors precisely to address these gaps, ensuring continuity of supply without forcing costly system redesigns or unplanned downtime.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders received before 5PM EST. Whether you need a single replacement unit or volume quantities for MRO stock, our team is ready to assist. Contact us directly at 239-734-7566 or sales@igbts.us for real-time availability, volume pricing, and technical support. We specialize in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and allocated parts that are difficult to source elsewhere.
