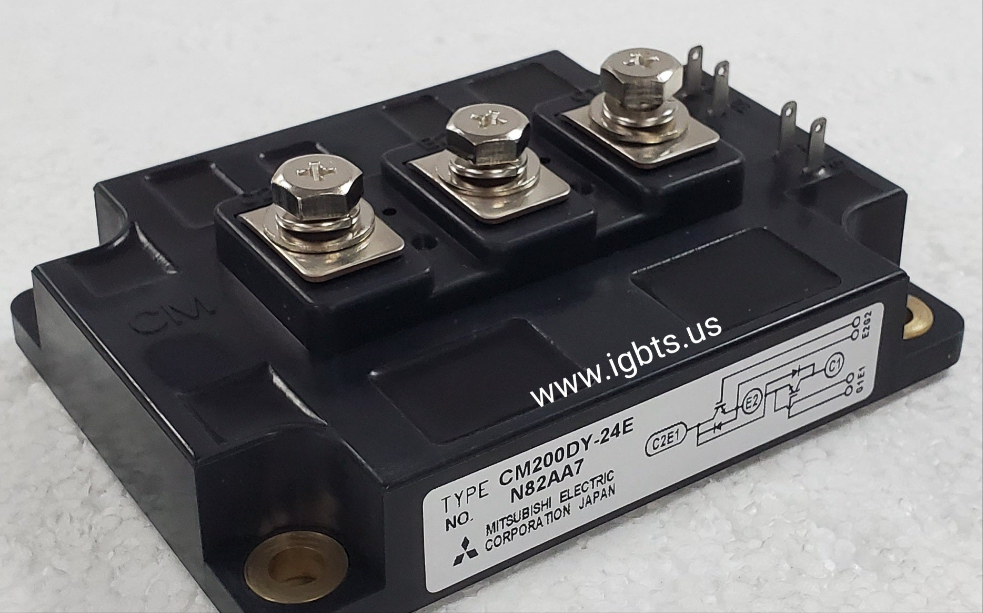

The Mitsubishi CM200DY-24E is a 200A, 1200V Dual IGBT module (2-in-1 configuration) from the well-established CM-series power semiconductor line. Each module integrates two IGBT chips with co-packaged freewheeling diodes, offering a low-inductance, thermally efficient package suited for demanding switching environments. With a collector-emitter voltage (VCES) of 1200V and a continuous collector current of 200A, the CM200DY-24E is engineered for the high-reliability standards required in industrial and commercial power conversion equipment operating across wide temperature ranges and duty cycles.

The CM200DY-24E is widely deployed in AC motor drives, variable frequency drives (VFDs), UPS systems, induction heating equipment, and industrial servo amplifiers. Its dual-switch topology simplifies phase-leg assembly in three-phase inverter stacks, reducing board complexity and gate driver count. The module is also found in traction control systems, welding inverters, and medium-voltage power supplies where robust switching at high current levels is critical to system uptime and efficiency. OEMs and MRO teams across manufacturing, oil and gas, HVAC, and material handling rely on this part for both new builds and field replacements.

Quick Reference: CM200DY-24E

Key Features of the CM200DY-24E:

• 1200V collector-emitter breakdown voltage (VCES) with 200A continuous collector current rating for robust high-power switching
• Dual (2-in-1) IGBT configuration with integrated inverse parallel freewheeling diodes, minimizing external component count in inverter phase legs
• Low saturation voltage (VCE(sat)) design reduces conduction losses and thermal stress at high duty cycles
• Isolated copper baseplate construction provides efficient heat transfer to heatsink and electrical isolation from mounting surface
• Compatible with standard Mitsubishi CM-series gate driver circuits, simplifying drop-in replacement in existing drive platforms
• Designed for switching frequencies suitable for industrial inverter applications, balancing switching loss and EMI performance

With a factory lead time of 42 weeks for new production, the CM200DY-24E presents a significant procurement challenge for maintenance teams managing unplanned downtime or MRO schedules. Extended lead times on Mitsubishi IGBT modules are common across the industry, and relying solely on factory orders can leave critical equipment offline for months. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power semiconductors specifically to bridge this gap. Whether you need a single emergency replacement or are building buffer stock against future demand, ATI provides immediate access to verified new OEM parts without the wait.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules for industrial and commercial customers nationwide. Orders placed before 5PM EST ship same day. For pricing, volume orders, or technical questions on the CM200DY-24E, contact our team directly at 239-734-7566 or sales@igbts.us. Volume pricing is available for qualified buyers and stocking orders.
