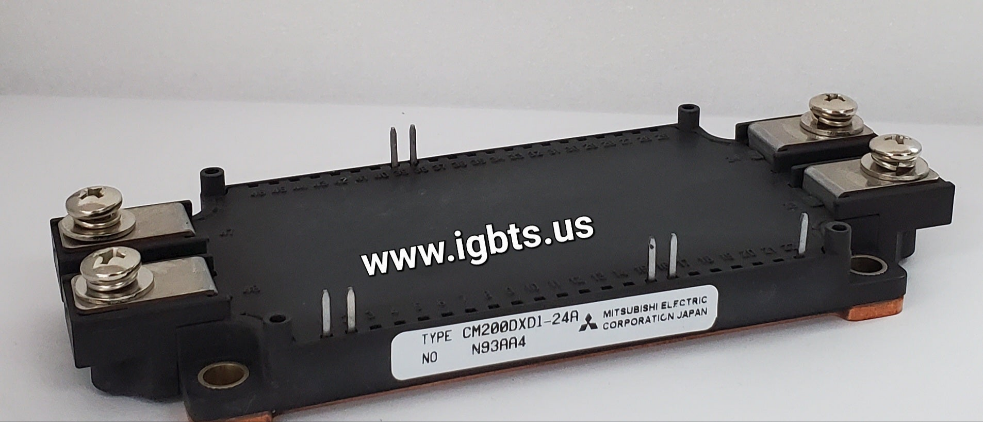

The CM200DXD1-24A is a Mitsubishi Electric IGBT module rated for 200A continuous collector current and 1200V collector-emitter voltage. Built on Mitsubishi's proven dual-in-line power package platform, this module integrates high-speed IGBT chips with co-packaged freewheeling diodes, delivering efficient switching performance and low conduction losses. Its robust construction supports reliable operation under high thermal stress, making it a preferred solution for engineers specifying components in high-power inverter and converter topologies where uptime and thermal stability are non-negotiable requirements.

The CM200DXD1-24A sees wide deployment across industrial and commercial power electronics platforms. Typical applications include three-phase AC variable frequency drives (VFDs), regenerative motor controllers, medium-power UPS and energy storage inverters, induction heating systems, and welding power supplies. Its voltage and current class positions it squarely in the range of 75kW to 150kW drive designs, and its switching characteristics are compatible with standard gate driver ICs operating at 15V gate bias. Field engineers also rely on it for one-to-one replacement of failed modules in existing installed equipment.

Quick Reference: CM200DXD1-24A

Key Features of the CM200DXD1-24A:

• 1200V VCES and 200A IC rating supports high-power three-phase inverter bridge configurations in the 75–150kW range
• Low VCE(sat) minimizes conduction losses and reduces thermal load on heatsink assemblies during continuous operation
• Integrated fast-recovery freewheeling diodes eliminate external diode sourcing and simplify PCB and busbar layout
• Short-circuit withstand capability provides a defined protection window compatible with standard desaturation detection gate driver circuits
• Isolated baseplate construction rated for high-voltage isolation between switching elements and heatsink, simplifying thermal interface design in grounded chassis systems
• Compatible with Mitsubishi's standard DIP power module footprint, enabling direct substitution in existing drive platforms without mechanical redesign

The CM200DXD1-24A carries a published factory lead time of 34 weeks from Mitsubishi Electric, a reality that can halt production lines or stall critical equipment repairs for months. Supply chain disruptions in the IGBT segment have made long lead times the norm rather than the exception for 1200V class modules. ATI Accurate Technology stocks hard-to-find and long-lead-time IGBTs precisely to address this gap. Whether you are managing a planned maintenance schedule, responding to an unplanned failure, or building safety stock for a fleet of drives, having an immediate-ship source eliminates the schedule risk that factory lead times create.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules including obsolete and allocated parts. Orders placed before 5PM EST ship same day. For pricing, availability confirmation, and volume discount inquiries, contact ATI at 239-734-7566 or sales@igbts.us. Volume pricing is available for OEMs, service centers, and MRO procurement teams.
