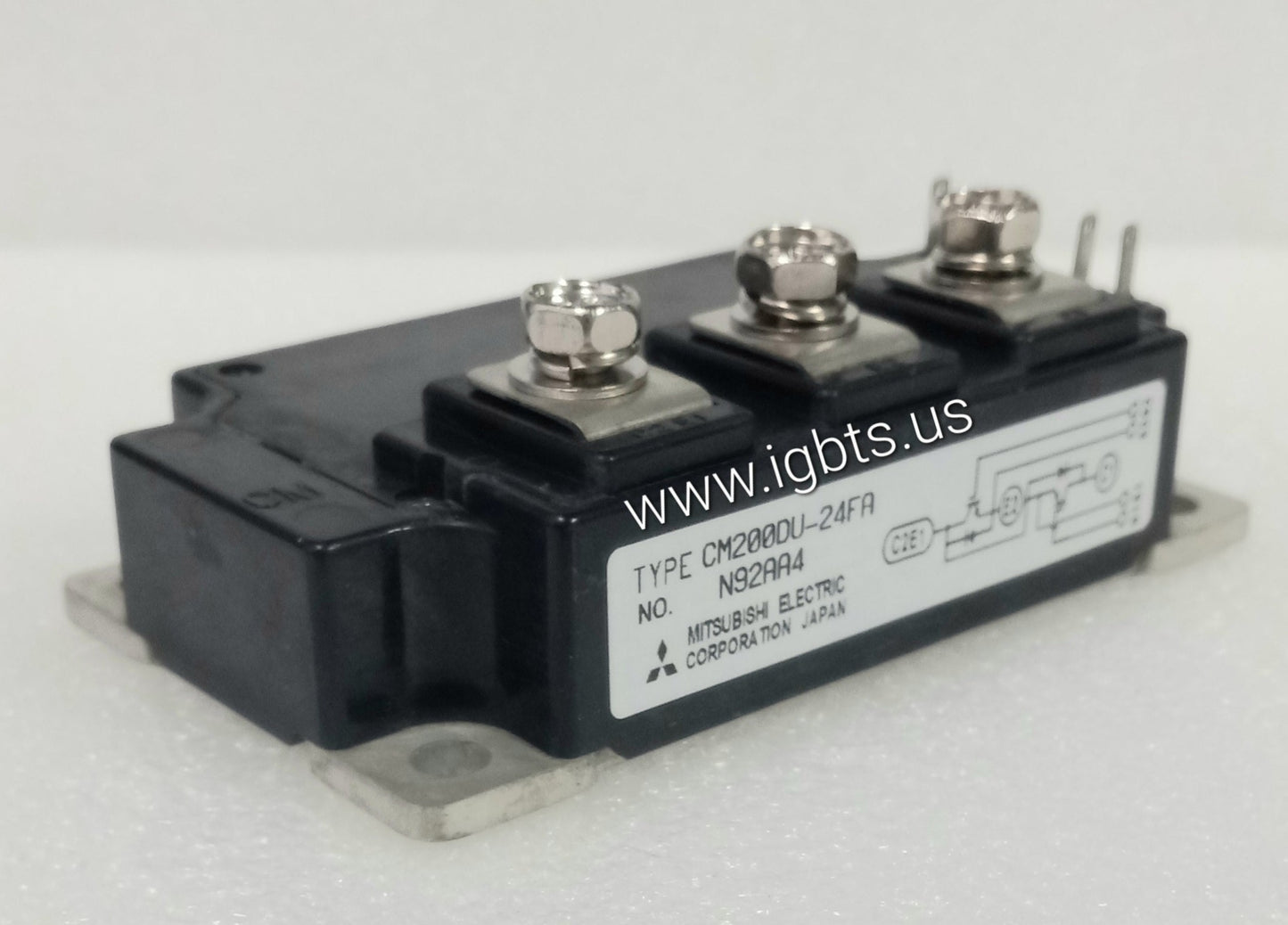

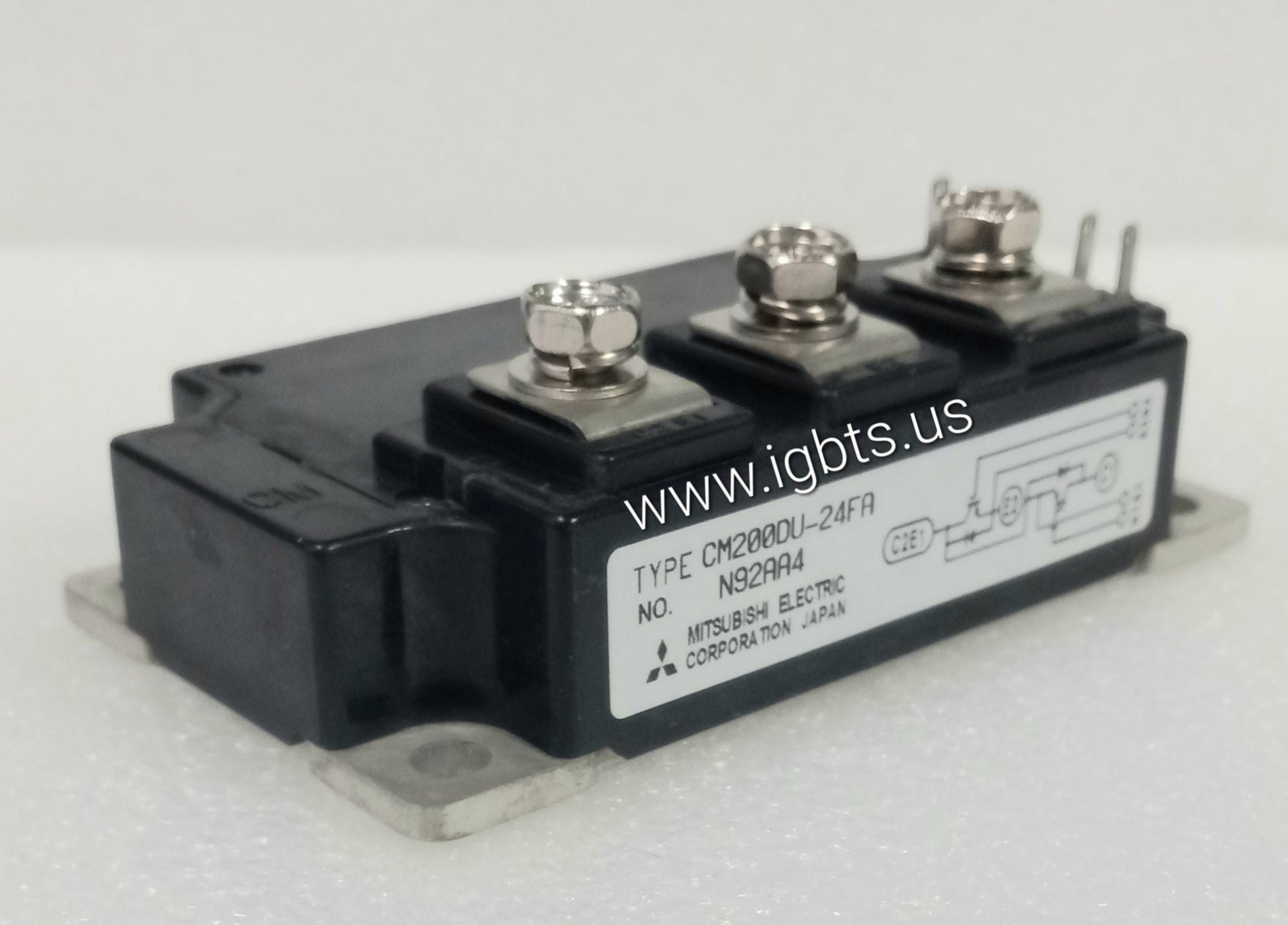

The Mitsubishi CM200DU-24FA is a 200A, 1200V dual (2-in-1) IGBT module engineered for high-frequency switching in industrial power electronics. Based on Mitsubishi's mature and field-proven FA-series package, this module integrates two IGBT chips with freewheeling diodes in a single isolated base package, reducing system complexity and improving thermal performance. Its low collector-emitter saturation voltage (V_CE(sat)) minimizes conduction losses, while its defined short-circuit rating supports reliable operation in fault-prone industrial environments. The CM200DU-24FA is a drop-in solution for OEM designs requiring a compact, high-performance 1200V IGBT half-bridge.

The CM200DU-24FA is widely deployed in AC variable-speed motor drives, industrial inverters, UPS and energy storage systems, induction heating equipment, and servo drive platforms. Its 1200V blocking voltage and 200A continuous current rating make it a workhorse for three-phase drive topologies in the 75–150kW range. Welding inverters, traction auxiliaries, and solar string inverters also utilize this module where thermal cycling endurance and switching efficiency are critical. Maintenance engineers replacing failed modules in legacy drive platforms will find the CM200DU-24FA a direct, form-fit-function substitute with no PCB or gate drive redesign required.

Quick Reference: CM200DU-24FA

Key Features of the CM200DU-24FA:

• 1200V V_CES collector-emitter blocking voltage suited for 690VAC line-side applications
• 200A I_C continuous collector current with defined 400A peak pulse rating
• Low V_CE(sat) for reduced conduction losses and improved inverter efficiency at full load
• Integrated anti-parallel freewheeling diodes optimized for soft-recovery switching characteristics
• Isolated copper base plate for direct heatsink mounting with low thermal resistance junction-to-case
• Short-circuit withstand time rating enabling reliable protection coordination with gate drive fault logic

With a factory lead time of 39 weeks for new production, the CM200DU-24FA presents a serious procurement challenge for facilities managing unplanned downtime or time-sensitive MRO rebuilds. Mitsubishi's FA-series modules have reached end-of-life status in some product lines, making distributor stock the only practical near-term source. ATI Accurate Technology maintains inventory of hard-to-find, long-lead-time, and obsolete IGBT modules precisely for these scenarios. Procuring from ATI eliminates the 9-month factory queue and keeps critical production equipment running without costly redesigns or substitute topology engineering.

ATI Accurate Technology is headquartered in Palmetto, Florida, and specializes in power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Orders placed before 5PM EST ship same day. Whether you need a single replacement module or volume quantities for a fleet rebuild, ATI offers competitive pricing and responsive service. Contact our team today at 239-734-7566 or sales@igbts.us for availability confirmation and volume pricing.
