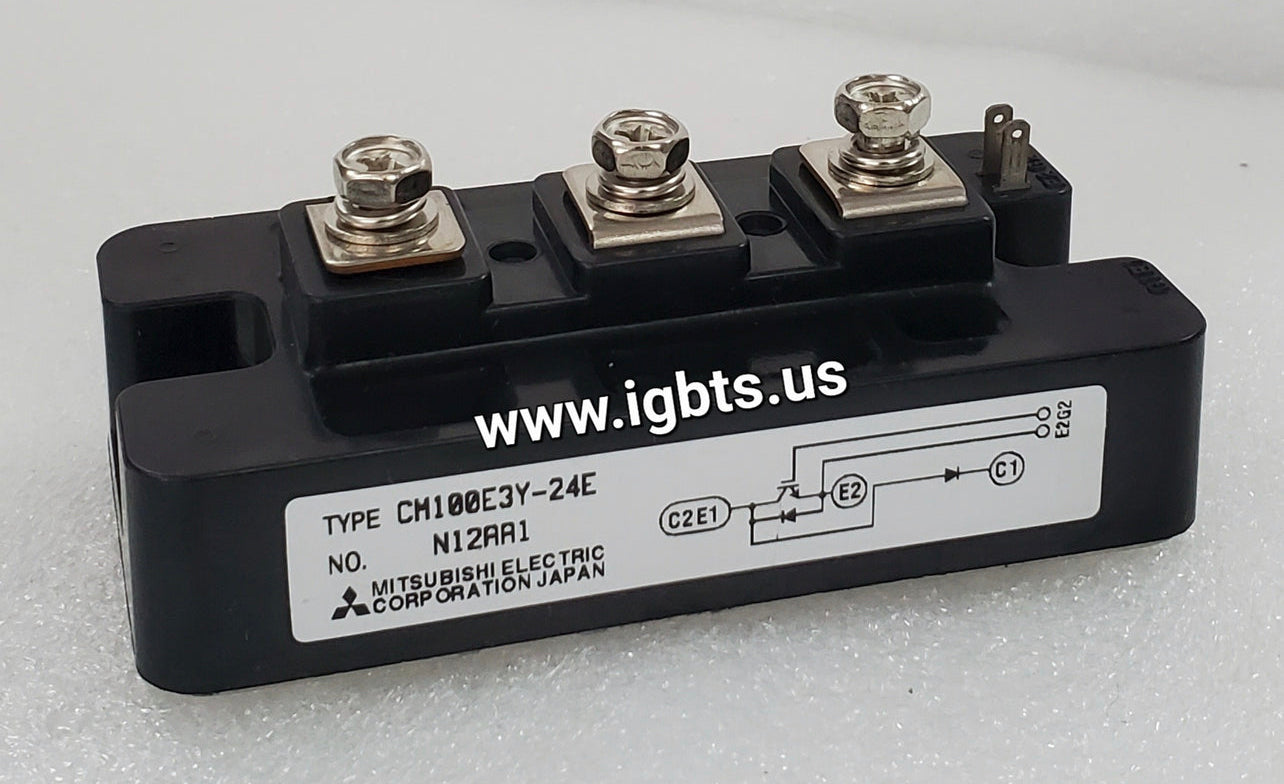

The Mitsubishi CM100E3Y-24E is a 100A, 1200V IGBT module engineered for high-frequency switching applications where thermal stability, switching speed, and rugged construction are critical. Part of Mitsubishi's proven E3Y series, this module integrates IGBT chips with a freewheeling diode in a compact, isolated base package. It is optimized for use in hard-switching topologies and delivers consistent gate-drive compatibility, low collector-emitter saturation voltage, and reliable short-circuit withstand capability that power electronics engineers depend on in continuous-duty industrial environments.

The CM100E3Y-24E is widely deployed in industrial AC motor drives, servo amplifiers, UPS systems, induction heating equipment, and three-phase inverter stages in manufacturing automation. Its 1200V blocking capability provides the necessary voltage headroom for 480V and 690V AC bus systems, while the 100A current rating supports mid-range power stages in the 30kW to 75kW range. Applications in elevators, CNC machine tool drives, solar inverters, and regenerative braking systems all benefit from the switching characteristics and thermal performance this module provides.

Quick Reference: CM100E3Y-24E

Key Features of the CM100E3Y-24E:

• 1200V VCES and 100A IC continuous collector current rating suitable for mid-power industrial inverter stages
• Low VCE(sat) characteristics reduce conduction losses and heat dissipation in high-duty-cycle switching applications
• Integrated freewheeling diodes optimized for co-packaged IGBT switching transients, reducing external diode requirements
• Isolated copper baseplate construction ensures reliable thermal interface to heatsink and electrical isolation from the mounting surface
• Short-circuit withstand capability supports protection coordination in drive systems using standard gate-drive fault logic
• Gate threshold and drive voltage compatibility with standard IGBT gate driver ICs operating at +15V / -8V or -15V split supply

With a current factory lead time of 35 weeks from Mitsubishi, procurement teams managing MRO inventory, equipment repairs, or production line uptime cannot afford to wait on new factory orders. The CM100E3Y-24E has an established service history in legacy and current-generation drive platforms, meaning field failures and end-of-life equipment rebuilds create persistent demand. ATI Accurate Technology maintains stock of hard-to-find and long-lead-time IGBT modules precisely to bridge this gap — keeping your equipment running without costly downtime or extended procurement delays.

ATI Accurate Technology is located in Palmetto, Florida and specializes in power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Orders placed before 5PM EST ship same day. For volume pricing, cross-reference assistance, or immediate availability confirmation on the CM100E3Y-24E, contact our team directly at 239-734-7566 or sales@igbts.us. We support maintenance engineers and procurement professionals who need the right part fast.
