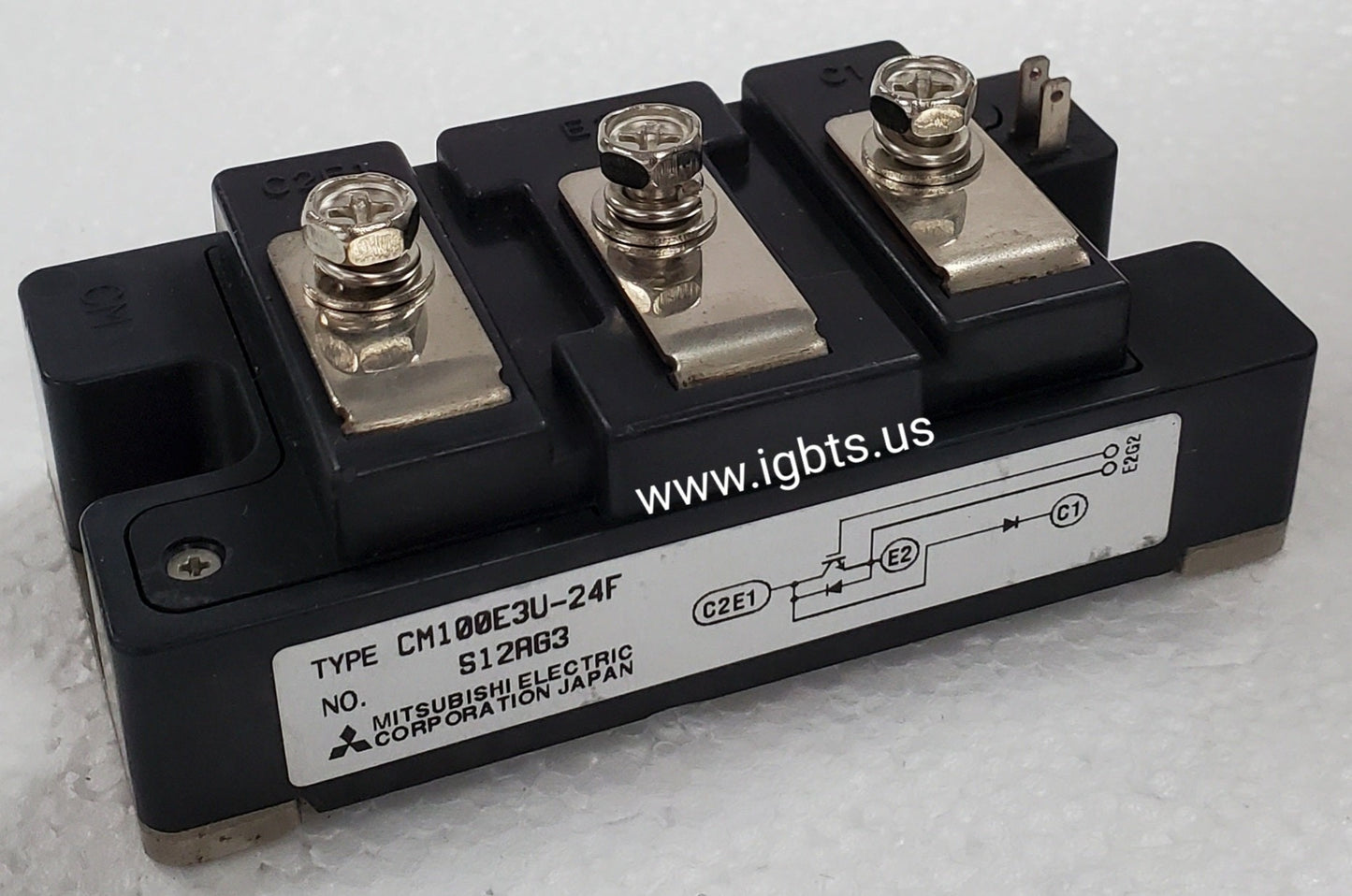

The Mitsubishi CM100E3U-24F is a 1200V, 100A IGBT module engineered for high-frequency switching and robust thermal performance in industrial power conversion systems. Part of Mitsubishi's proven U-series IGBT platform, this module integrates fast-switching IGBT chips with freewheeling diodes in a compact, isolated baseplate package. Its low saturation voltage and optimized gate characteristics make it a preferred choice for engineers designing or maintaining systems that demand efficiency, reliability, and switching precision across a wide operating range.

The CM100E3U-24F sees broad deployment across industrial variable frequency drives (VFDs), AC servo amplifiers, uninterruptible power supplies (UPS), induction heating equipment, and three-phase inverter systems. Its 1200V blocking voltage and 100A continuous current rating position it squarely in the mid-power range where many industrial motor control and energy conversion topologies operate. Retrofit and repair applications are equally common, making reliable access to this module critical for minimizing system downtime in production and process environments.

Quick Reference: CM100E3U-24F

Key Features of the CM100E3U-24F:

• 1200V collector-emitter voltage (VCES) with 100A continuous collector current rating for mid-power industrial applications
• Low VCE(sat) characteristics reduce conduction losses and improve overall inverter efficiency across the load range
• Integrated freewheeling diodes with optimized reverse recovery characteristics for reduced switching losses in PWM inverter topologies
• Isolated copper baseplate construction enables direct mounting to heatsinks with electrical isolation, simplifying thermal management design
• U-series platform gate drive compatibility allows straightforward drop-in replacement within existing Mitsubishi-based drive architectures
• Designed for operating junction temperatures up to 150°C, supporting reliable long-term operation in thermally demanding enclosures

With a factory lead time of 43 weeks on new production, procurement teams relying solely on the Mitsubishi supply chain face significant exposure to system downtime and project delays. Whether you're supporting emergency maintenance on a critical drive system, managing an MRO inventory, or fulfilling an OEM build schedule, waiting nearly a year for components is not an operational option. ATI Accurate Technology maintains stock of hard-to-find and long-lead-time IGBT modules precisely for these situations, offering verified new OEM parts ready for immediate deployment.

ATI Accurate Technology is located in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or urgent sourcing needs. Call 239-734-7566 or email sales@igbts.us.
