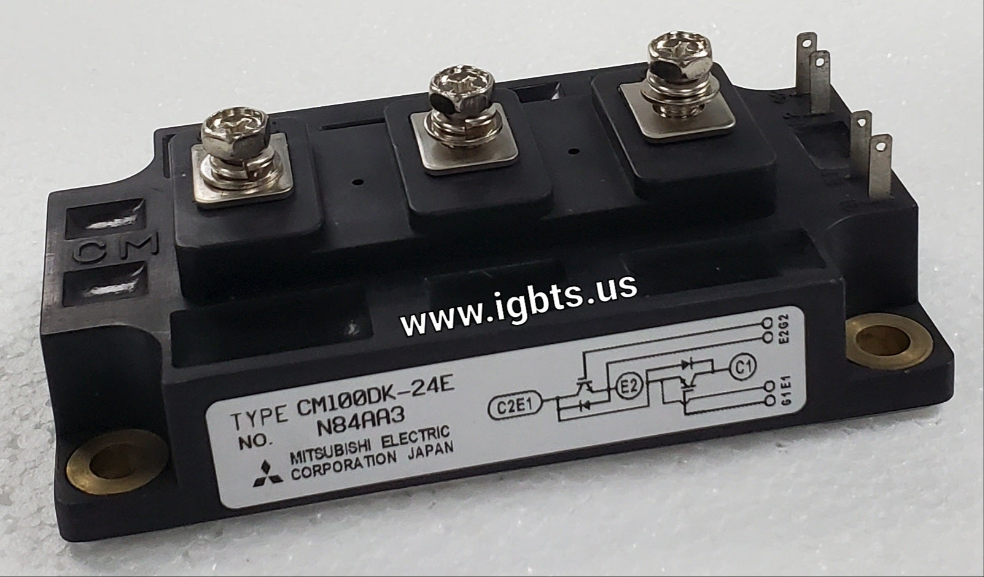

The Mitsubishi CM100DK-24E is a 100A, 1200V IGBT module engineered for robust performance in high-power switching circuits. Built on Mitsubishi's proven IGBT technology, this module integrates fast-recovery freewheeling diodes and is optimized for low conduction losses and controlled switching characteristics. The isolated base plate and compact package design simplify thermal management and mechanical integration into standard power converter assemblies, making it a dependable choice for engineers specifying discrete power switching solutions in both new designs and field replacements.

The CM100DK-24E sees broad deployment across industrial motor drives, AC servo amplifiers, UPS systems, induction heating equipment, and variable frequency drives. Its 1200V blocking voltage and 100A continuous current rating make it well-suited for three-phase inverter stages operating from standard 480V or 600V industrial supply rails. The module is also found in welding inverters, solar inverters, and traction auxiliary power supplies where reliable gate-controlled switching under heavy inductive loads is a fundamental requirement for system uptime and efficiency.

Quick Reference: CM100DK-24E

Key Features of the CM100DK-24E:

• 1200V collector-emitter voltage (VCES) with 100A continuous collector current rating for high-power inverter stages
• Low VCE(sat) reduces conduction losses and heat generation at full load, extending thermal headroom in tightly packaged drives
• Integrated fast-recovery freewheeling diodes eliminate the need for external anti-parallel diodes and simplify PCB layout
• Isolated copper base plate provides electrical isolation between the switching elements and heatsink, supporting standard DBC thermal interface designs
• Optimized gate charge and switching speed characteristics balance EMI performance with switching loss across a wide frequency range
• Industry-standard module footprint ensures drop-in compatibility with existing drive platforms and common heatsink assemblies

With a factory lead time of 38 weeks on new production orders, the CM100DK-24E presents a serious procurement challenge for maintenance teams managing unplanned downtime or engineers running production builds. Mitsubishi IGBT modules of this class are frequently discontinued or placed on allocation, leaving buyers with long waits through standard distribution channels. ATI Accurate Technology maintains independent stock of hard-to-find and long-lead-time IGBT modules precisely for these situations, providing a reliable source when the factory pipeline cannot meet your timeline. Verified new OEM parts are available for immediate release.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders received before 5PM EST. Whether you need a single replacement module or volume quantities for an OEM build, ATI offers competitive pricing and responsive service. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm stock, request a quote, or discuss volume pricing on the CM100DK-24E and related Mitsubishi IGBT modules.
