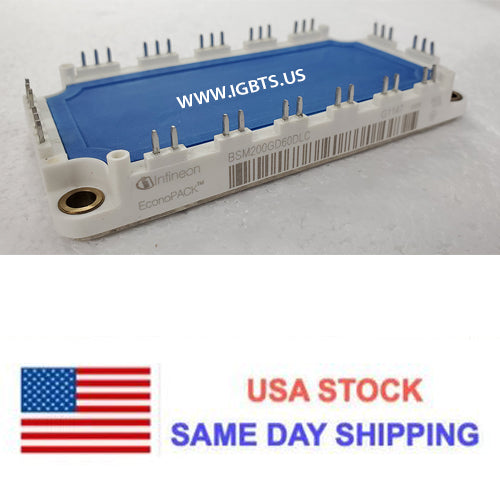

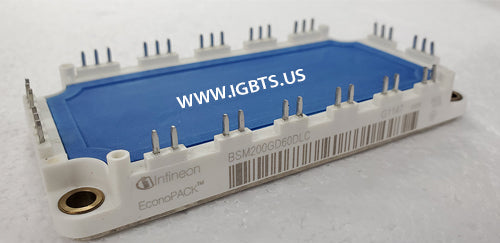

The Infineon BSM200GD60DLC is a 200A, 600V IGBT module configured in a dual-pack (half-bridge) topology, incorporating co-pack freewheeling diodes optimized for low conduction and switching losses. Designed to the IGBT4 trench-gate technology platform, this module delivers a strong balance of switching speed, thermal performance, and ruggedness. Its low V_CE(sat) and tight parameter distribution make it well suited to applications where thermal budgets are tight and switching frequency demands are high. The DLC package provides a standardized footprint compatible with common heatsink and busbar configurations used throughout industrial power system design.

The BSM200GD60DLC sees wide deployment in AC motor drives for pumps, fans, compressors, and CNC machinery, as well as in industrial UPS systems, solar inverters, induction heating equipment, and medium-power traction converters. Its 600V blocking voltage targets three-phase 400V AC bus architectures that dominate European and international industrial installations. The integrated freewheeling diodes reduce external component count and simplify gate drive and snubber design, making this module a practical choice for both OEM power stage design and field replacement in existing drive platforms.

Quick Reference: BSM200GD60DLC

Key Features of the BSM200GD60DLC:

• 200A continuous collector current with 600V V_CES rating in a dual half-bridge configuration
• Infineon IGBT4 trench-gate technology for reduced V_CE(sat) and optimized switching losses across the operating range
• Integrated co-pack freewheeling diodes with soft-recovery characteristics to minimize EMI and voltage overshoot
• Isolated copper baseplate construction for efficient thermal transfer to external heatsink assemblies
• Industry-standard DLC module footprint enabling direct replacement in existing drive and inverter designs without mechanical redesign
• Rated for operating junction temperatures up to 150°C, supporting high-ambient industrial environments

With a factory lead time of 99 weeks on new production orders, the BSM200GD60DLC represents exactly the type of long-lead-time component that can halt a production line or delay a critical repair. Procurement teams managing MRO inventory, spares programs, or emergency maintenance events cannot afford to wait nearly two years for factory fulfillment. ATI Accurate Technology maintains stock of hard-to-find and long-lead-time Infineon IGBT modules specifically to close this gap—providing immediate availability when the supply chain cannot. Verify current stock levels before your next scheduled or unplanned outage.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules including obsolete and allocated parts. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or urgent sourcing needs: 239-734-7566 | sales@igbts.us.
